Research on mine wireless signal detection method based on dual path network

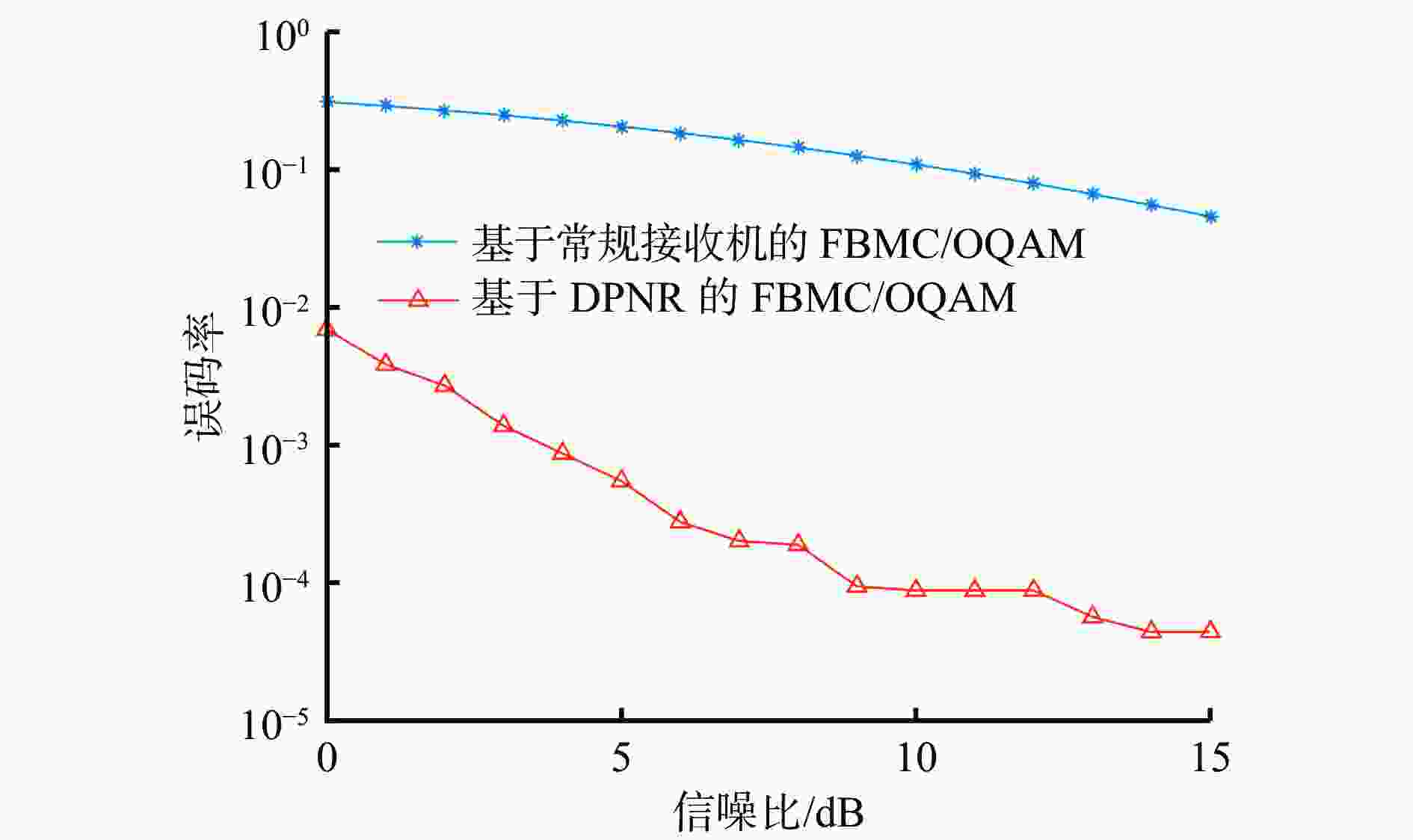

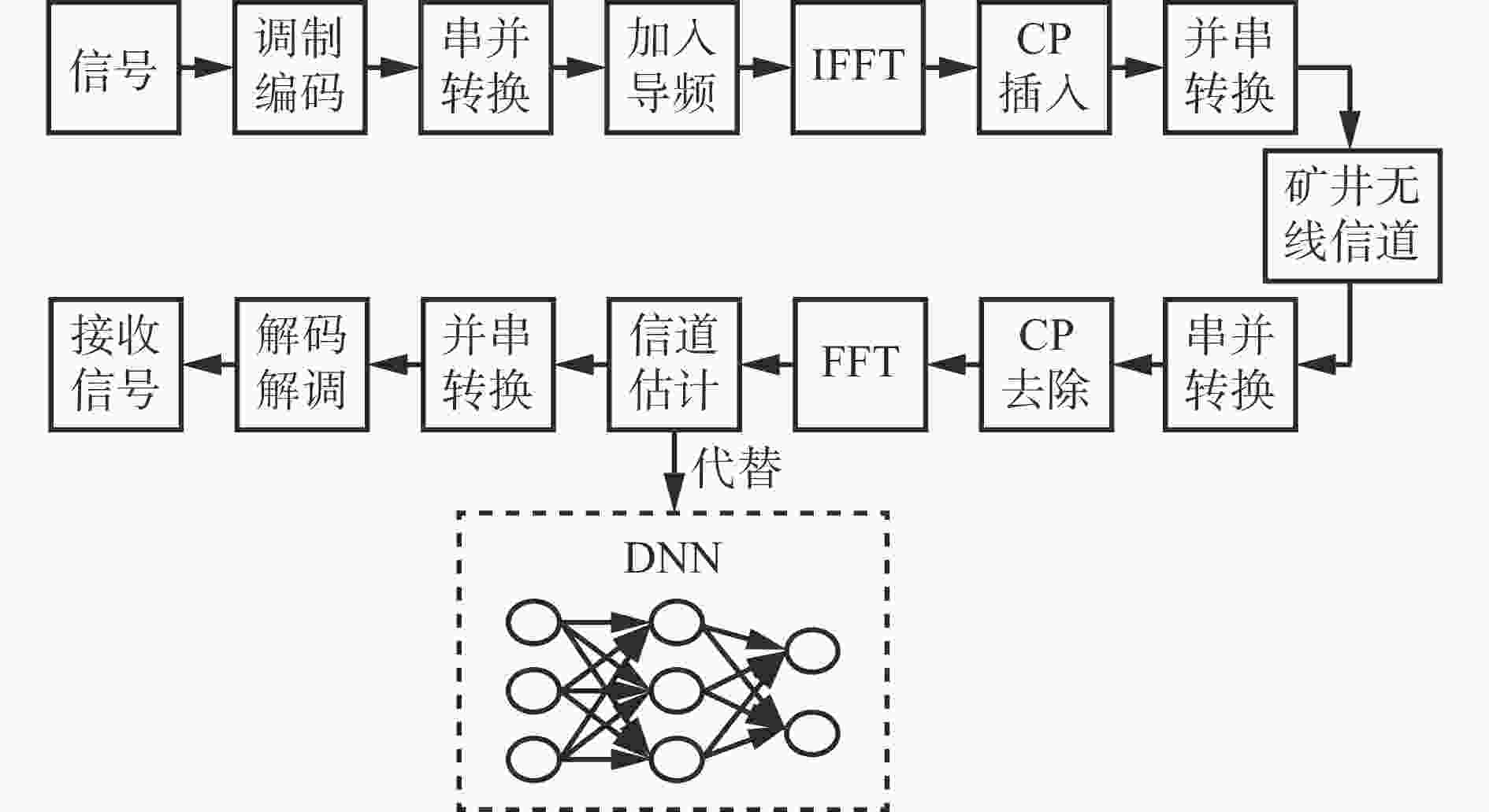

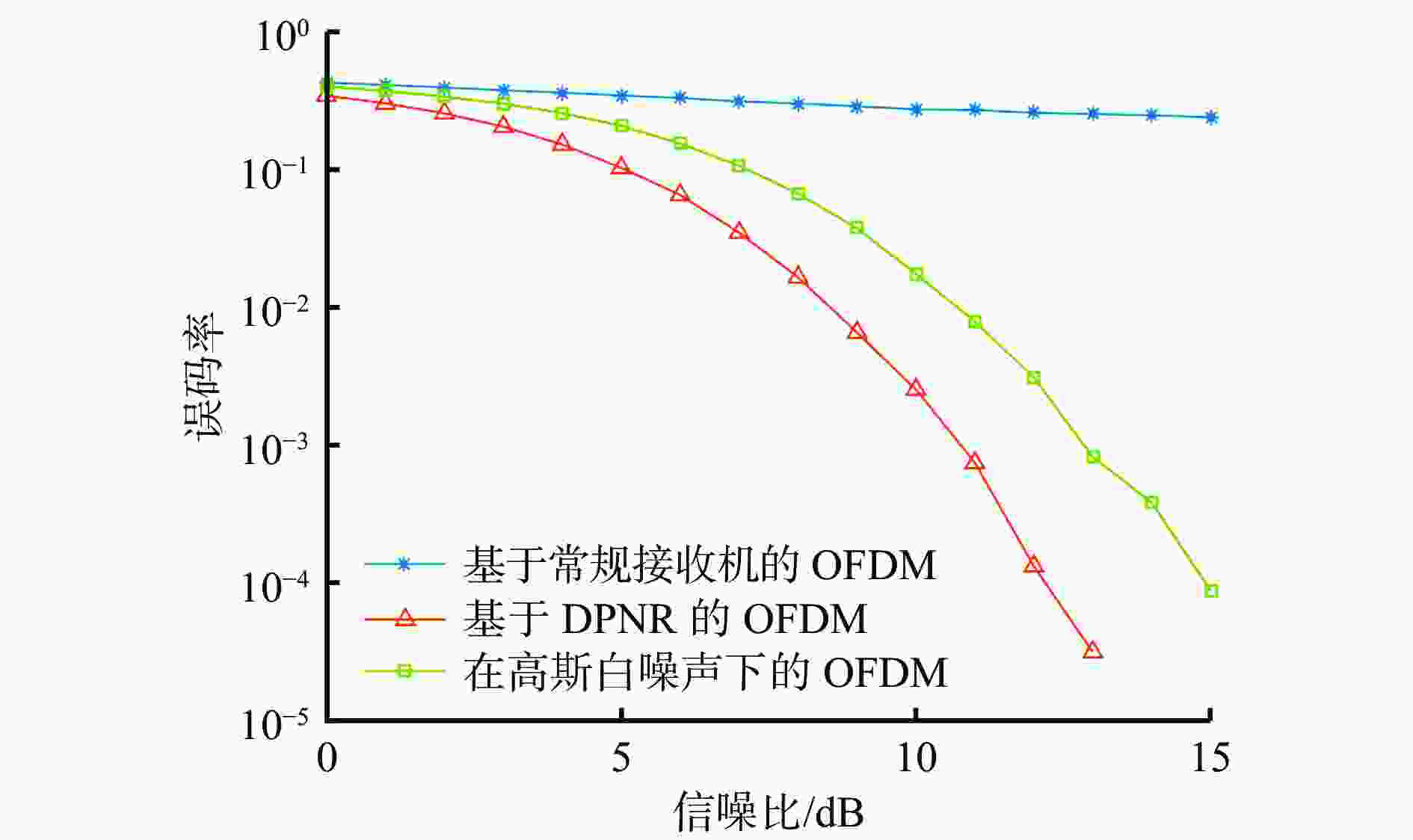

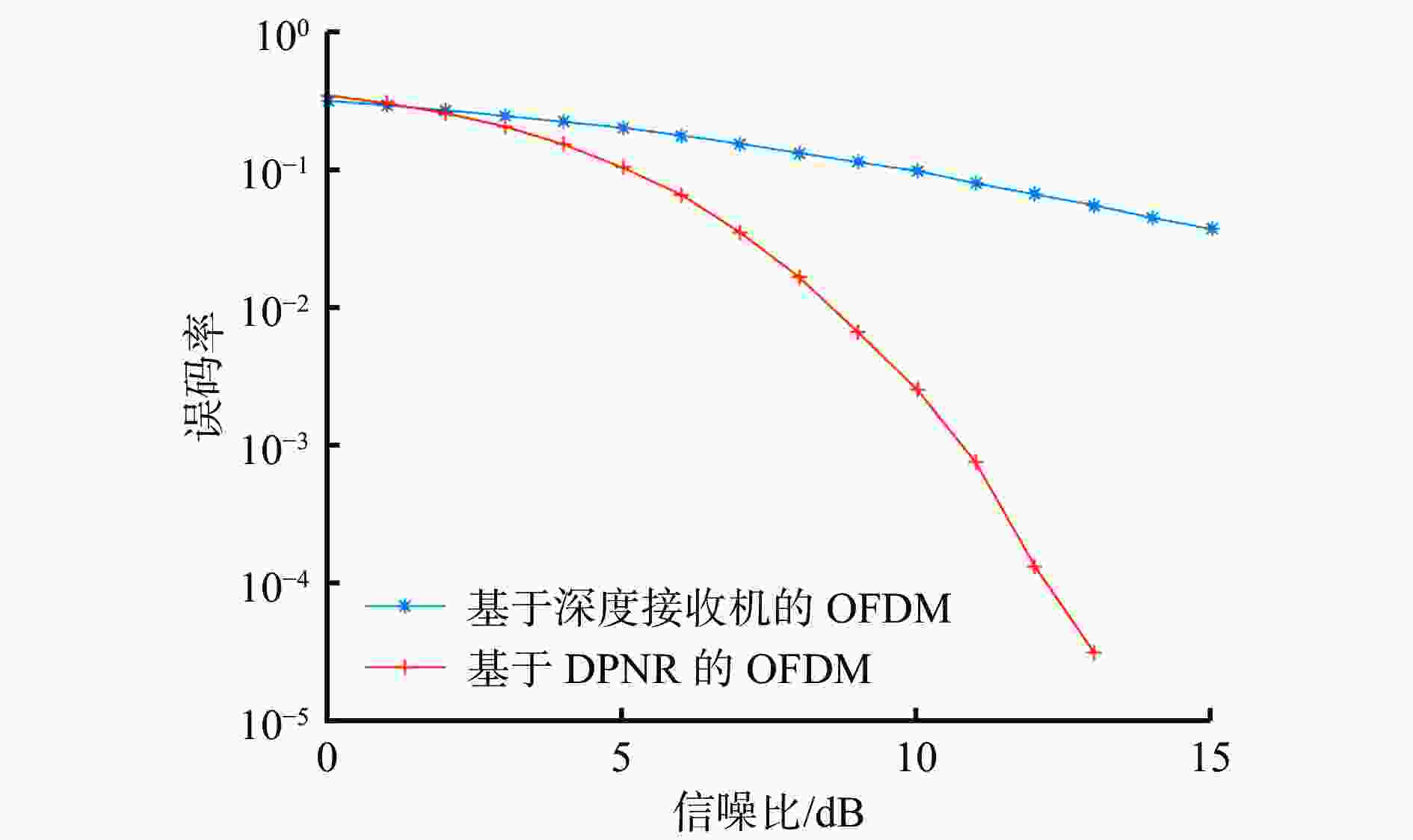

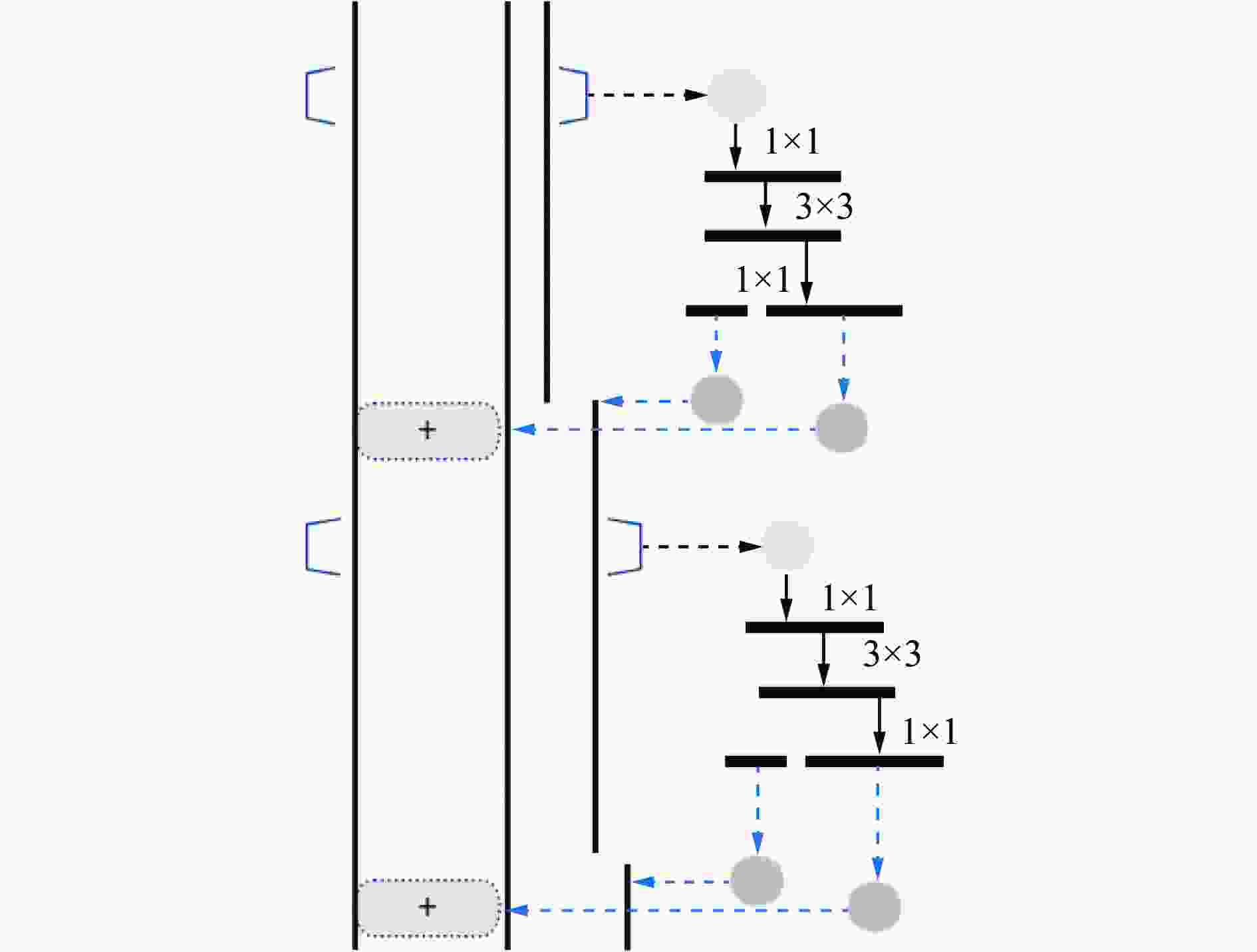

摘要: 目前针对矿井无线信号检测的研究大多只考虑了比较理想的加性高斯白噪声信道和瑞利衰落信道，且信号检测误码率高，网络结构复杂。针对上述问题，提出一种基于双路径网络（DPN）的矿井无线信号检测方法，采用双路网络接收机（DPNR）优化正交频分复用（OFDM）接收端的整体性能，解决常规接收机的误差累积问题。首先采用残差（Res）块的shortcut对浅层特征进行一次卷积，将经过一次卷积后的特征图与经过多次卷积后的特征图相加。然后将密集（Dense）块浅层重复利用，并进行Dense块的卷积计算，得到卷积计算后的特征图。最后将两者的特征图融合成新的特征图，在牺牲较少复杂度的情况下，提取更多的特征，从而提高检测性能。 实验结果表明：① 在OFDM系统中，DPNR的误码率比常规接收机低，在信噪比为13时，误码率为零；在信噪比大于7 时，DPNR的误码率较矿井环境下的常规接收机降低1个数量级以上；在信噪比大于11时，DPNR的误码率较加性高斯白噪声下的常规接收机降低 1个数量级以上。② 在通信系统滤波器组多载波/偏置正交幅度调制中，DPNR的误码率较常规接收机的降低2个数量级以上，说明其具有较好的鲁棒性。③ 随着信噪比的增加，DPNR和残差神经网络（ResNet）接收机的误码率较密集连接卷积网络（DenseNet）接收机低，且DPNR的误码率在最后阶段即信噪比大于13时更低。④ 在较高信噪比情况下，DPNR的误码率远远低于深度接收机，在信噪比大于8时，DPNR的误码率较深度接收机降低1个数量级以上。Abstract: At present, most of the research on mine wireless signal detection only considers the ideal additive Gaussian white noise channel and Rayleigh fading channel. The signal detection has high bit error rate and complex network structure. In order to solve the above problems, a mine wireless signal detection method based on dual path network (DPN) is proposed. The method uses dual path network receiver (DPNR) to optimize the overall performance of the orthogonal frequency division multiplexing (OFDM) receiver and solve the problem of error accumulation in conventional receivers. Firstly, the residual (Res) block's shortcut is used to perform a convolution of shallow features, and the feature map after one convolution is added to the feature map after multiple convolutions. Secondly, the shallow layer of the Dense block is reused. The convolution calculation of the Dense block is performed to obtain the feature map after the convolution calculation. Finally, the feature maps of the two are fused into a new feature map, which extracts more features at the expense of less complexity, thereby improving detection performance. The experimental results show the following points. ① In OFDM systems, the bit error rate of DPNR is lower than that of conventional receivers. When the signal-to-noise ratio is 13, the bit error rate is zero. When the signal-to-noise ratio is greater than 7, the error rate of DPNR is reduced by more than one order of magnitude compared to conventional receivers in mine environments. When the signal-to-noise ratio is greater than 11, the bit error rate of DPNR is more than one order of magnitude lower than that of conventional receivers under additive Gaussian white noise. ② In the multi-carrier/offset orthogonal amplitude modulation of communication system filter banks, the error rate of DPNR is reduced by more than two orders of magnitude compared to conventional receivers, indicating its good robustness. ③ As the signal-to-noise ratio increases, the bit error rate of DPNR and residual neural network (ResNet) receivers is lower than that of densely connected convolutional networks (DenseNet) receivers. The bit error rate of DPNR is lower in the final stage when the signal-to-noise ratio is greater than 13. ④ At higher signal-to-noise ratios, the bit error rate of DPNR is much lower than that of deep receivers. When the signal-to-noise ratio is greater than 8, the bit error rate of DPNR is reduced by more than one order of magnitude compared to deep receivers.

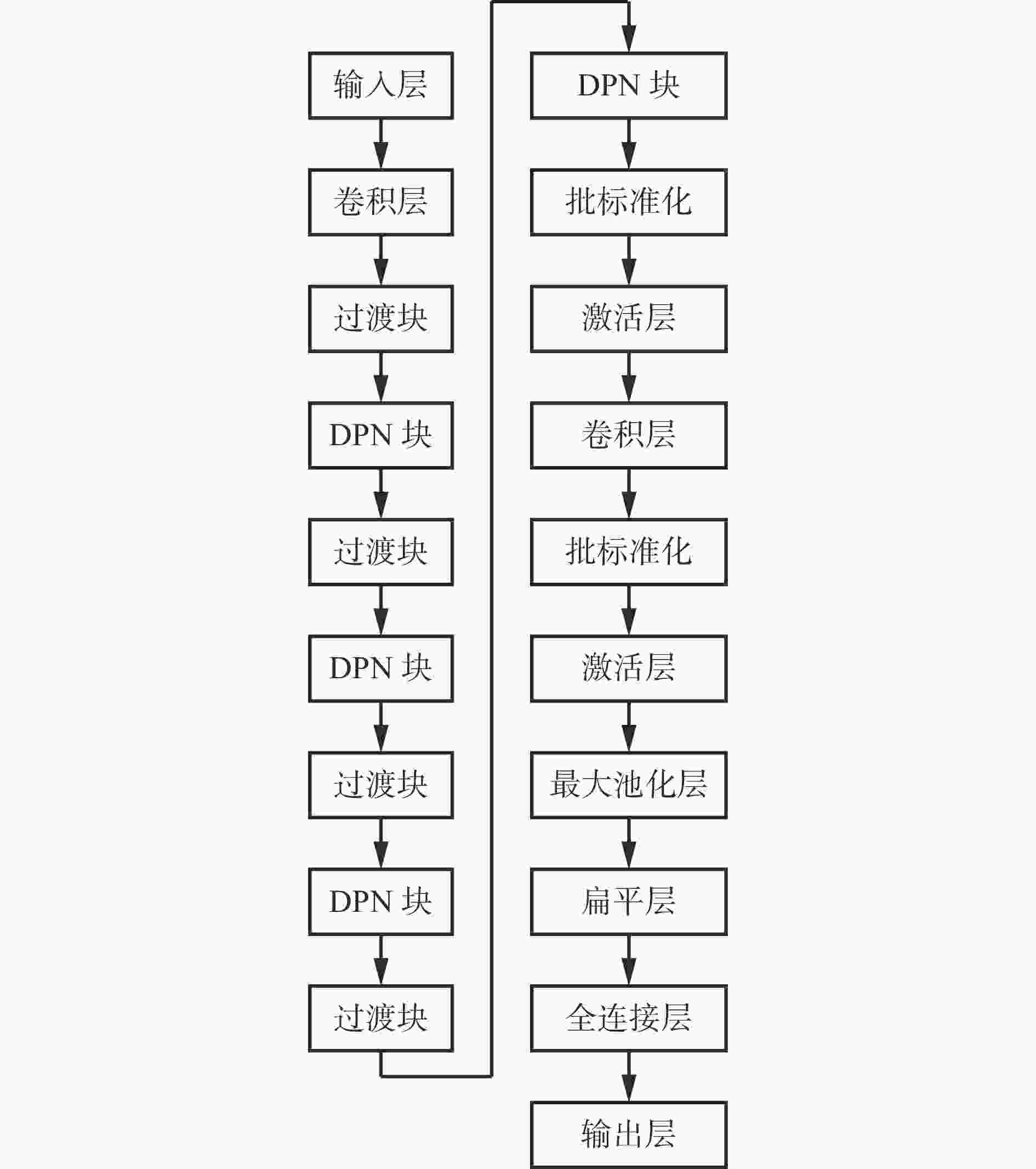

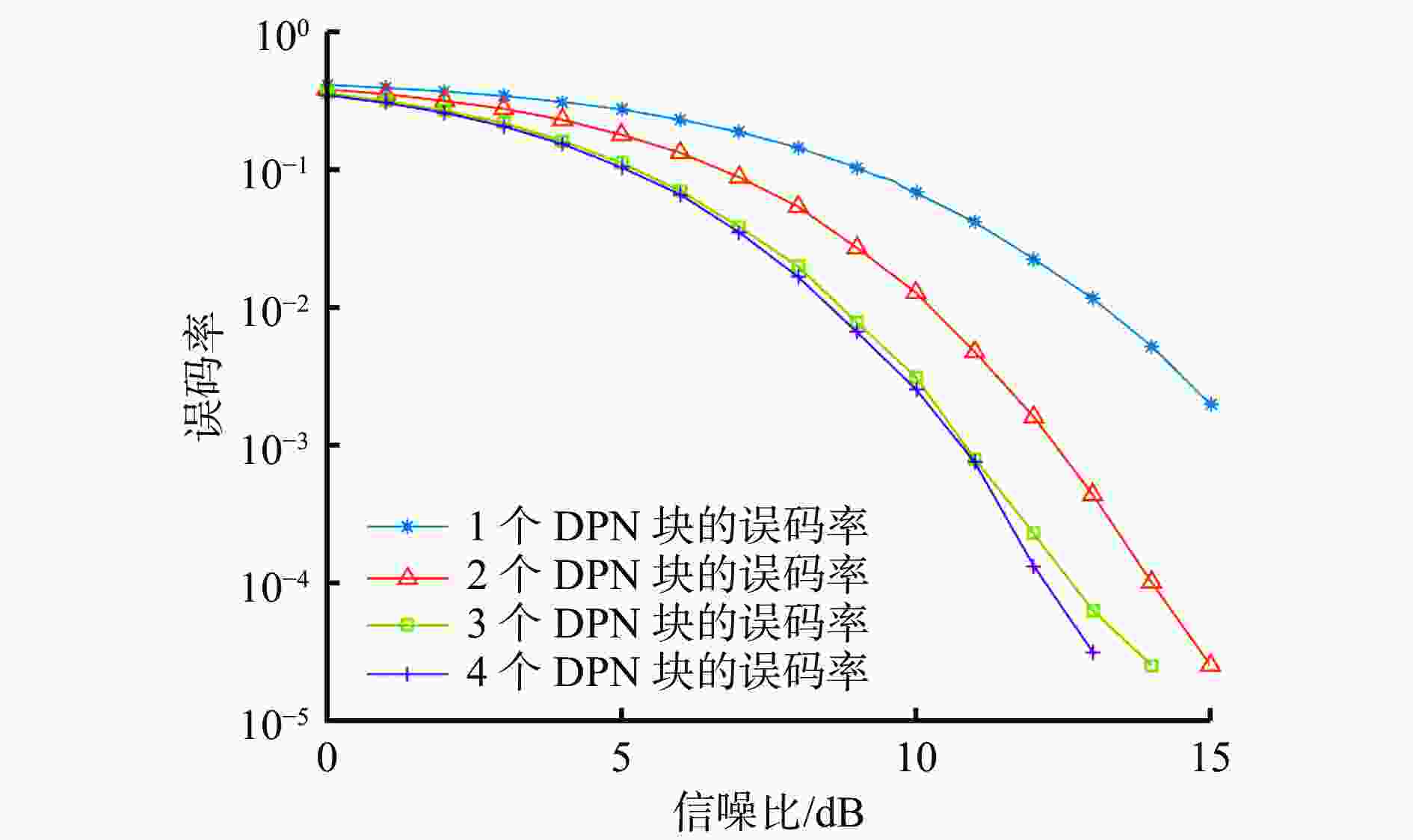

表 1 DPNR网络节点的卷积设置
Table 1. Convolution settings for the DPNR network nodes
网络块 输出 卷积设置 Cov1 (None,160, 64) [31,64]×1 过渡块 (None,79,128) [5,128]×1 DPN块 (None,79,320) [1,128]×1,[5,128]×1 过渡块 (None,39,64) [5,64]×1 DPN块 (None,39,224) [1,128]×1,[5,128]×2 过渡块 (None,19,64) [5,64]×1 DPN块 (None,19,288) [1,128]×1,[5,128]×3 过渡块 (None,9,64) [5,64]×1 DPN块 (None,9,224) [1,128]×1,[5,128]×2 Cov (None,9,150) [5,150]×1 全连接层 (None,9,150) −
表 2 OFDM参数的设置
Table 2. OFDM parameter settings

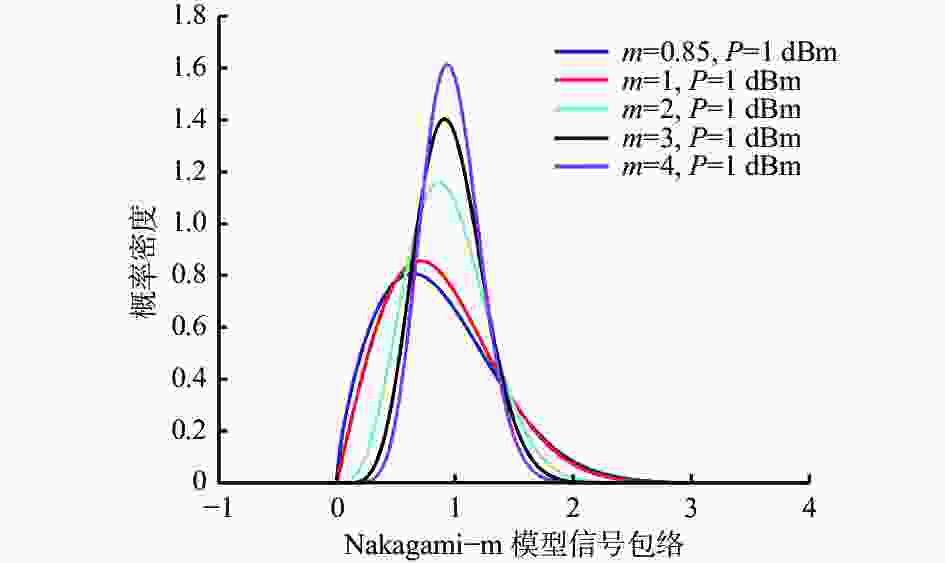

参数 值 FFT点数 64 CP长度/chip 16 子载波 52 调制 QPSK 信道 Nakagam−m+AWGN
表 3 网络架构初始参数
Table 3. Initial parameters of the network architecture
参数 值 优化器 Adam 学习率 10−3 批大小 256 训练次数 15 训练数据集数量 320 000 测试数据集数量 320 000
