基于CenterNet−GhostNet的选煤厂危险区域人员检测

张翼翔 林松 李雪

张翼翔,林松,李雪. 基于CenterNet−GhostNet的选煤厂危险区域人员检测[J]. 工矿自动化,2022,48(4):66-71.  doi: 10.13272/j.issn.1671-251x.2021080058
引用本文: 张翼翔,林松,李雪. 基于CenterNet−GhostNet的选煤厂危险区域人员检测[J]. 工矿自动化,2022,48(4):66-71.  doi: 10.13272/j.issn.1671-251x.2021080058
ZHANG Yixiang, LIN Song, LI Xue. Personnel detection in dangerous area of coal preparation plant based on CenterNet-GhostNet[J]. Journal of Mine Automation,2022,48(4):66-71.  doi: 10.13272/j.issn.1671-251x.2021080058
Citation: ZHANG Yixiang, LIN Song, LI Xue. Personnel detection in dangerous area of coal preparation plant based on CenterNet-GhostNet[J]. Journal of Mine Automation,2022,48(4):66-71.  doi: 10.13272/j.issn.1671-251x.2021080058

基于CenterNet−GhostNet的选煤厂危险区域人员检测

doi: 10.13272/j.issn.1671-251x.2021080058
基金项目: 国家自然科学基金资助项目(61936008)。
详细信息
    作者简介:

    张翼翔(1996—),男,山东泰安人,硕士研究生,研究方向为深度学习,E-mail:2627421136@qq.com

  • 中图分类号: TD67

Personnel detection in dangerous area of coal preparation plant based on CenterNet-GhostNet

  • 摘要: 选煤厂危险区域人员全身目标检测因粉尘、雾气干扰难以准确与生产环境背景区分,而人员头部特征相对易于辨识,且人头在监控视角下被遮挡的可能性较低,因此危险区域人员检测使用人员头部检测代替人员全身目标检测。目前基于深度学习的轻量化目标检测模型在特征提取时信息损失多,对人头目标的检测能力有限。针对该问题,提出了轻量化人员检测模型CenterNet−GhostNet。该模型以CenterNet网络为基础框架,将轻量化网络GhostNet与特征金字塔相结合作为特征提取网络,GhostNet对输入图像进行特征提取,提升网络特征表达能力,特征金字塔对GhostNet提取的不同分辨率的特征图中包含的信息进行融合,在提取高层语义特征的同时保留较多的细节信息;在较高分辨率的单个输出特征图上使用3个相互独立的卷积操作分支进行解码计算,以充分利用特征图包含的细节信息。实验结果表明:CenterNet−GhostNet模型对佩戴安全帽和未佩戴安全帽两类人头目标的检测精度分别为93.7%和91.7%,均优于通用的轻量化模型SSD−MobileNet、YOLOv4 Tiny和CenterNet−Res18;CenterNet−GhostNet模型部署在NVIDIA Jetson Nano上的单帧检测耗时为67 ms,满足选煤厂危险区域人员高精度、实时检测要求。

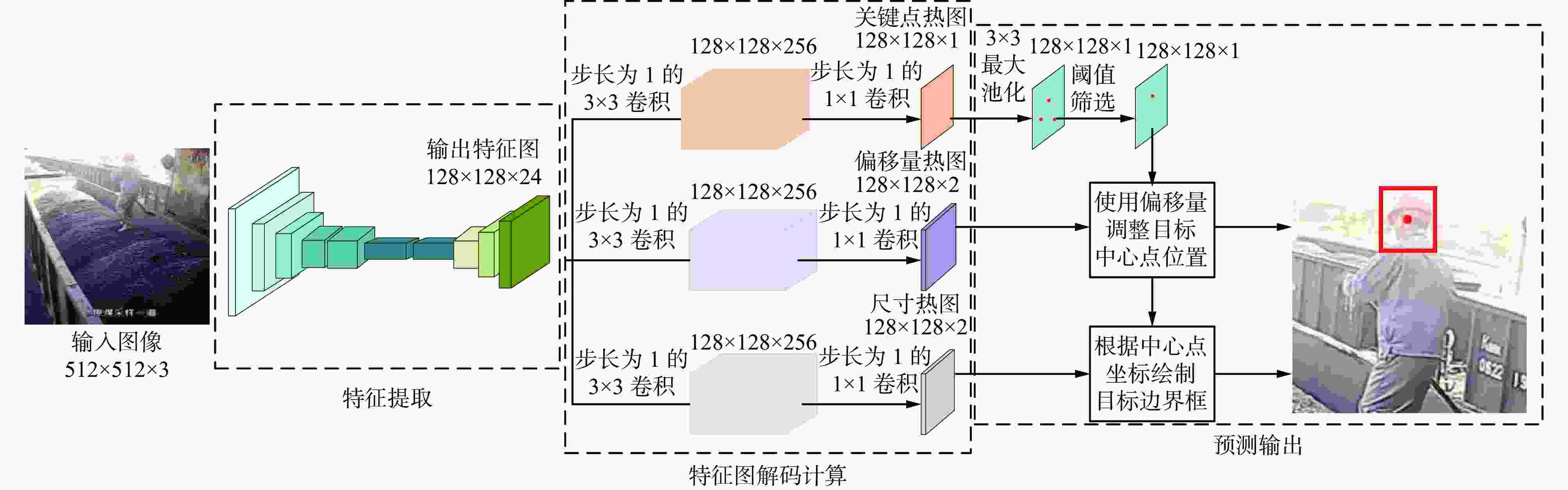

  • 图  1  CenterNet−GhostNet模型框架

    Figure  1.  Framework of CenterNet-GhostNet model

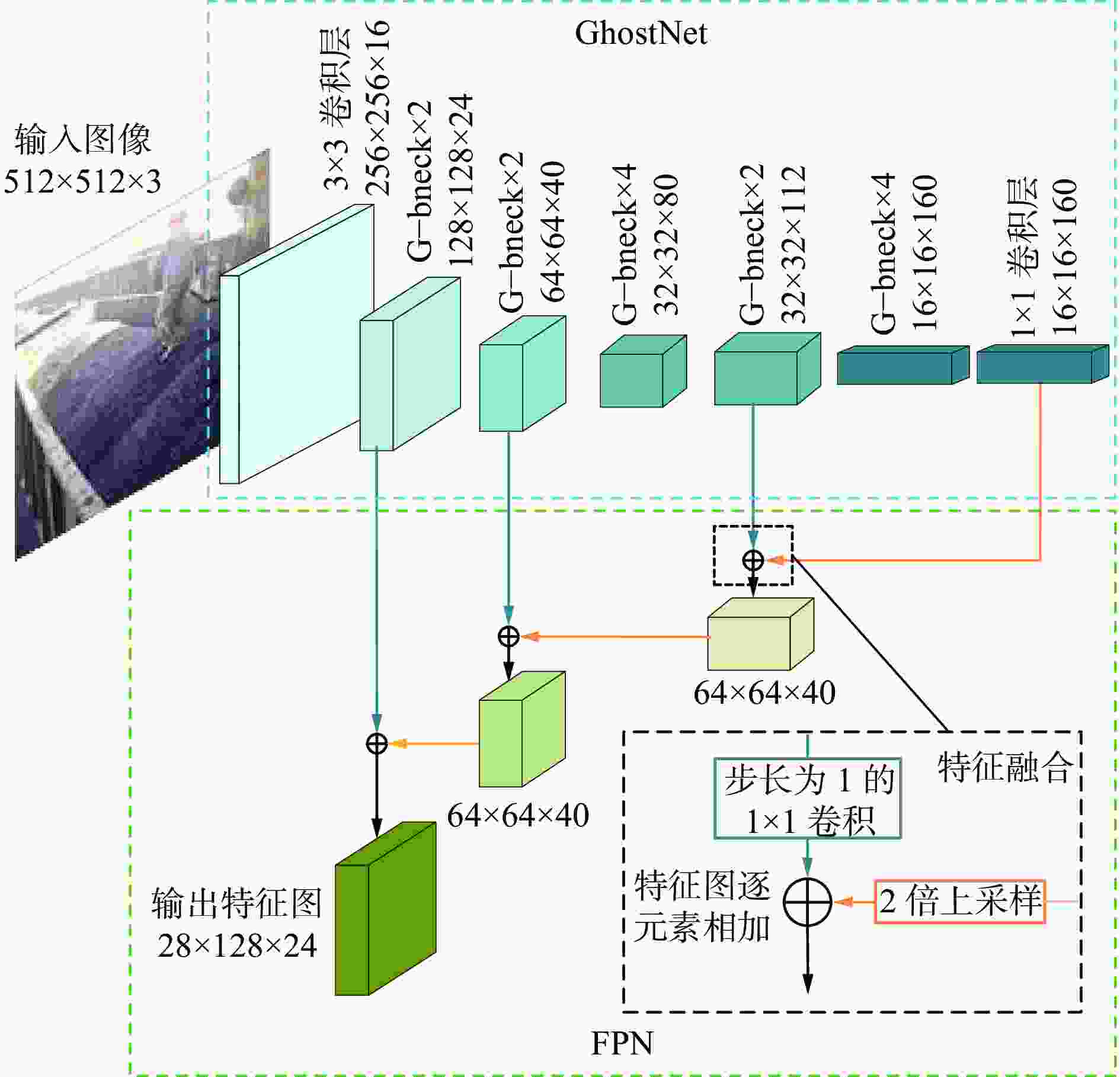

    图  2  基于GhostNet和FPN的特征提取网络结构

    Figure  2.  Feature extraction network structure based on GhostNet and feature pyramid network

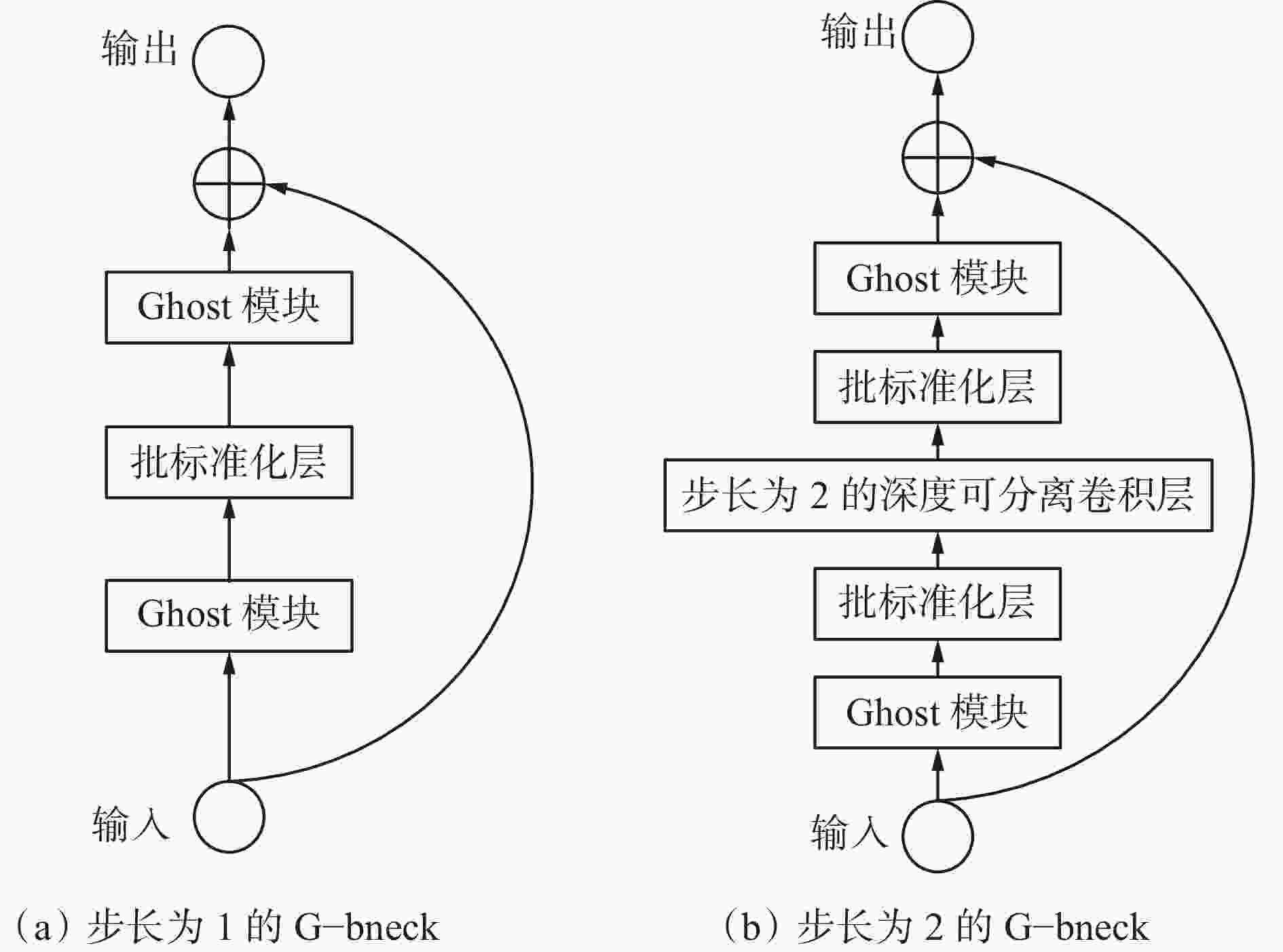

    图  3  G−bneck结构

    Figure  3.  Structure of G-bneck

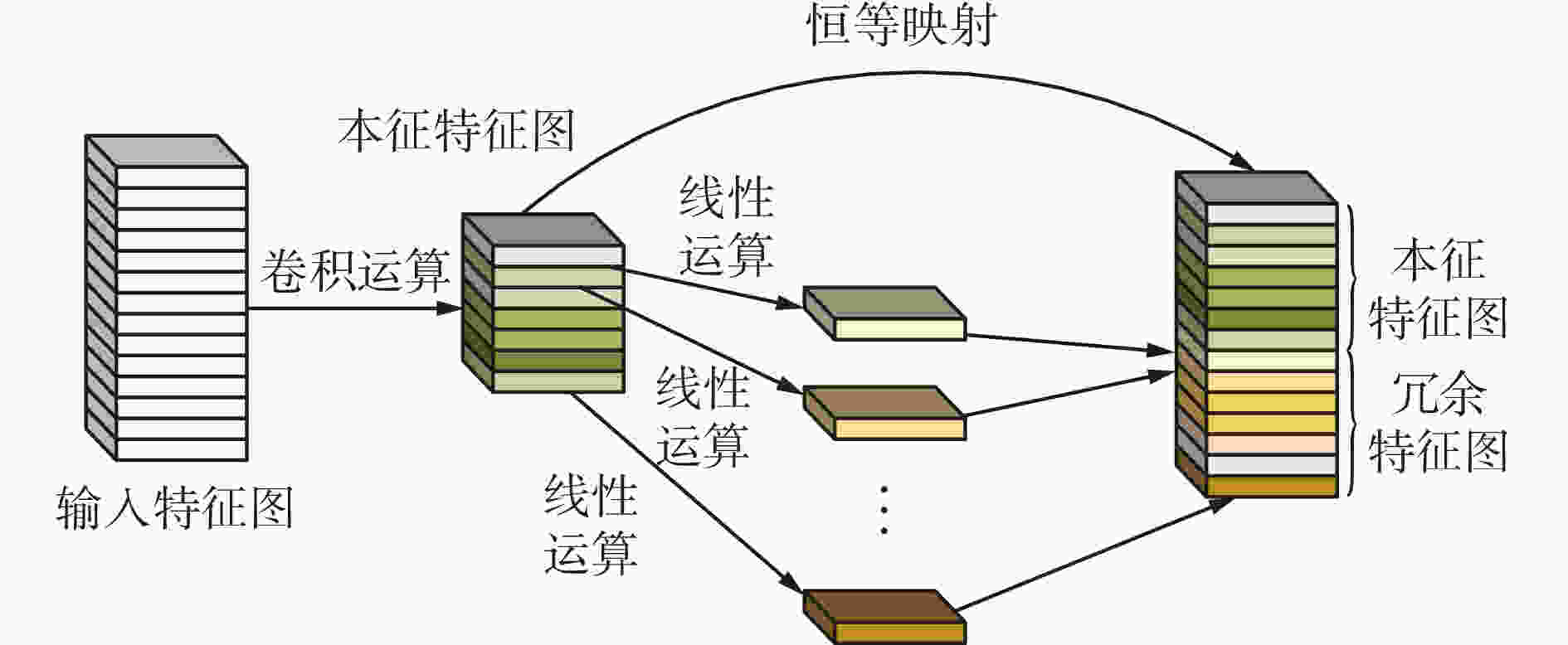

    图  4  Ghost模块

    Figure  4.  Ghost module

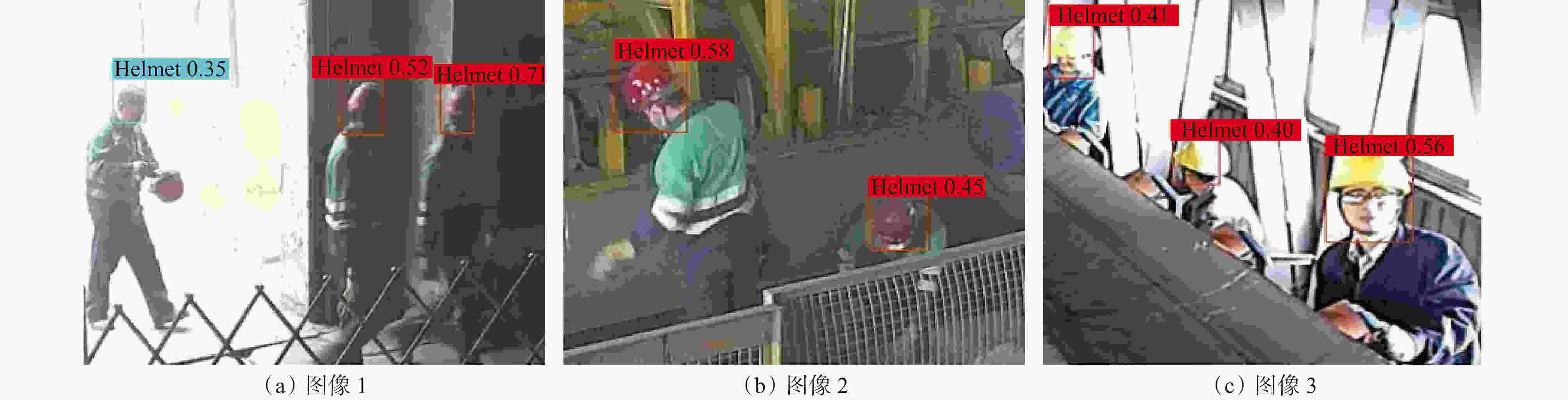

    图  5  CenterNet−GhostNet模型检测结果

    Figure  5.  Detection results of CenterNet-GhostNet model

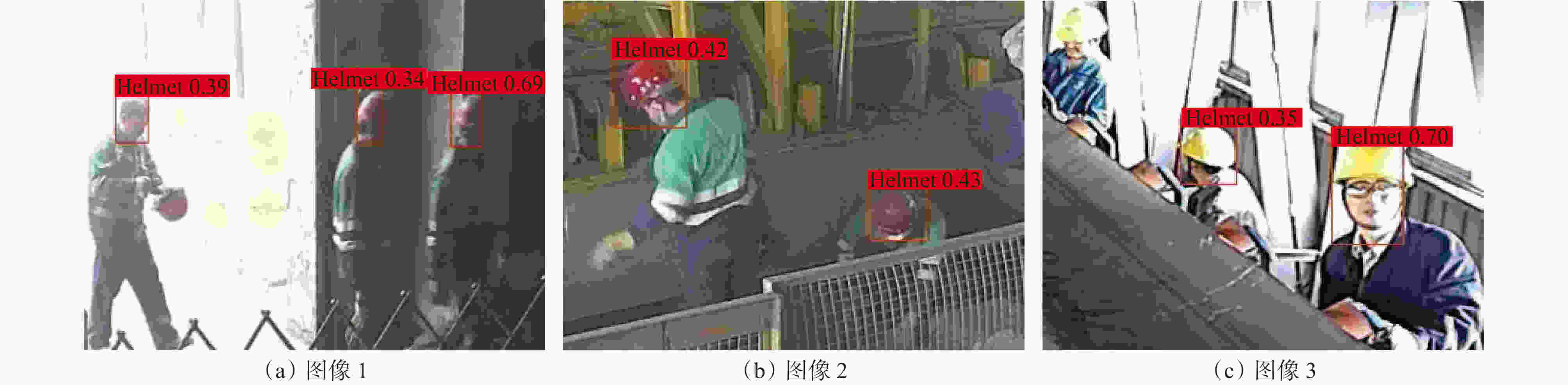

    图  6  CenterNet−Res18模型检测结果

    Figure  6.  Detection results of CenterNet-Res18 model

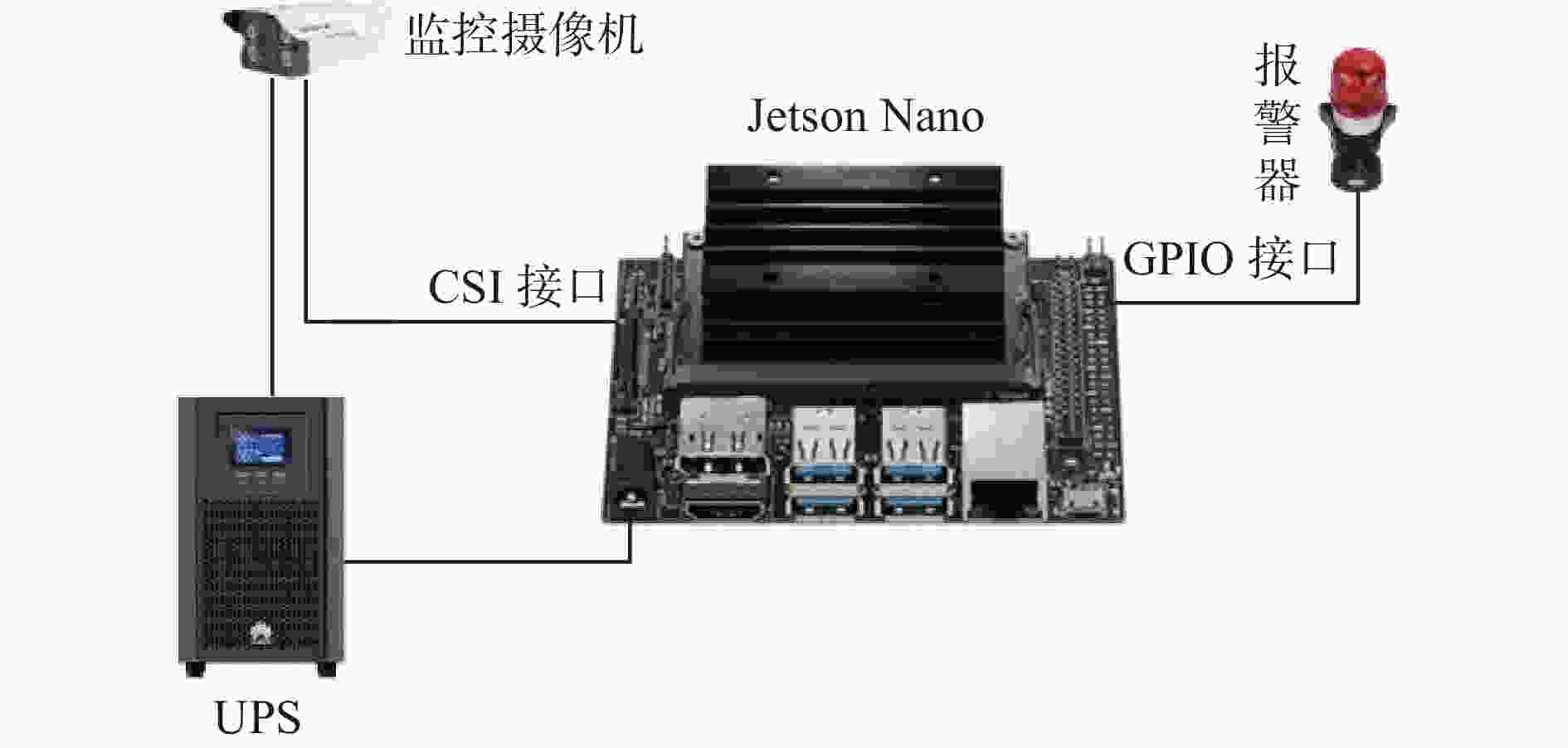

    图  7  选煤厂危险区域人员检测布置

    Figure  7.  Personnel detection arrangement in dangerous area of coal preparation plant

    表  1  GhostNet参数

    Table  1.   Parameters of GhostNet

    输入尺寸结构步长
    512×512×3Conv2d(3×3)2
    256×256×16G−bneck×21,2
    128×128×24G−bneck×21,2
    64×64×40G−bneck×21,2
    32×32×80G−bneck×41,1,1,1
    32×32×112G−bneck×21,2
    16×16×160G−bneck×41,1,1,1
    16×16×160Conv2d(3×3)1
    下载: 导出CSV

    表  2  不同模型检测精度和检测速度对比

    Table  2.   Comparison of detection accuracy and detection speed among different models

    模型mAP/%FPS/(帧·s−1
    佩戴安全帽未佩戴安全帽
    SSD−MobileNet87.183.3167
    YOLOv4 Tiny91.589.7117
    CenterNet−Res1888.685.1155
    CenterNet−GhostNet93.791.7146
    下载: 导出CSV
  • [1] 张宗华. 选煤厂人员智能视频监控系统设计[J]. 工矿自动化,2013,39(4):76-79. doi: 10.7526/j.issn.1671-251X.2013.04.020

    ZHANG Zonghua. Design of intelligent video monitoring system of personnel of coal preparation plant[J]. Industry and Mine Automation,2013,39(4):76-79. doi: 10.7526/j.issn.1671-251X.2013.04.020
    [2] 张圣强,王建军,丁蕾. 选煤厂智能视频监控中的运动人体目标检测方法[J]. 工矿自动化,2011,37(11):60-62.

    ZHANG Shengqiang,WANG Jianjun,DING Lei. Detecting method of moving human in intelligent video monitoring of coal preparation plant[J]. Industry and Mine Automation,2011,37(11):60-62.
    [3] 陈海龙. 煤矿选煤厂巡检机器人的研究与设计[D]. 徐州: 中国矿业大学, 2014.

    CHEN Hailong. The study and design of coal cleaning plant inspection robot[D]. Xuzhou: China University of Mining and Technology, 2014.
    [4] 林娅静. 基于视觉的选煤厂智能监控系统研究[D]. 徐州: 中国矿业大学, 2014.

    LIN Yajing. Research on intelligent monitoring system of coal preparation plant based on vision[D]. Xuzhou: China University of Mining and Technology, 2014.
    [5] 周晨晖. 基于深度学习的煤矿复杂场景人员检测与统计分析方法研究[D]. 徐州: 中国矿业大学, 2019.

    ZHOU Chenhui. Research on personnel detection and statistical analysis in coal mine complex scenes based on deep learning[D]. Xuzhou: China University of Mining and Technology, 2019.
    [6] ZHOU Xingyi, WANG Dequan, KRAHENBUHL P. Objects as points[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Long Beach, 2019: 7263-7271.
    [7] HAN K, WANG Yunhe, TIAN Qi, et al. GhostNet: more features from cheap operations[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Seattle, 2016: 1577-1586.
    [8] LIN T Y, DOLLAR P, GIRSHICK R, et al. Feature pyramid networks for object detection[C]//Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition, Honolulu, 2017: 2117-2125.
    [9] HOWARD A G, ZHU Menglong, CHEN Bo, et al. MobileNets: efficient convolutional neural networks for mobile vision applications[EB/OL]. [2021-08-02]. https://arxiv.org/abs/1704.04861.
    [10] DAI Jifeng, QI Haozhi, XIONG Yuwen, et al. Deformable convolutional networks[C]//IEEE International Conference on Computer Vision, Venice, 2017: 764-773.
    [11] XU Yuanyuan,YAN Wan,YANG Genke,et al. CenterFace:joint face detection and alignment using face as point[J]. Scientific Programming,2020,2020:1-8.
    [12] LIN T Y,GOYAL P,GIRSHICK R,et al. Focal loss for dense object detection[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence,2020,42(2):318-327. doi: 10.1109/TPAMI.2018.2858826
    [13] BOCHKOVSKIY A, WANG C Y, LIAO H Y M. YOLOv4: optimal speed and accuracy of object detection[EB/OL]. [2021-08-02]. https://arxiv.org/abs/2004.10934.
    [14] EVERINGHAM M,GOOL L V,WILLIAMS C K I,et al. The PASCAL visual object classes( VOC) challenge[J]. International Journal of Computer Vision,2010,88(2):303-338. doi: 10.1007/s11263-009-0275-4
