矿井动目标精确定位技术及优化方法研究

郑学召 严瑞锦 蔡国斌 王宝元 何芹健

郑学召,严瑞锦,蔡国斌,等. 矿井动目标精确定位技术及优化方法研究[J]. 工矿自动化,2023,49(2):14-22.  doi: 10.13272/j.issn.1671-251x.18020
引用本文: 郑学召,严瑞锦,蔡国斌,等. 矿井动目标精确定位技术及优化方法研究[J]. 工矿自动化,2023,49(2):14-22.  doi: 10.13272/j.issn.1671-251x.18020
ZHENG Xuezhao, YAN Ruijin, CAI Guobin, et al. Research on precise positioning technology and optimization method of mine moving targets[J]. Journal of Mine Automation,2023,49(2):14-22.  doi: 10.13272/j.issn.1671-251x.18020
Citation: ZHENG Xuezhao, YAN Ruijin, CAI Guobin, et al. Research on precise positioning technology and optimization method of mine moving targets[J]. Journal of Mine Automation,2023,49(2):14-22.  doi: 10.13272/j.issn.1671-251x.18020

矿井动目标精确定位技术及优化方法研究

doi: 10.13272/j.issn.1671-251x.18020
基金项目: 国家自然科学基金资助项目(52174197);陕西省应急管理领域科技信息化专项课题(2021HZ1130)。
详细信息
    作者简介:

    郑学召(1977—),男,新疆焉耆人,教授,博士,研究方向为应急技术与管理、矿山防灭火技术, E-mail: zhengxuezhao@ xust.edu

  • 中图分类号: TD676

Research on precise positioning technology and optimization method of mine moving targets

  • 摘要: 现有矿井动目标定位系统存在井下无线信号传输衰减严重、非视距误差较大、井下电磁环境复杂、动静目标感知范围广、多系统信息融合联动性强等问题,目前针对矿井动目标精确定位技术及优化方法的研究未全面分析动目标精确定位服务的特点和技术要求,且缺少主流与新兴定位技术的全面对比。针对上述问题,分析了常用信号传输技术和定位测距方法在矿井动目标精确定位系统中应用的优缺点,指出无线电定位技术是较为适合、可行的矿井动目标精确定位技术。从信号防碰撞技术、误差消除方法、定位结果优化方法和融合定位技术4个方面分析了我国矿井动目标精确定位优化方法的研究现状,总结了存在的问题:① 信号防碰撞算法的综合性仍需改进。② 测距误差控制手段的高效性有待提升。③ 融合定位方法在生产现场中应用尚不成熟。④ 系统的应急救援辅助作用未充分发挥。针对现有技术的不足,展望了矿井动目标精确定位技术的发展趋势:① 研究动态环境下信号冲突机制和冲突后恢复机制,设计综合信号防碰撞方案。② 研究精确、高效、经济的测距误差控制方案,节约通信成本。③ 设计多种定位方法深度融合的动态定位方案,提升系统的可靠性、灵活性和应用性。④ 研究多系统联动方案及极端情况下应急通信与定位恢复机制,充分发挥系统在应急救援中的作用。

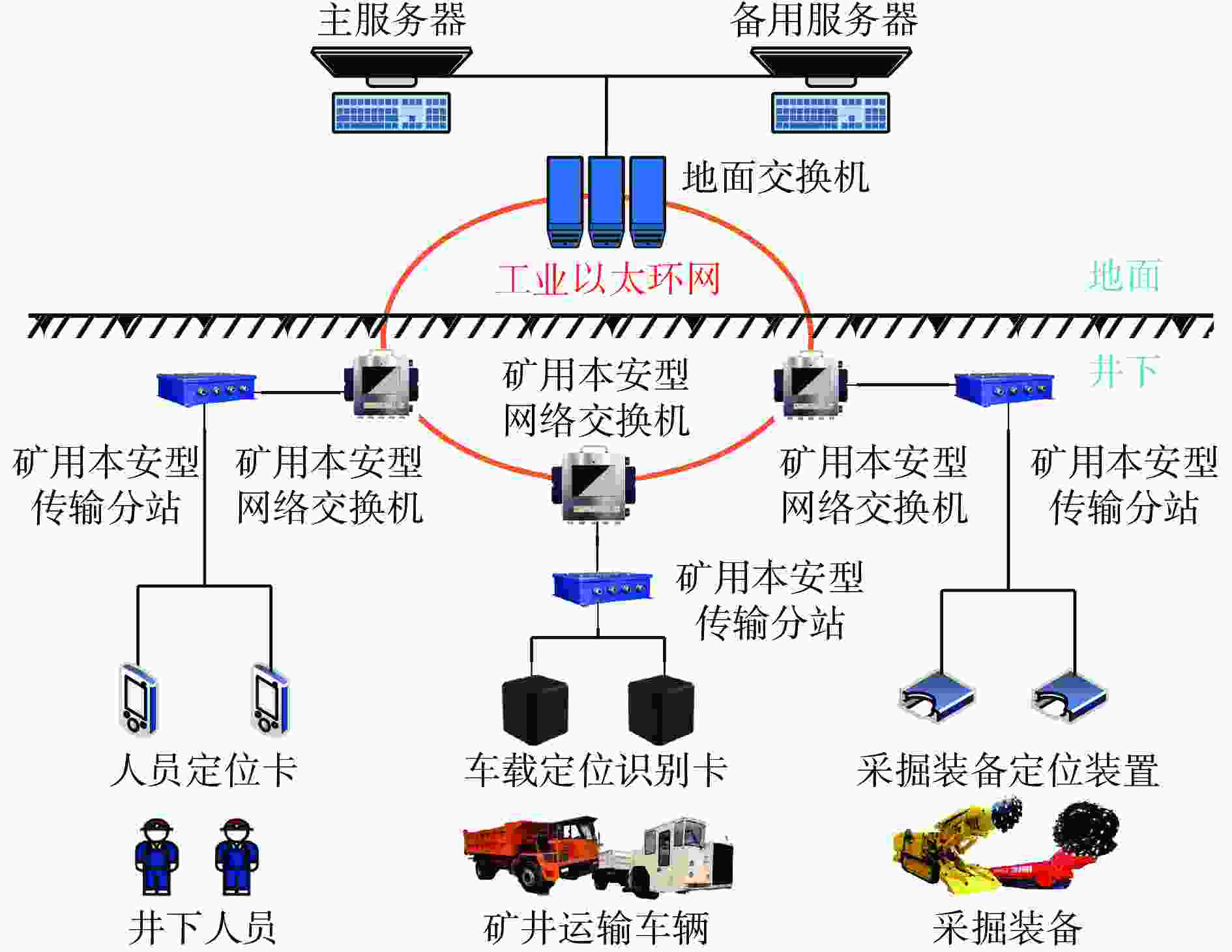

  • 图  1  矿井动目标精确定位系统结构

    Figure  1.  Structure of precise positioning system for mine moving target

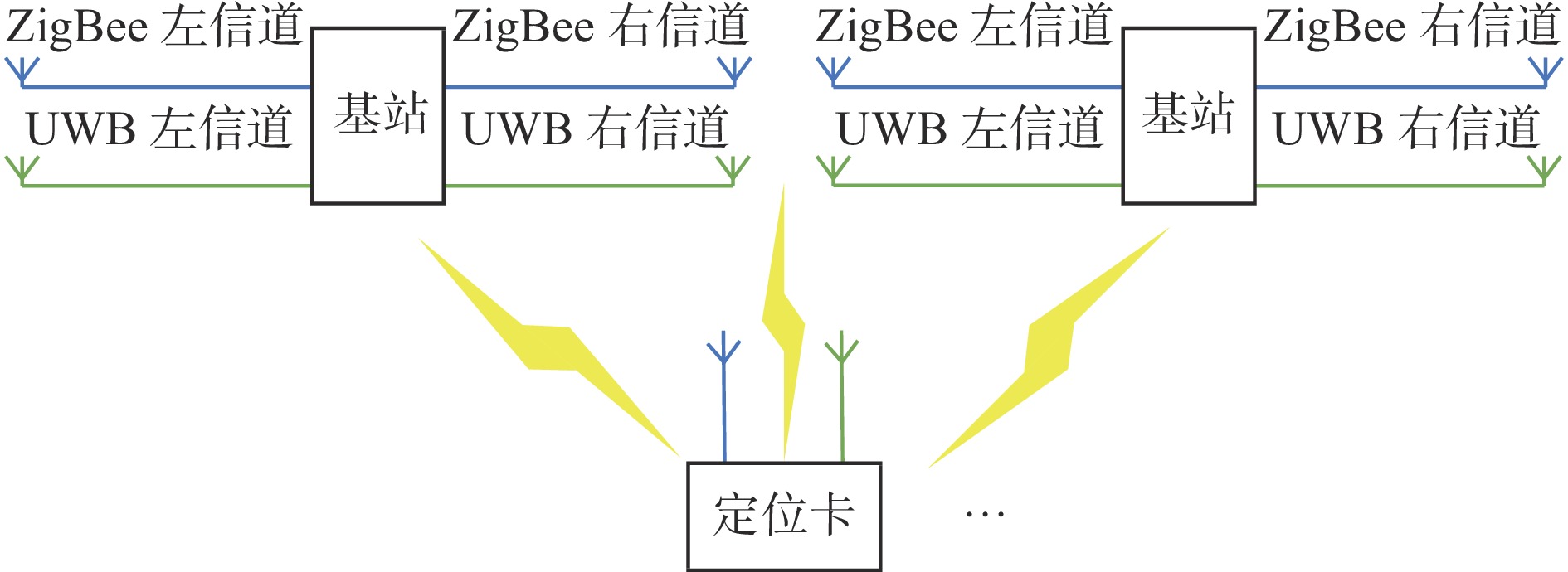

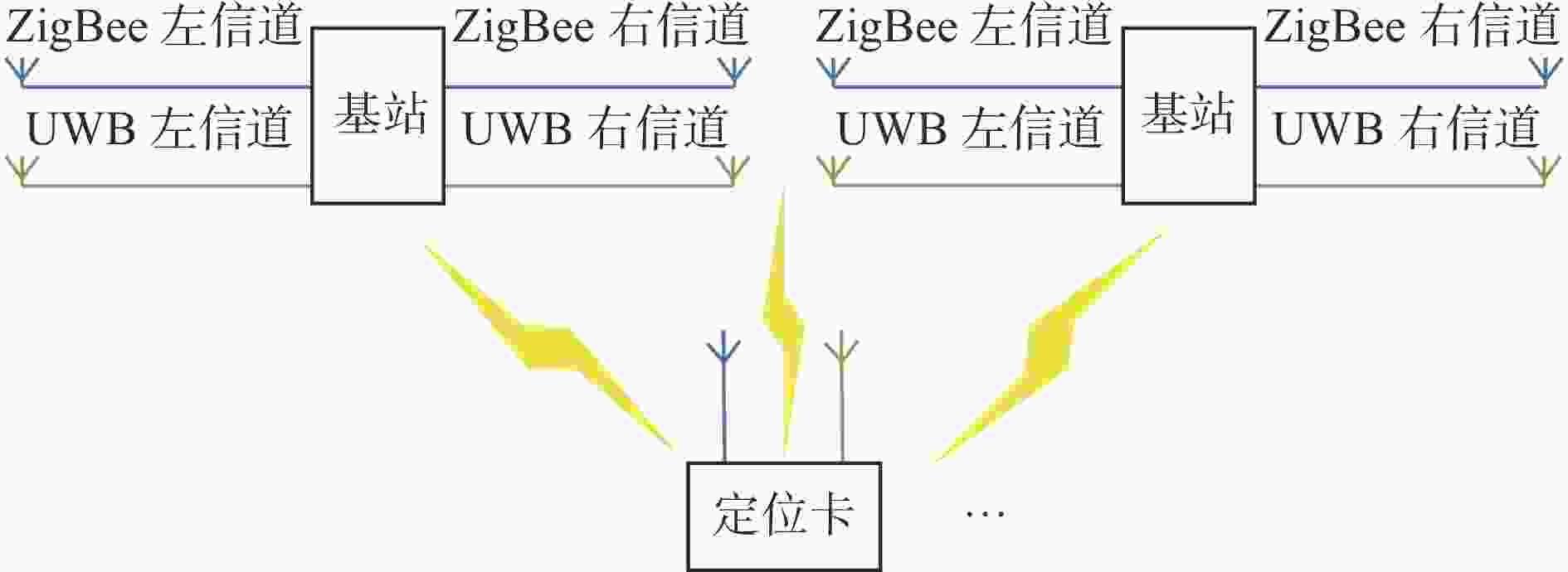

    图  2  双信道方式应用原理

    Figure  2.  Application principle of dual-channel mode

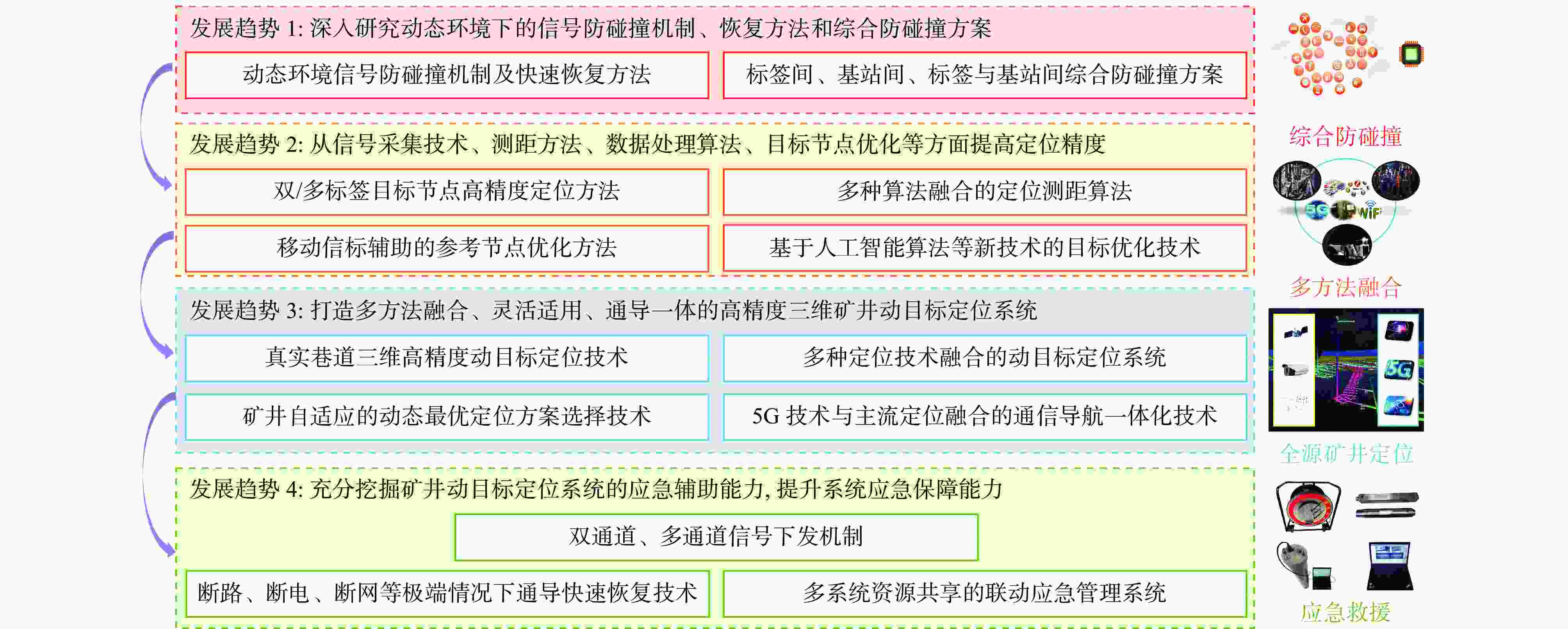

    图  3  矿井动目标精确定位技术发展趋势

    Figure  3.  Development trend of mine moving target precise positioning technology

    表  1  常用无线电定位技术对比

    Table  1.   Common radio positioning technology comparison

    定位
    技术
    标准定位
    精度
    通信
    距离/m
    能量
    损耗
    建设
    成本
    维护
    成本
    自组
    网性
    巷道环境
    影响
    RFIDIEEE
    802.15.4
    15~30较低较低
    BluetoothIEEE
    802.15.1
    1~10较高一般
    ZigBeeIEEE
    802.15.4
    较高20~70一般较低
    WiFiIEEE
    802.11
    一般20~70较高一般
    UWBIEEE
    802.15.3
    <10一般
    5GR16100~200较高
    下载: 导出CSV

    表  2  常用测距定位算法对比

    Table  2.   Comparison of common ranging and positioning algorithms

    定位
    算法
    定位
    精度
    建设
    成本
    巷道环境
    影响
    定位卡
    时钟偏
    移影响
    分站时
    钟偏移
    影响
    分站与定
    位卡时钟
    同步影响
    分站间
    时钟同
    步影响
    RSSI
    AOA一般
    TOA较低
    TDOA一般较低
    TOF较高
    TWR较高较高
    SS−TWR较低较高
    SDS−TWR较高较高
    ADS−TWR
    下载: 导出CSV
  • [1] LU Hanyu, WANG Huajun, LIU Ke, et al. Research of personnel orientation system of mine based on ZigBee technology[C]. International Conference on Advanced Materials and Engineering Materials, Shenyang, 2012, 1183-1187.
    [2] 胡青松,吴立新,张申,等. 煤矿工作面定位WSN的部署与能耗分析[J]. 中国矿业大学学报,2014,43(2):351-355. doi: 10.13247/j.cnki.jcumt.2014.02.024

    HU Qingsong,WU Lixin,ZHANG Shen,et al. Placement of positioning WSN in coal face and energy consumption analysis[J]. Journal of China University of Mining & Technology,2014,43(2):351-355. doi: 10.13247/j.cnki.jcumt.2014.02.024
    [3] XU Xiaofeng, XU Han, LI Wei, et al. Combined initial alignment system and alignment method for strapdown inertial navigation system of underground coal mining machine: AU2016365012B2[P]. 2018-05-17.
    [4] 李晓刚. 基于煤矿人员定位系统的寻人定位仪设计[J]. 煤矿安全,2014,45(8):139-141. doi: 10.13347/j.cnki.mkaq.2014.08.041

    LI Xiaogang. Design of personnel locator based on coal mine personnel positioning system[J]. Safety in Coal Mines,2014,45(8):139-141. doi: 10.13347/j.cnki.mkaq.2014.08.041
    [5] 胡青松,杨维,丁恩杰,等. 煤矿应急救援通信技术的现状与趋势[J]. 通信学报,2019,40(5):163-179. doi: 10.11959/j.issn.1000-436x.2019123

    HU Qingsong,YANG Wei,DING Enjie,et al. State-of-the-art and trend of emergency rescue communication technologies for coal mine[J]. Journal on Communications,2019,40(5):163-179. doi: 10.11959/j.issn.1000-436x.2019123
    [6] 王国法. 煤矿智能化最新技术进展与问题探讨[J]. 煤炭科学技术,2022,50(1):1-27. doi: 10.3969/j.issn.0253-2336.2022.1.mtkxjs202201001

    WANG Guofa. New technological progress of coal mine intelligence and its problems[J]. Coal Science and Technology,2022,50(1):1-27. doi: 10.3969/j.issn.0253-2336.2022.1.mtkxjs202201001
    [7] 胡青松,张申,吴立新,等. 矿井动目标定位:挑战、现状与趋势[J]. 煤炭学报,2016,41(5):1059-1068. doi: 10.13225/j.cnki.jccs.2015.1267

    HU Qingsong,ZHANG Shen,WU Lixin,et al. Localization techniques of mobile objects in coal mines:challenges,solutions and trends[J]. Journal of China Coal Society,2016,41(5):1059-1068. doi: 10.13225/j.cnki.jccs.2015.1267
    [8] 胡青松,张赫男,李世银,等. 基于大数据与AI驱动的智能煤矿目标位置服务技术[J]. 煤炭科学技术,2020,48(8):121-130.

    HU Qingsong,ZHANG Henan,LI Shiyin,et al. Intelligent coal mine target location service technology based on big data and AI driven[J]. Coal Science and Technology,2020,48(8):121-130.
    [9] 孙哲星. 煤矿井下人员精确定位方法[J]. 煤炭科学技术,2018,46(3):130-134. doi: 10.13199/j.cnki.cst.2018.03.022

    SUN Zhexing. Personnel position method in underground coal mine[J]. Coal Science and Technology,2018,46(3):130-134. doi: 10.13199/j.cnki.cst.2018.03.022
    [10] 霍振龙. 矿井定位技术现状和发展趋势[J]. 工矿自动化,2018,44(2):51-55. doi: 10.13272/j.issn.1671-251x.17309

    HUO Zhenlong. Status and development trend of mine positioning technology[J]. Industry and Mine Automation,2018,44(2):51-55. doi: 10.13272/j.issn.1671-251x.17309
    [11] 常琳. 煤矿井下无线定位技术及系统的应用现状和发展方向[J]. 煤矿安全,2021,52(7):94-98.

    CHANG Lin. Application status and development direction of wireless positioning technology and system in underground coal mine[J]. Safety in Coal Mines,2021,52(7):94-98.
    [12] HANCKE G P,SILVA B J. Wireless positioning in underground mines:challenges and recent advances[J]. IEEE Industrial Electronics Magazine,2021,15(3):39-48. doi: 10.1109/MIE.2020.3036622
    [13] 国家能源局, 国家矿山安全监察局. 煤矿智能化建设指南(2021年版)[R/OL]. [2021-06-05]. https://view.officeapps.live.com/op/view.aspx?src=http%3A%2F%2Fzfxxgk.nea.gov.cn%2F1310015723_16240130783601n.docx.

    Nation Energy Administration, National Mine Safety Administration. Coal mine intelligent construction guide(2021 Edition)[R/OL]. [2021-06-05]. https://view.officeapps.live.com/op/view.aspx?src=http%3A%2F%2Fzfxxgk.nea.gov.cn%2F1310015723_16240130783601n.docx.
    [14] 孙继平,江嬴. 矿井车辆无人驾驶关键技术研究[J]. 工矿自动化,2022,48(5):1-5,31. doi: 10.13272/j.issn.1671-251x.17947

    SUN Jiping,JIANG Ying. Research on key technologies of mine unmanned vehicle[J]. Journal of Mine Automation,2022,48(5):1-5,31. doi: 10.13272/j.issn.1671-251x.17947
    [15] 赵亦辉,赵友军,周展. 综采工作面采煤机智能化技术研究现状[J]. 工矿自动化,2022,48(2):11-18,28. doi: 10.13272/j.issn.1671-251x.2021090024

    ZHAO Yihui,ZHAO Youjun,ZHOU Zhan. Research status of intelligent technology of shearer in fully mechanized working face[J]. Industry and Mine Automation,2022,48(2):11-18,28. doi: 10.13272/j.issn.1671-251x.2021090024
    [16] 马宏伟,杨金科,毛清华,等. 煤矿护盾式掘进机器人系统精确定位研究[J]. 工矿自动化,2022,48(3):63-70. doi: 10.13272/j.issn.1671-251x.2021070082

    MA Hongwei,YANG Jinke,MAO Qinghua,et al. Research on precise positioning of shield roadheader robot system in coal mine[J]. Journal of Mine Automation,2022,48(3):63-70. doi: 10.13272/j.issn.1671-251x.2021070082
    [17] 田子建,李宗伟,刘晓阳,等. 基于电磁波及超声波联合测距的井下定位方法[J]. 北京理工大学学报,2014,34(5):490-494.

    TAN Zijian,LI Zongwei,LIU Xiaoyang,et al. A positioning method in mine tunnel based on joint electromagnetic wave and ultrasonic distance measurement[J]. Transactions of Beijing Institute of Technology,2014,34(5):490-494.
    [18] 郑江涛,李四海,刘士明,等. 基于惯导和激光雷达的采煤机定位方法[J]. 中国惯性技术学报,2020,28(5):595-602.

    ZHENG Jiangtao,LI Sihai,LIU Shiming,et al. Positioning method of a shearer based on inertial navigation and lidar[J]. Journal of Chinese Inertial Technology,2020,28(5):595-602.
    [19] 张帆,李亚杰,孙晓辉. 无线感知与视觉融合的井下目标跟踪定位方法[J]. 矿业科学学报,2018,3(5):484-491.

    ZHANG Fan,LI Yajie,SUN Xiaohui. A novel method of mine target tracking and location based on wireless sensor and visual recognition[J]. Journal of Mining Science and Technology,2018,3(5):484-491.
    [20] 都世锋,景晓军. 矿井车辆RFID射频定位系统[J]. 煤矿安全,2012,43(8):123-125. doi: 10.13347/j.cnki.mkaq.2012.08.006

    DU Shifeng,JING Xiaojun. Research on RFID vehicles position system in coal mine[J]. Safety in Coal Mines,2012,43(8):123-125. doi: 10.13347/j.cnki.mkaq.2012.08.006
    [21] 贺磊,魏明生,仇欣宇,等. 基于UWB的井下人员定位算法研究[J]. 工矿自动化,2022,48(6):134-138. doi: 10.13272/j.issn.1671-251x.2022020035

    HE Lei,WEI Mingsheng,QIU Xinyu,et al. Research on positioning algorithm of underground personnel based on UWB[J]. Journal of Mine Automation,2022,48(6):134-138. doi: 10.13272/j.issn.1671-251x.2022020035
    [22] 唐春玲,孙明刚. 基于无线定位技术的煤矿井下人员定位系统研究[J]. 煤炭技术,2014,33(1):116-118.

    TANG Chunling,SUN Minggang. Research on underground mine personnel positioning system based on wireless location technology[J]. Coal Technology,2014,33(1):116-118.
    [23] 刘世森. 基于UWB的矿井人员精准定位技术[J]. 煤矿安全,2019,50(6):118-120. doi: 10.13347/j.cnki.mkaq.2019.06.029

    LIU Shisen. Accurate positioning technology for mine workers based on UWB[J]. Safety in Coal Mines,2019,50(6):118-120. doi: 10.13347/j.cnki.mkaq.2019.06.029
    [24] 陈鸿. 井下人员定位系统防碰撞算法改进[J]. 工矿自动化,2012,38(7):4-6.

    CHEN Hong. Improvement of anti-collision algorithm of underground personnel positioning system[J]. Industry and Mine Automation,2012,38(7):4-6.
    [25] 王飞. 矿用精确定位系统防碰撞方法研究与实现[J]. 煤炭技术,2016,35(7):108-109. doi: 10.13301/j.cnki.ct.2016.07.044

    WANG Fei. Research and implementation of anti-collision algorithm in coal mine precise positioning system[J]. Coal Technology,2016,35(7):108-109. doi: 10.13301/j.cnki.ct.2016.07.044
    [26] 苏健,谢良波,杨颖,等. 基于空闲时隙消除的超高频RFID防碰撞算法[J]. 电子学报,2017,45(2):307-314. doi: 10.3969/j.issn.0372-2112.2017.02.007

    SU Jian,XIE Liangbo,YANG Ying,et al. Idle slots elimination based anti-collision algorithm for UHF RFID[J]. Acta Electronica Sinica,2017,45(2):307-314. doi: 10.3969/j.issn.0372-2112.2017.02.007
    [27] 邵小强,李康乐,陈熙,等. 基于改进卡尔曼滤波和参数拟合的矿井TOA定位方法[J]. 煤炭学报,2019,44(5):1616-1624.

    SHAO Xiaoqiang,LI Kangle,CHEN Xi,et al. MTOA positioning method of coal mine based on Kalman filter and parameter fitting[J]. Journal of China Coal Society,2019,44(5):1616-1624.
    [28] 邵小强,赵轩,聂馨超,等. 基于改进加权混合滤波的矿井RSSI定位方法[J]. 煤炭工程,2021,53(10):137-142.

    SHAO Xiaoqiang,ZHAO Xuan,NIE Xinchao,et al. RSSI positioning method for coal mine based on improved weighted hybrid filtering[J]. Coal Engineering,2021,53(10):137-142.
    [29] 李迎喜. 煤矿井下精确时间同步定位技术研究[J]. 单片机与嵌入式系统应用,2019,19(2):27-29.

    LI Yingxi. Research on precise time synchronization positioning technology in coal mine[J]. Microcontrollers & Embedded Systems,2019,19(2):27-29.
    [30] 朱光. 改进RSSI加权质心算法在井下人员定位中的应用研究[J]. 中国矿业,2018,27(12):198-201. doi: 10.12075/j.issn.1004-4051.2018.12.029

    ZHU Guang. Application research of improved RSSI weighted centroid algorithm in downhole personnel positioning[J]. China Mining Magazine,2018,27(12):198-201. doi: 10.12075/j.issn.1004-4051.2018.12.029
    [31] 卞佳兴,朱荣,陈玄. 基于改进双向测距-到达时间差定位算法的超宽带定位系统[J]. 计算机应用,2017,37(9):2496-2500. doi: 10.11772/j.issn.1001-9081.2017.09.2496

    BIAN Jiaxing,ZHU Rong,CHEN Xuan. Ultra wideband localization system based on improved two-way ranging and time difference of arrival positioning algorithm[J]. Journal of Computer Applications,2017,37(9):2496-2500. doi: 10.11772/j.issn.1001-9081.2017.09.2496
    [32] 莫树培,李国良. 采用分段加权最小二乘法的井下人员实时定位系统设计[J]. 矿业安全与环保,2019,46(3):32-36. doi: 10.3969/j.issn.1008-4495.2019.03.007

    MO Shupei,LI Guoliang. Design of real-time positioning system for underground personnel by using piecewise weighted least squares[J]. Mining Safety & Environmental Protection,2019,46(3):32-36. doi: 10.3969/j.issn.1008-4495.2019.03.007
    [33] 张冉乔,苏中,刘宁. UWB人员运动定位的小波阈值去噪方法研究[J]. 现代电子技术,2020,43(17):34-38. doi: 10.16652/j.issn.1004-373x.2020.17.008

    ZHANG Ranqiao,SU Zhong,LIU Ning. Research on wavelet threshold denoising method for UWB localization of people motion[J]. Modern Electronics Technique,2020,43(17):34-38. doi: 10.16652/j.issn.1004-373x.2020.17.008
    [34] 唐丽均,吴畏,刘世森. 基于灰色预测模型的井下精确人员定位方法[J]. 工矿自动化,2021,47(8):128-132. doi: 10.13272/j.issn.1671-251x.2021060027

    TANG Lijun,WU Wei,LIU Shisen. Precise personnel positioning method in underground mine based on grey prediction model[J]. Industry and Mine Automation,2021,47(8):128-132. doi: 10.13272/j.issn.1671-251x.2021060027
    [35] 贺洁茹,王茹,张岩松. 矿井人员精确定位方法研究[J]. 煤矿机械,2020,41(12):31-34. doi: 10.13436/j.mkjx.202012011

    HE Jieru,WANG Ru,ZHANG Yansong. Research on accurate positioning method of mine personnel[J]. Coal Mine Machinery,2020,41(12):31-34. doi: 10.13436/j.mkjx.202012011
    [36] 吴静然,崔冉,赵志凯,等. 矿井人员融合定位系统[J]. 工矿自动化,2018,44(4):74-79. doi: 10.13272/j.issn.1671-251x.17296

    WU Jingran,CUI Ran,ZHAO Zhikai,et al. Mine personnel fusion location system[J]. Industry and Mine Automation,2018,44(4):74-79. doi: 10.13272/j.issn.1671-251x.17296
    [37] 仪玉杰,黄智刚,苏雨. 一种UWB与PDR融合的行人室内定位方法[J]. 导航定位学报,2019,7(3):38-43,50. doi: 10.3969/j.issn.2095-4999.2019.03.007

    YI Yujie,HUANG Zhigang,SU Yu. A method of pedestrian indoor positioning combined UWB with PDR[J]. Journal of Navigation and Positioning,2019,7(3):38-43,50. doi: 10.3969/j.issn.2095-4999.2019.03.007
    [38] 刘世森. 基于UWB和RFID相融合的矿井人员定位系统设计[J]. 自动化仪表,2020,41(8):82-86. doi: 10.16086/j.cnki.issn1000-0380.2020030005

    LIU Shisen. Design of mine personnel positioning system based on the combination of UWB and RFID[J]. Process Automation Instrumentation,2020,41(8):82-86. doi: 10.16086/j.cnki.issn1000-0380.2020030005
    [39] 李宗伟,王翀,王刚,等. 煤矿井下人员融合定位方法[J]. 工矿自动化,2020,46(1):59-64. doi: 10.13272/j.issn.1671-251x.2019120026

    LI Zongwei,WANG Chong,WANG Gang,et al. Fusion positioning method of underground mine personnel[J]. Industry and Mine Automation,2020,46(1):59-64. doi: 10.13272/j.issn.1671-251x.2019120026
    [40] 王红尧,郑鸿林,田劼,等. 面向矿井动目标的PSO−SVR模型与UWB Chan优化距离指纹融合定位方法[J]. 电子测量与仪器学报,2022,36(7):106-114.

    WANG Hongyao,ZHENG Honglin,TIAN Jie,et al. Fusion location method of PSSO-SVR model and UWB Chan optimal fingerprint matching for mine moving target[J]. Journal of Electronic Measurement and Instrumentation,2022,36(7):106-114.
    [41] 谢和平,吴立新,郑德志. 2025年中国能源消费及煤炭需求预测[J]. 煤炭学报,2019,44(7):1949-1960. doi: 10.13225/j.cnki.jccs.2019.0585

    XIE Heping,WU Lixin,ZHENG Dezhi. Prediction on the energy consumption and coal demand of China in 2025[J]. Journal of China Coal Society,2019,44(7):1949-1960. doi: 10.13225/j.cnki.jccs.2019.0585
    [42] 王国法. 加快煤矿智能化建设 推进煤炭行业高质量发展[J]. 中国煤炭,2021,47(1):2-10. doi: 10.3969/j.issn.1006-530X.2021.01.002

    WANG Guofa. Speeding up intelligent construction of coal mine and promoting high-quality development of coal industry[J]. China Coal,2021,47(1):2-10. doi: 10.3969/j.issn.1006-530X.2021.01.002
    [43] 胡青松,曹灿,吴立新,等. 面向矿井目标的双标签高精度定位方法[J]. 中国矿业大学学报,2017,46(2):437-442. doi: 10.13247/j.cnki.jcumt.000658

    HU Qingsong,CAO Can,WU Lixin,et al. A dual-tag high precision localization method for coal mine objects[J]. Journal of China University of Mining & Technology,2017,46(2):437-442. doi: 10.13247/j.cnki.jcumt.000658
