Fault diagnosis method for underground coal mining equipment audio signals based on improved transfer learning
-
摘要:

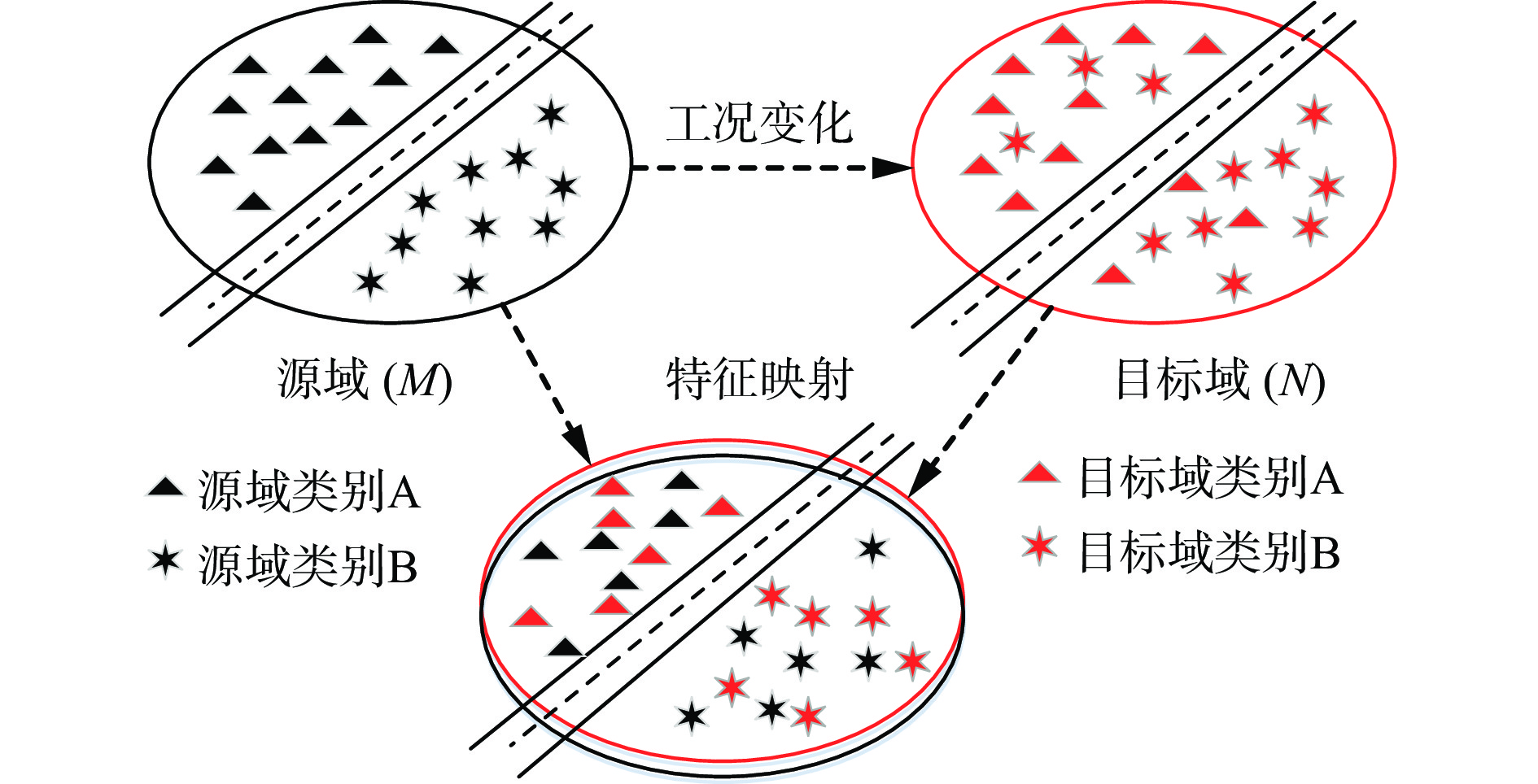

煤矿井下生产运行环境恶劣，其关键设备如瓦斯泵、通风机、采煤机等长期处于启动状态，易产生缺陷性故障。目前端到端音频数据故障诊断方法的模型训练与更新高度依赖于数据标注，尽管可以获取海量原始数据，但这些数据通常未经标注，难以直接用于模型训练，设备运行工况的突变和设备重组等因素可能导致数据分布发生变化，从而引起模型性能下降。针对上述问题，提出了一种基于改进迁移学习的煤矿井下设备音频信号故障诊断方法。首先，对煤矿设备音频信号进行梅尔频率倒谱系数（MFCC）特征提取，捕捉设备运行状态中的关键信息，得到故障特征二维系数图。然后，构建基于改进迁移学习的故障诊断网络模型，以改进最大均值差异，即多核联合最大均值差异作为度量标准，借助伪标签计算联合分布距离，将标签信息通过多重线性映射进行特征匹配，以减少数据分布差异，实现边缘分布和条件分布同时对齐。实验结果表明：所提方法在无标签条件下能够实现高精度的故障诊断，准确率达到96.99%，标准差为0.014；在模型抗噪性能实验中，基于改进迁移学习的故障诊断模型在低信噪比（如10 dB）条件下仍能保持80%的故障诊断准确率，展现出较强的抗噪鲁棒性。
Abstract:The underground production environment in coal mines is harsh, and key equipment such as gas pumps, ventilators, and coal shearers often operate continuously, making them susceptible to faults. Currently, end-to-end audio data fault diagnosis methods heavily depend on data labeling for model training and update. Although large amounts of raw data can be collected, these data are typically unlabeled and cannot be directly used for model training. Factors such as sudden changes in equipment operating conditions or equipment reconfiguration may cause data distribution changes, leading to decreased model performance. To address these issues, an underground coal mining equipment audio signal fault diagnosis method based on improved transfer learning is proposed. First, Mel-Frequency Cepstral Coefficients (MFCC) features were extracted from the audio signals of coal mining equipment to capture key information about the equipment's operational status, generating a 2D fault feature coefficient map. Then, a fault diagnosis network model based on improved transfer learning was established, using the improved Maximum Mean Discrepancy (MMD) and multi-kernel joint MMD as metrics. The joint distribution distance was calculated using pseudo-labels, and label information was mapped through multiple linear transformations to match features and reduce data distribution differences, achieving simultaneous alignment of both marginal and conditional distributions. Experimental results showed that the proposed method achieved high-accuracy fault diagnosis under unlabeled conditions, with an accuracy rate of 96.99% and a standard deviation of 0.014. In model noise resistance experiments, the fault diagnosis model based on improved transfer learning maintained 80% diagnostic accuracy under low signal-to-noise ratio conditions (e.g., 10 dB), demonstrating strong noise robustness.
-
-
![]()
图 2 基于改进迁移学习的煤矿井下设备音频信号故障诊断模型
Figure 2. Underground coal mining equipment audio signal fault diagnosis model based on improved transfer learning
![]()
图 3 基于改进迁移学习的煤矿井下设备音频故障诊断流程

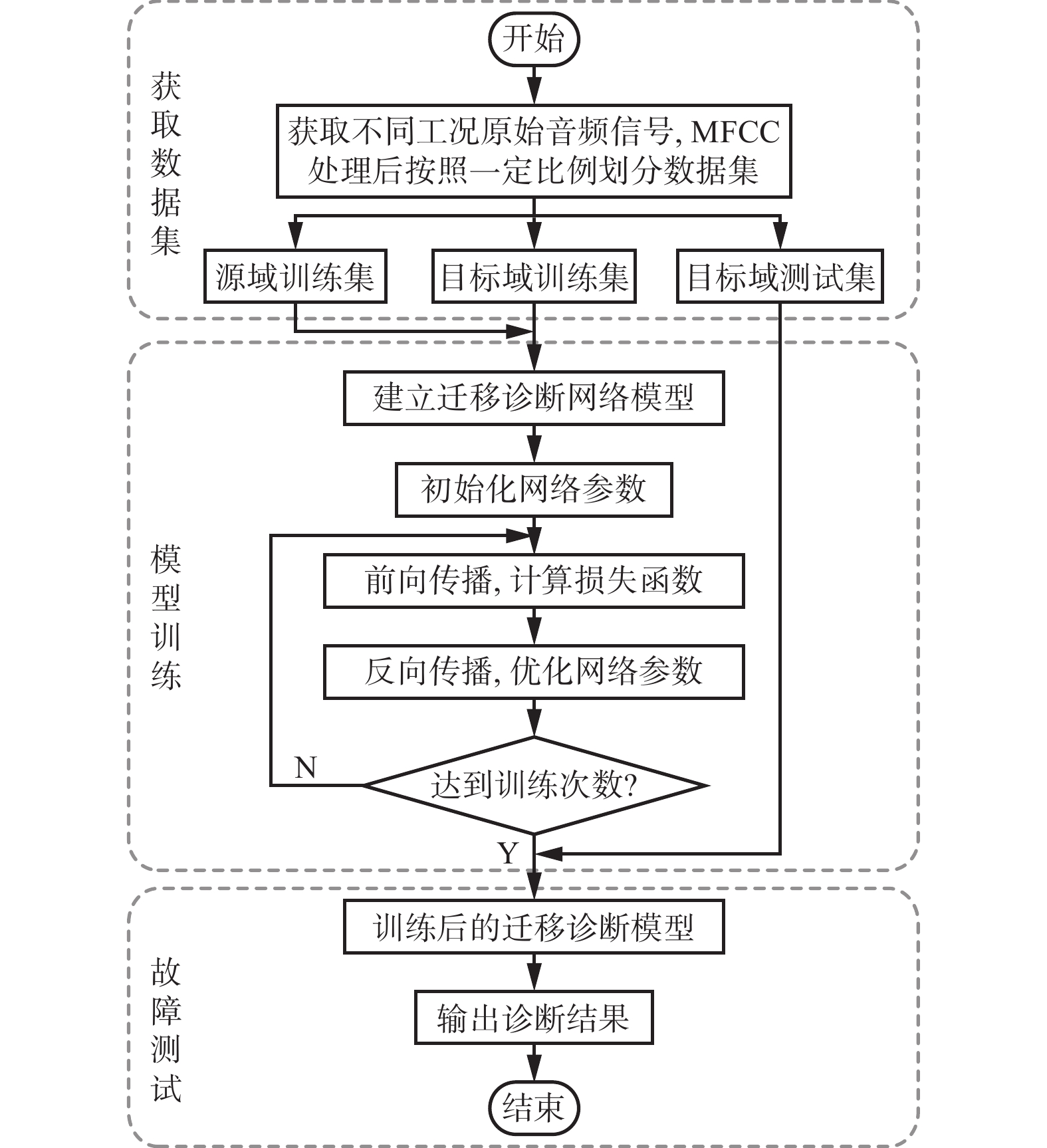

Figure 3. Underground coal mining equipment audio signal fault diagnosis process based on improved transfer learning
![]()
图 4 胶带运输设备在500 r/min负载下不同状态截取信号的一维时域波形
Figure 4. One-dimensional time-domain waveforms of signals extracted from belt conveyor equipment at 500 r/min load under different states
![]()
图 5 可变参数设置方式下模型损失的变化趋势

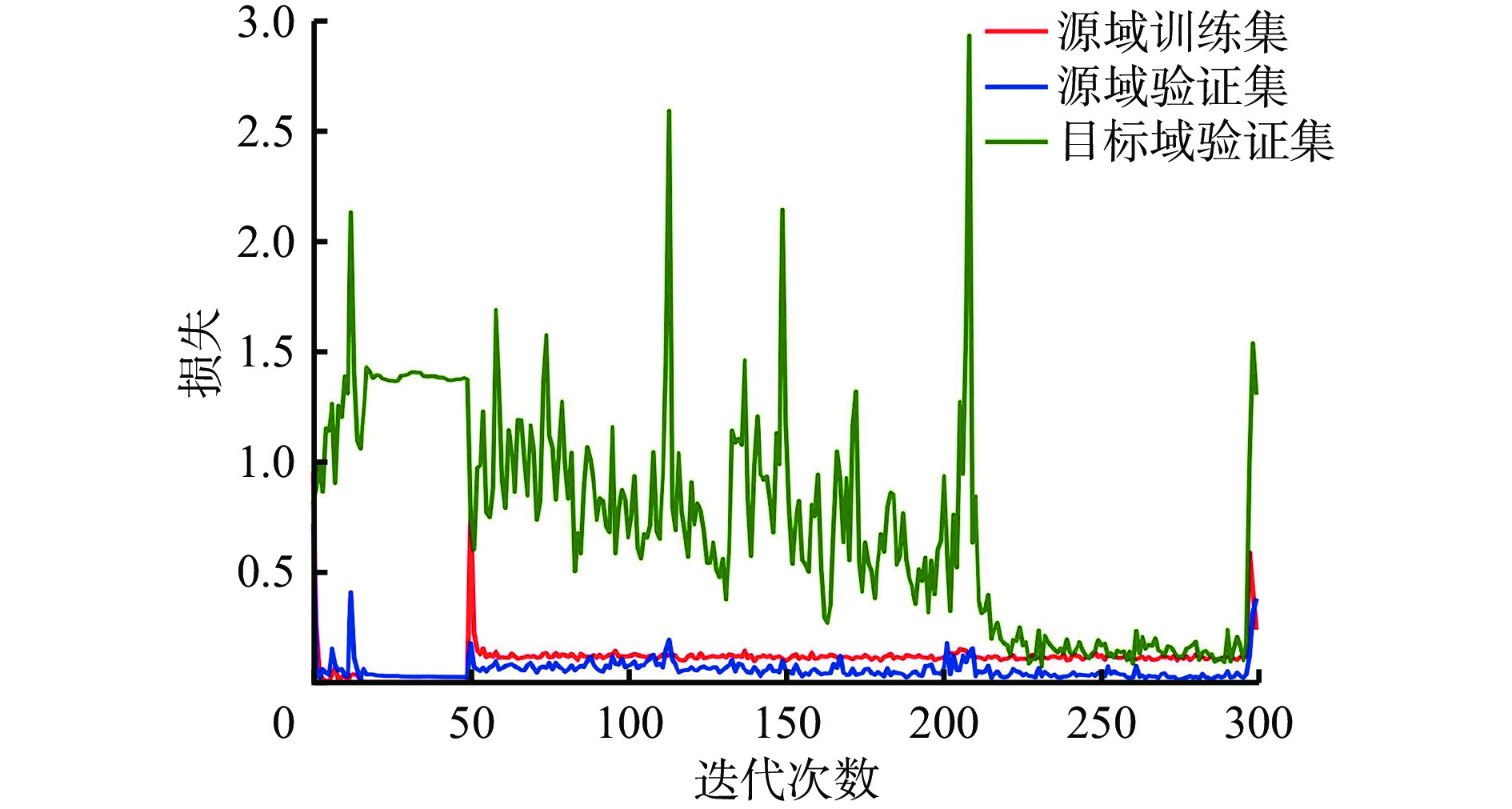

Figure 5. Variation trends of model loss under variable parameter settings
![]()
图 6 固定参数设置方式下模型损失的变化趋势

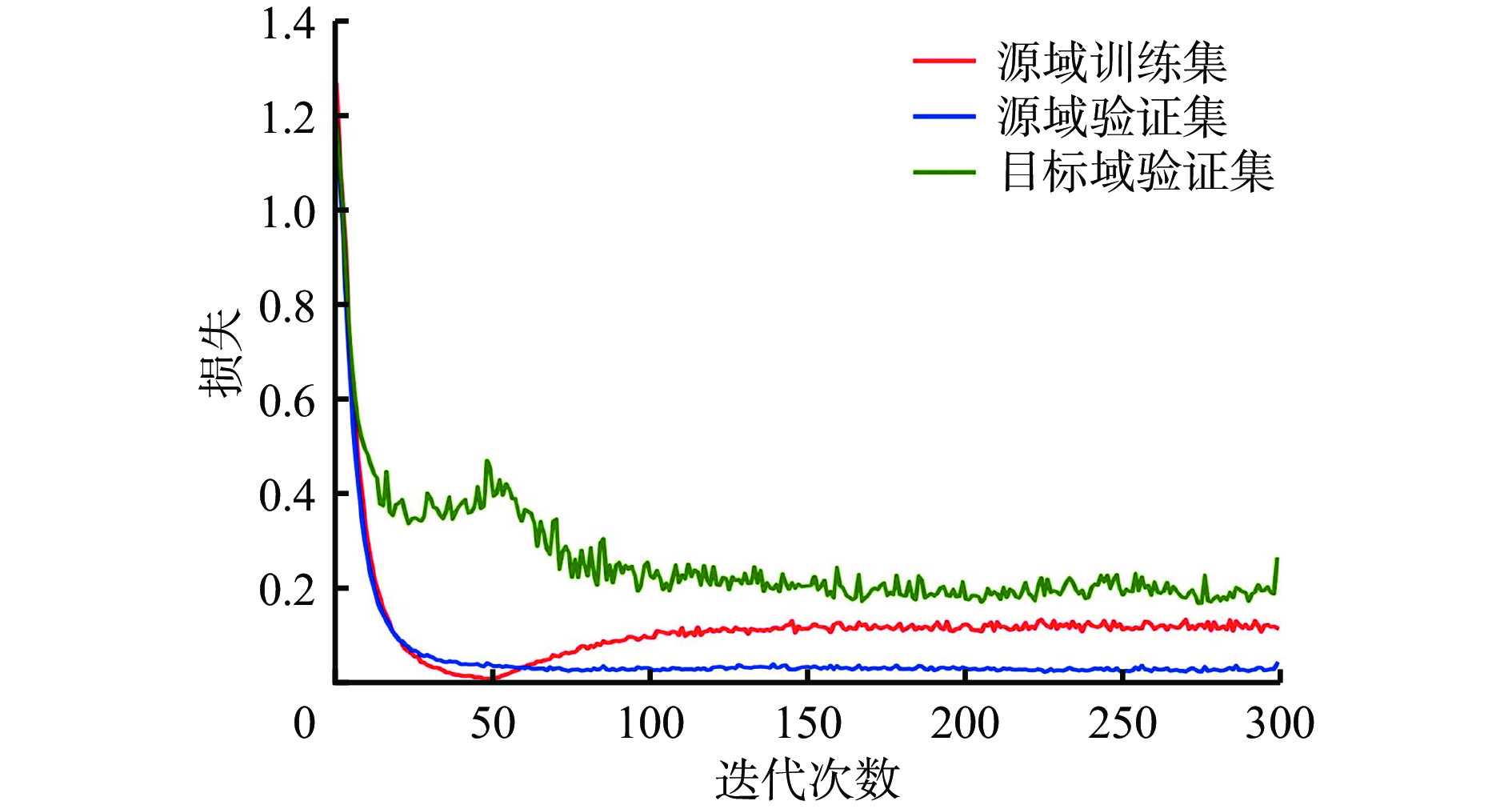

Figure 6. Variation trends of model loss under fixed parameter settings
表 1 模型参数
Table 1 Model parameters
层 核尺寸 核数量 步长 输出尺寸 输入层 — — — 64×64×1 Conv 5×5 16 1 60×60×16 Pooling 5×5 16 2 30×30×16 Conv 5×5 32 1 26×26×32 Pooling 5×5 32 2 13×13×32 Flatten — — — 1 024 FC — — — 256 FC — — — 256 FC — — — 4
下载: 导出CSV
表 2 煤矿井下设备音频跨域学习任务数据集
Table 2 Dataset of underground coal mining equipment audio signals for cross-domain learning tasks
任务 转速/（r·min−1） 0 500 1 700 2 900
下载: 导出CSV
表 3 不同学习率下故障诊断准确率
Table 3 Fault diagnosis accuracy rates at different learning rates
学习率 迁移任务 平均
准确率/%标准差 0—1 0—2 1—0 1—2 2—0 2—1 0.001～0.000 01 0.9816 0.9633 0.9589 0.9735 0.9525 0.9896 96.99 0.014 0.001 0.9423 0.9601 0.9452 0.9612 0.8922 0.9534 94.24 0.025 0.000 1 0.9354 0.8755 0.9025 0.9145 0.8633 0.9612 90.87 0.036 0.000 01 0.9522 0.8647 0.9254 0.9412 0.8511 0.9587 91.55 0.046
下载: 导出CSV
表 4 不同平衡超参数下故障诊断准确率
Table 4 Fault diagnosis accuracy rates under different balance hyperparameters
平衡
超参数迁移任务 平均
准确率/%标准差 0—1 0—2 1—0 1—2 2—0 2—1 0～1 0.9816 0.9633 0.9589 0.9735 0.9525 0.9896 96.99 0.014 0.5 0.9391 0.9093 0.9281 0.89534 0.9382 0.9515 92.69 0.020 1.0 0.9799 0.9302 0.9233 0.9586 0.8956 0.9413 93.81 0.029
下载: 导出CSV
表 5 不同模型的诊断精度
Table 5 Diagnosis accuracy of different models

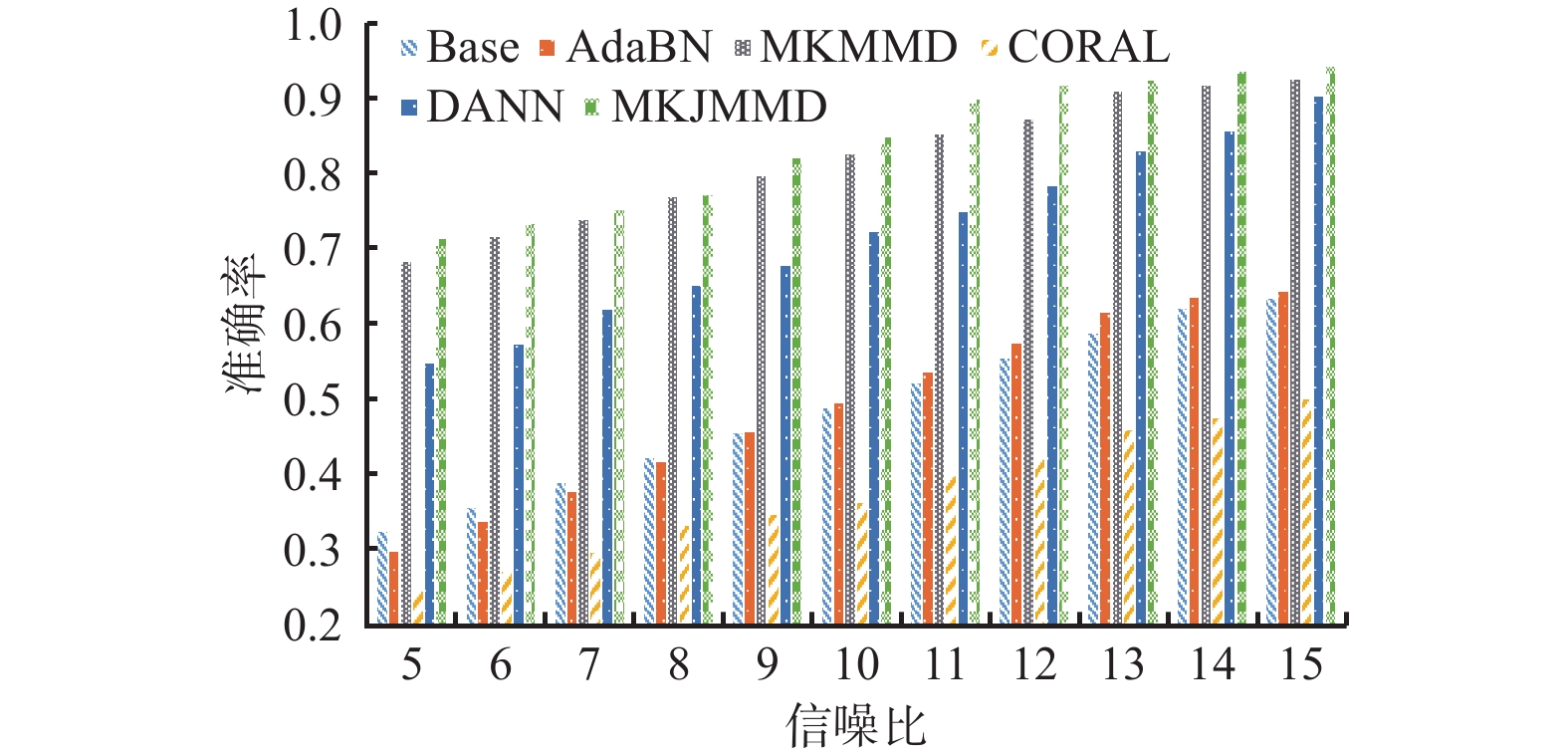

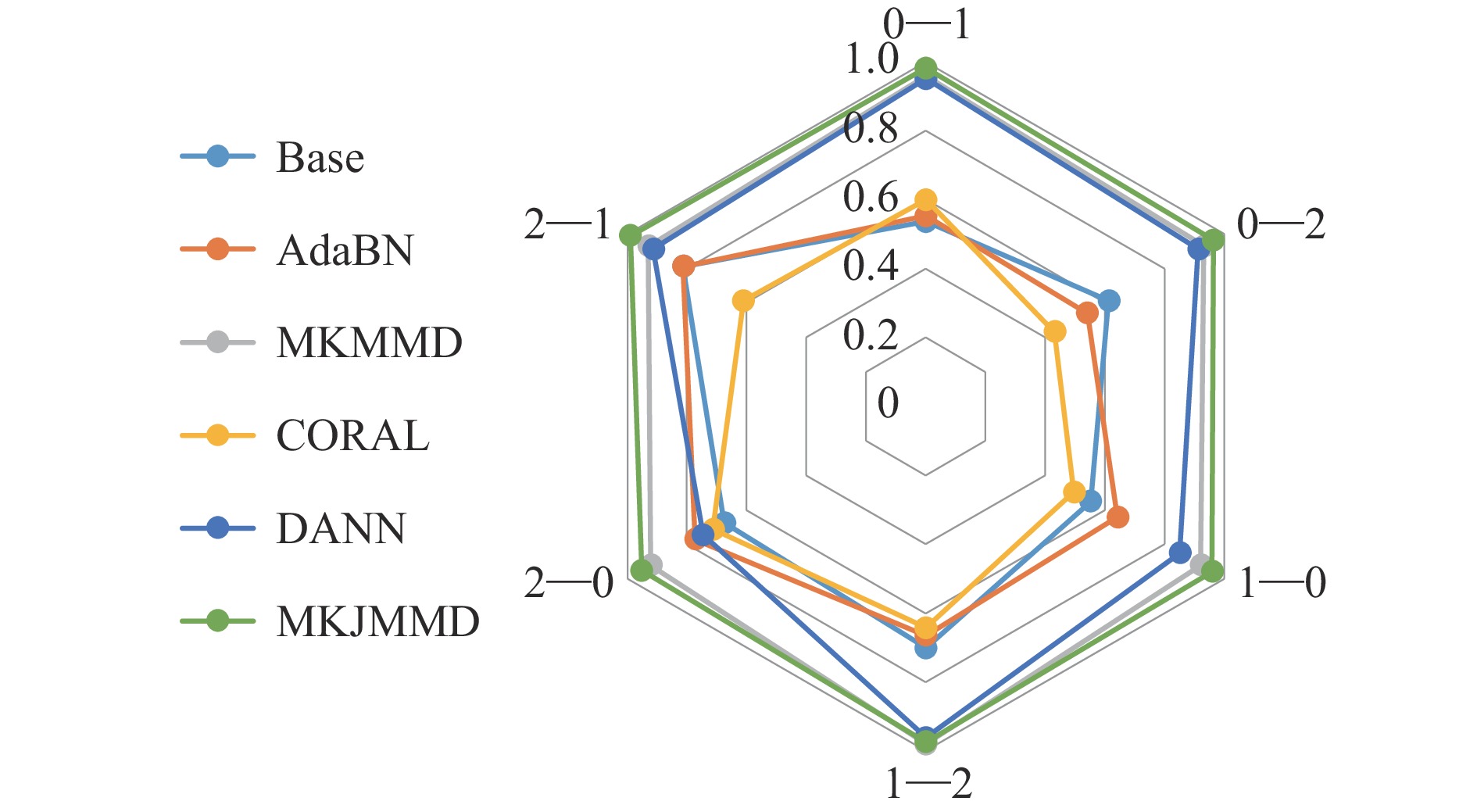

模型 迁移任务 平均准确率/% 标准差 0—1 0—2 1—0 1—2 2—0 2—1 Base 0.5115 0.6072 0.5781 0.6992 0.6685 0.8251 64.79 0.103 AdaBN 0.5263 0.5537 0.6731 0.6594 0.6454 0.9033 66.43 0.111 MKMMD 0.9699 0.9247 0.9365 0.9816 0.9164 0.9365 94.03 0.023 CORAL 0.6184 0.5067 0.5017 0.6134 0.7408 0.5418 58.27 0.101 DANN 0.9649 0.9365 0.8712 0.9515 0.801 0.9482 88.93 0.079 MKJMMD 0.9816 0.9633 0.9589 0.9735 0.9525 0.9896 96.99 0.014
下载: 导出CSV
-
