Multi-source information fusion based underground autonomous mapping and localization method
-
摘要:
由于煤矿井下环境恶劣，基于单源里程信息的建图方法易出现偏移、遮挡、缺失语义特征等现象，现有主流定位算法应用于煤矿井下时存在定位失准等现象。针对上述问题，提出一种基于多源信息融合的井下无人驾驶建图与定位方法。采用基于多源信息融合的RTAB−Map算法建图，通过融合点云与图像信息，显著降低建图偏移，提高特征捕捉能力；采用自适应蒙特卡罗定位（AMCL）算法实现精准定位，结合激光雷达与运动信息，利用粒子滤波、位姿预测与重采样实现自适应定位，减少定位失准和建图漂移问题。仿真及试验结果表明：相较单一轮式里程计，基于多源信息融合的RTAB−Map建图相对误差绝对值缩减到1%以内，地图匹配度更高，提升了建图可靠性；基于AMCL算法的定位粒子能够在2 m内迅速收敛，满足无人驾驶辅助运输车辆的定位要求。
-
关键词:
- 井下无人驾驶 /
- SLAM /
- 多源信息融合 /
- RTAB−Map算法 /
- AMCL算法
Abstract:Due to the harsh environment in coal mines underground, mapping methods based on single-source odometry information are prone to issues such as drift, occlusion, and missing semantic features. Existing mainstream localization algorithms applied underground in coal mines often encounter localization errors. To address these issues, this paper proposed an underground autonomous mapping and localization method based on multi-source information fusion. The mapping was performed using the multi-source information fusion-based RTAB-Map algorithm, which significantly reduced mapping drift and improved feature capture ability by fusing point cloud and image data. Precise localization was achieved using the Adaptive Monte Carlo Localization (AMCL) algorithm, which combined LiDAR and motion information and employed particle filtering, pose prediction and resampling to achieve adaptive localization, thereby reducing localization inaccuracies and mapping drift. Simulation and experimental results showed that, compared with a single wheel odometry, the absolute value of the relative error of RTAB-Map mapping based on multi-source information fusion was reduced to within 1%, and the map matching accuracy was higher, improving mapping reliability. Particles using the AMCL algorithm converged rapidly within 2 meters, meeting the localization requirements of autonomous auxiliary transport vehicles.
-
-
![]()

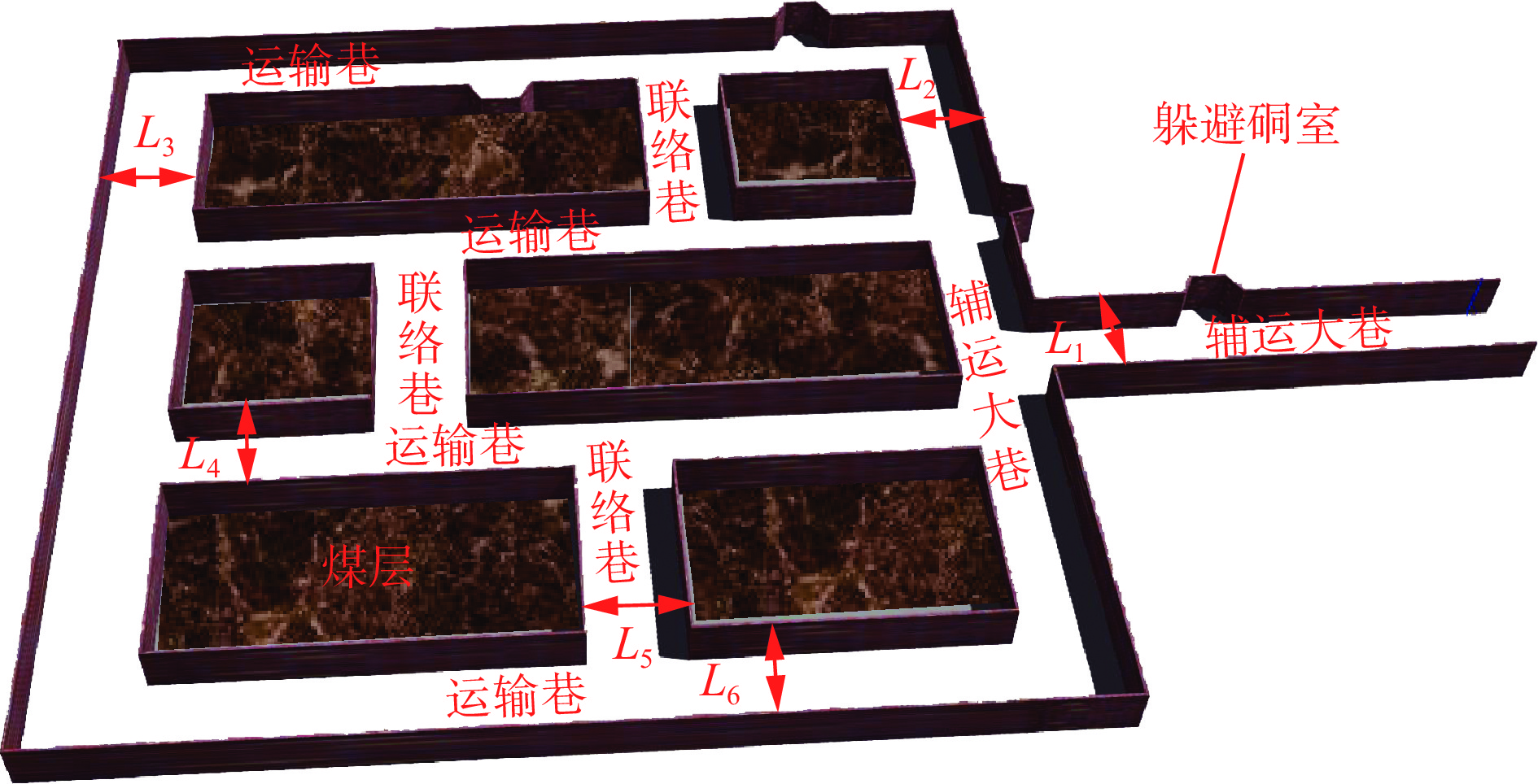

图 7 基于轮式里程计的RTAB−Map建图仿真效果
Figure 7. Simulation result of RTAB-Map mapping based on wheel odometer
![]()
图 8 基于多源信息融合的RTAB−Map建图仿真效果
Figure 8. Simulation result of RTAB-Map mapping based on multi-source information fusion
![]()

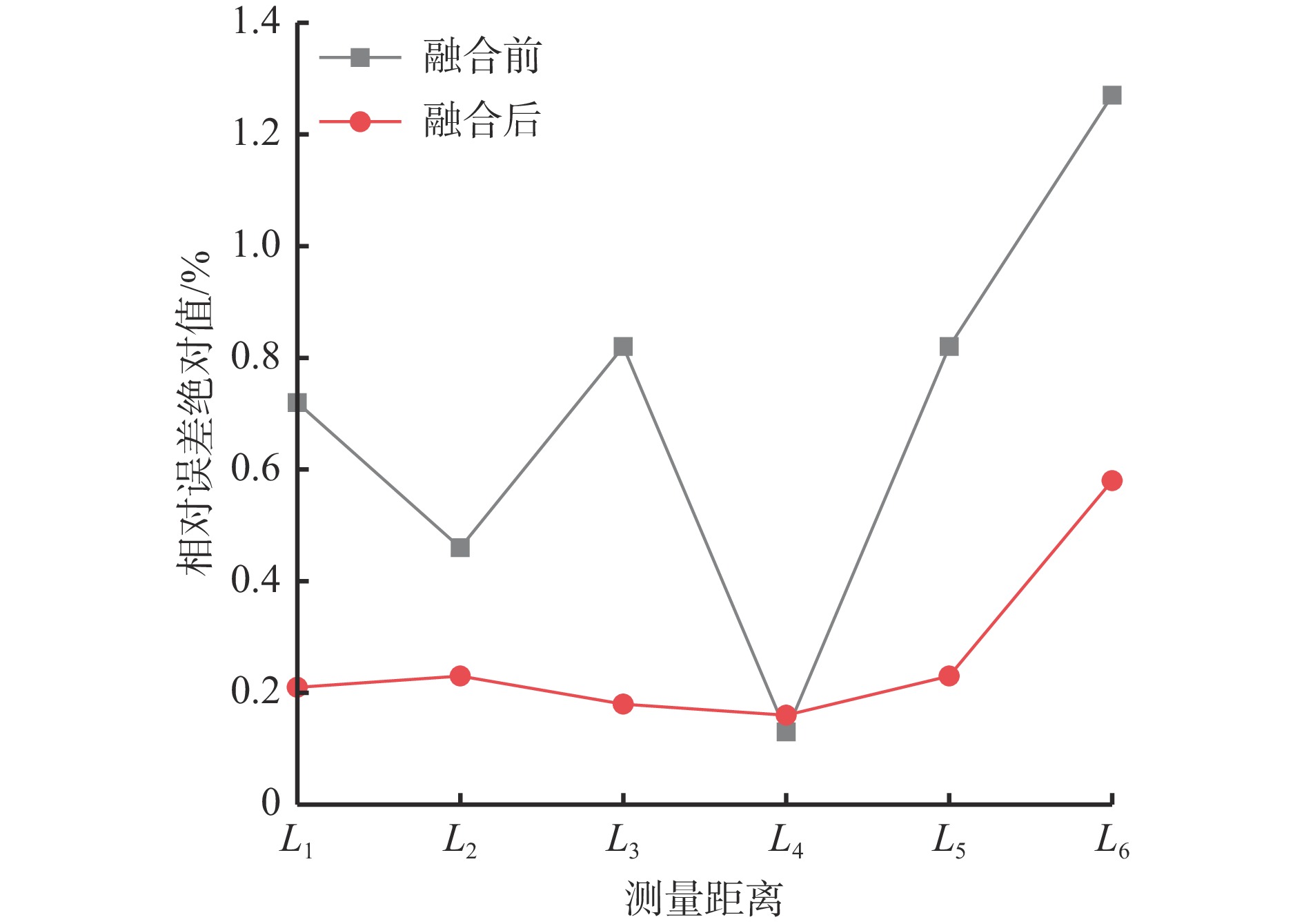

图 9 融合多源信息前后仿真误差绝对值对比
Figure 9. Comparison of absolute simulation errors before and after multi-source information fusion
![]()
图 13 基于轮式里程计的RTAB−Map建图试验效果
Figure 13. Test results of RTAB-Map mapping based on wheel odometer
![]()

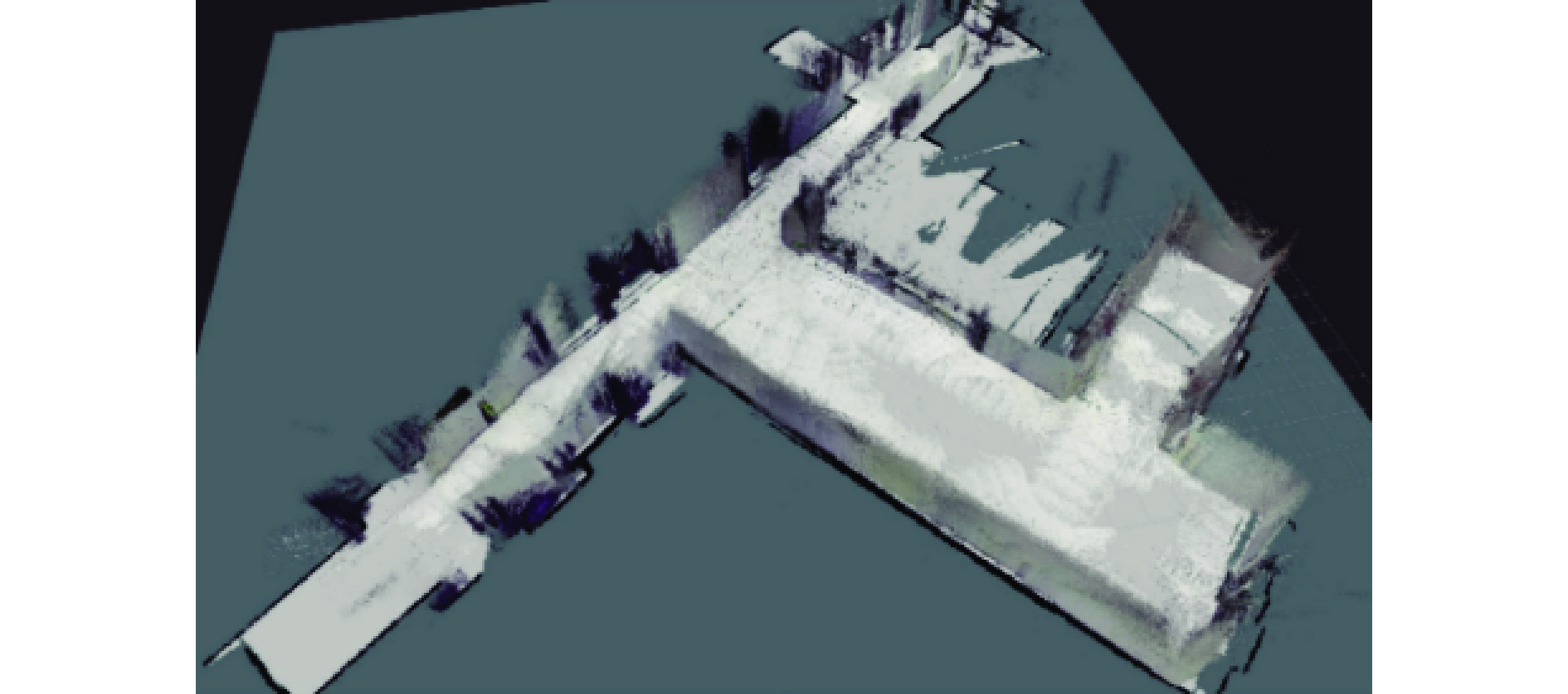

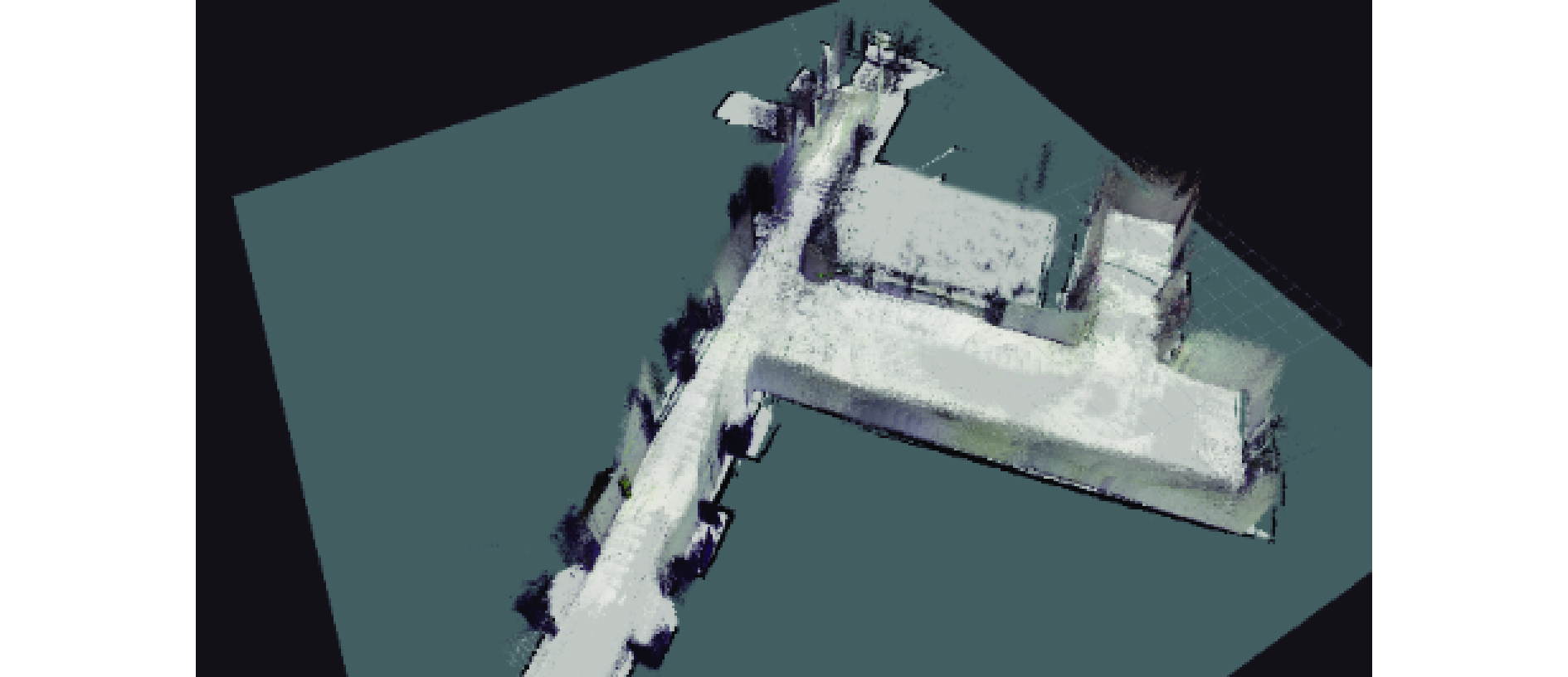

图 14 基于多源信息融合的RTAB−Map建图试验效果
Figure 14. Test results of RTAB-Map mapping based on multi-source information fusion
![]()

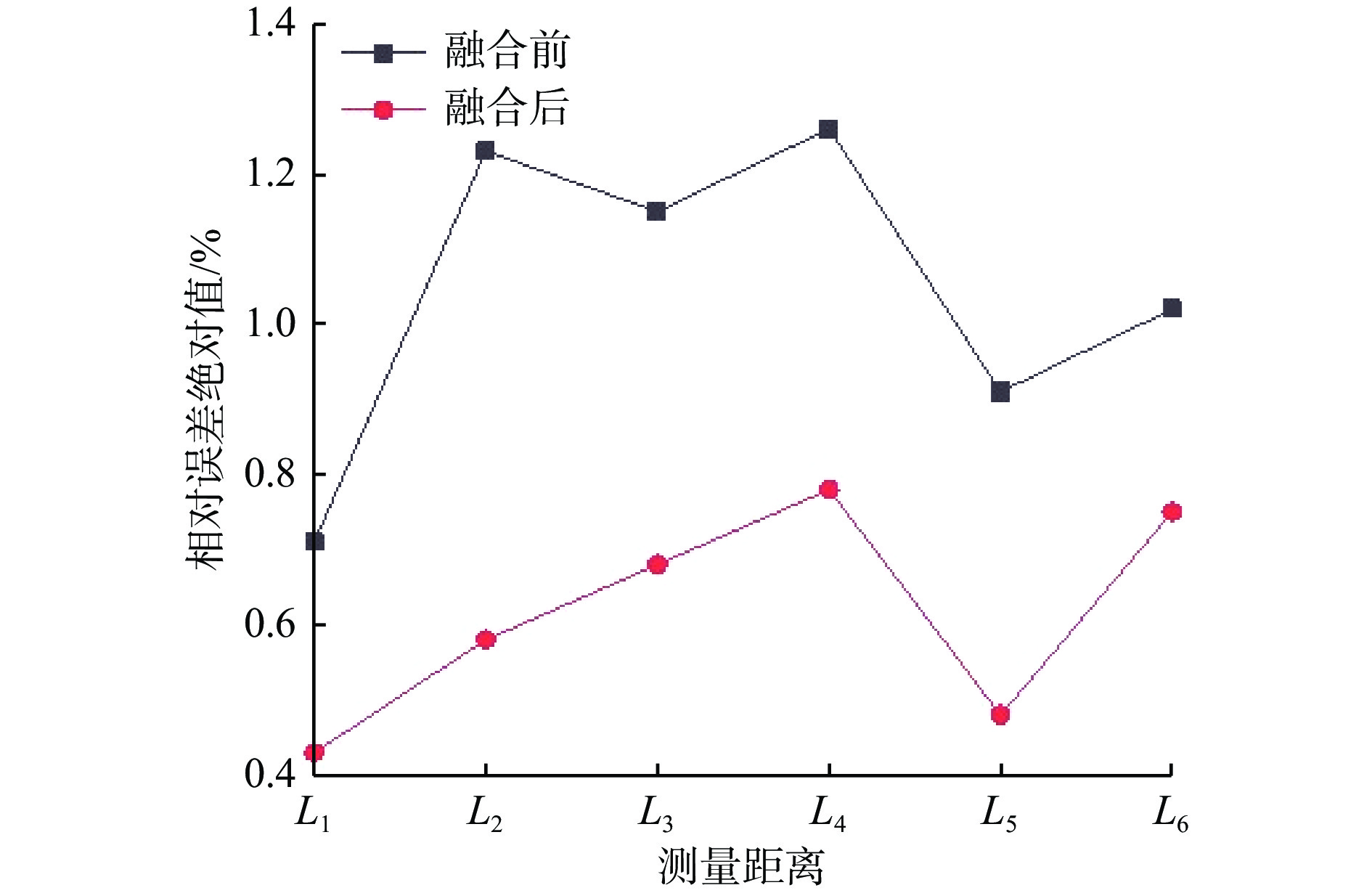

图 15 融合多源里程计前后试验误差绝对值对比
Figure 15. Comparison of absolute values of test errors before and after fusion of multi-source odometry
表 1 基于轮式里程计的RTAB−Map建图仿真误差
Table 1 RTAB-Map mapping simulation errors based on wheel odometer
测量距离 实际值/cm 图测值/cm 绝对误差/cm 相对误差绝对值/% L1 242 243.4 +1.4 0.72 L2 692 695.1 +3.1 0.45 L3 371 368.1 −2.9 0.78 L4 957 958.1 +1.1 0.11 L5 1 538 1 524.7 −13.3 0.86 L6 1 834 1 811.1 +22.9 1.24
下载: 导出CSV
表 2 基于多源信息融合的RTAB−Map建图仿真误差
Table 2 RTAB-Map mapping simulation errors based on multi-source information fusion
测量距离 实际值/cm 图测值/cm 绝对误差/cm 相对误差绝对值/% L1 242 242.5 +0.5 0.21 L2 692 693.5 +1.5 0.22 L3 371 370.5 −0.5 0.13 L4 957 957.7 +0.7 0.07 L5 1 538 1 534.7 −3.3 0.21 L6 1 834 1 823.5 −10.5 0.57
下载: 导出CSV
表 3 AMCL算法在不同阶段的收敛效果（仿真）
Table 3 Convergence performance of AMCL localization algorithm at different stages (simulation)
下载: 导出CSV
表 4 基于轮式里程计的RTAB−Map建图试验误差
Table 4 Error in RTAB-Map mapping test based on wheel odometer
测量距离 实际值/cm 图测值/cm 绝对误差/cm 相对误差绝对值/% L1 356 358.6 +2.6 0.72 L2 692 699.1 +7.1 1.03 L3 251 248.1 −2.9 1.15 L4 798 808.1 +10.1 1.27 L5 1216 1204.7 −11.3 0.93 L6 1793 1811.1 +18.1 1.01
下载: 导出CSV
表 5 基于多源信息融合的RTAB−Map建图试验误差
Table 5 Error in RTAB-Map mapping experiment based on multi-source information fusion
测量距离 实际值/cm 图测值/cm 绝对误差/cm 相对误差绝对值/% L1 356 357.5 +1.5 0.43 L2 692 687.8 −4.2 0.60 L3 251 249.2 −1.8 0.71 L4 798 804.6 +6.6 0.83 L5 1216 1209.7 −6.3 0.52 L6 1793 1803.9 +10.9 0.61
下载: 导出CSV
表 6 AMCL算法在不同阶段的收敛效果（试验）
Table 6 Convergence effect of AMCL algorithm at different stages (test)
下载: 导出CSV
表 7 基于不同信息源的建图误差
Table 7 Mapping errors based on different information sources
实验组别 平均绝对误差/cm 相对误差/% 激光+IMU 12.3 2.1 相机+IMU 9.7 1.4 激光+相机 5.8 0.8 多源融合 3.1 0.4
下载: 导出CSV
表 8 不同速度条件下的建图误差
Table 8 Mapping errors at different speed conditions
速度/（km·h−1） 绝对轨迹误差/cm 收敛距离/m 最大瞬时误差/cm 10 7.2 4.2 27.9 30 7.6 4.5 28.1 40 7.8 4.8 28.4
下载: 导出CSV
-
