基于吸引−排斥算法的精准分风方案决策

倪景峰; 陈敦炜; 刘玉娇

doi:10.13272/j.issn.1671-251x.2024110006

基于吸引−排斥算法的精准分风方案决策

倪景峰^{1, 2,},
陈敦炜^{1, 2},
刘玉娇^{1, 2}

1.
辽宁工程技术大学安全科学与工程学院，辽宁阜新　123000
2.
辽宁工程技术大学矿山热动力灾害与防治教育部重点实验室，辽宁阜新　123000

基金项目:

国家自然科学基金青年基金项目(52104194)。

详细信息

作者简介:
倪景峰（1975—），男，河北承德人，教授，博士，主要从事通风（流体）网络算法、矿井智能通风、矿井灾变通风与救援等方面的研究工作，E-mail：njf_3829@163.com

中图分类号: TD724
计量
- 文章访问数: 29
- HTML全文浏览量: 4
- PDF下载量: 5
出版历程
- 收稿日期: 2024-11-03
- 修回日期: 2025-04-13
- 网络出版日期: 2025-04-08
- 刊出日期: 2025-04-14

Precise wind allocation scheme decision based on attraction-repulsion algorithm

NI Jingfeng^{1, 2,},
CHEN Dunwei^{1, 2},
LIU Yujiao^{1, 2}

1.
Safety Science and Engineering College, Liaoning Technical University, Fuxin 123000, China
2.
Key Laboratory of Mine Thermodynamic Disasters and Control of Ministry of Education, Liaoning Technical University, Fuxin 123000, China

摘要

摘要:
为解决井下生产作业过程中由于矿井通风设施和风网结构变化导致的通风系统分支风量波动，进而引发的用风地点风量不足问题，提出了一种基于吸引−排斥算法（AROA）的精准分风方法。以通风机功耗最小化为优化目标，工作面与备用面的需风量为约束条件，建立矿井通风系统数学模型。采用AROA，通过精准调控通风机及井下既有通风设施，迭代生成优化解。优化过程中，融合改进布朗运动、三角函数变换、随机解选择机制与记忆型局部搜索算子，对候选解实施动态筛选与精准调优，最终实现通风运行成本最优的精准分风方案。性能测试结果表明：与遗传算法（GA）、模拟退火−改进粒子群算法（SA−IPSO）和单调盆地跳跃算法（MBH）相比，AROA在综合寻优性能方面优势显著；在求解Ackley函数时，其获取最优解与平均最优解所经历的迭代次数均少于GA，SA−IPSO和MBH。实例分析结果表明：采用基于AROA的精准分风算法所确定的精准分风方案后，风窗面积调节量达50.4%；左翼通风机功率从131.72 kW降至97.95 kW，降幅达25.6%；右翼通风机功率从188.22 kW降至146.62 kW，降幅达22.1%；总节能率达23.56%。某煤矿实际应用结果表明：采用基于AROA的精准分风算法所确定的精准分风方案后，通风机风量降低了11.2%，通风机风压下降了10.1%，功率降低了20.7%。
- 矿井通风 /
- 精准分风 /
- 吸引−排斥算法 /
- 分窗面积 /
- 通风机风压 /
- 通风机分量
Abstract:
To address the issue of fluctuating branch airflow in the ventilation system caused by changes in mine ventilation facilities and air network structure during underground production operations, which in turn leads to insufficient airflow at consumption points, a precise wind allocation algorithm based on the Attraction-Repulsion Optimization Algorithm (AROA) is proposed. The ventilation fan power consumption minimization was set as the optimization objective, with the required airflow for working and standby faces as constraints, and a mathematical model of the mine ventilation system was established. By employing AROA, the ventilation fan and existing underground ventilation facilities were precisely controlled, and an optimized solution was iteratively generated. During the optimization process, an improved Brownian motion, trigonometric function transformation, random solution selection mechanism, and memory-based local search operator were integrated to dynamically filter and fine-tune candidate solutions, ultimately achieving an optimal precise wind allocation plan with the lowest ventilation operation cost. Performance test results showed that AROA had a significant advantage in comprehensive optimization performance compared to Genetic Algorithm (GA), Simulated Annealing-Improved Particle Swarm Optimization (SA-IPSO), and Monotonic Basin Hopping (MBH). When solving the Ackley function, AROA required fewer iterations to obtain the optimal and average optimal solutions compared to GA, SA-IPSO, and MBH. Case study results showed that the precise wind allocation scheme determined by the AROA-based algorithm resulted in a 50.4% adjustment in the air window area. The left-wing fan power decreased from 131.72 kW to 97.95 kW (a reduction of 25.6%), and the right-wing fan power decreased from 188.22 kW to 146.62 kW (a reduction of 22.1%), achieving a total energy-saving rate of 23.56%. Actual application results in a coal mine demonstrated that the AROA-based algorithm reduced the fan airflow by 11.2%, while the fan air pressure decreased by 10.1%, ultimately achieving a 20.7% reduction in power consumption. The precise wind allocation scheme determined by the AROA-based algorithm reduced fan air pressure by 10.1%, fan airflow by 11.2%, and power by 20.7%.
- mine ventilation /
- precise wind allocation /
- Attraction-Repulsion Algorithm /
- window area /
- fan air pressure /
- fan airflow

HTML全文

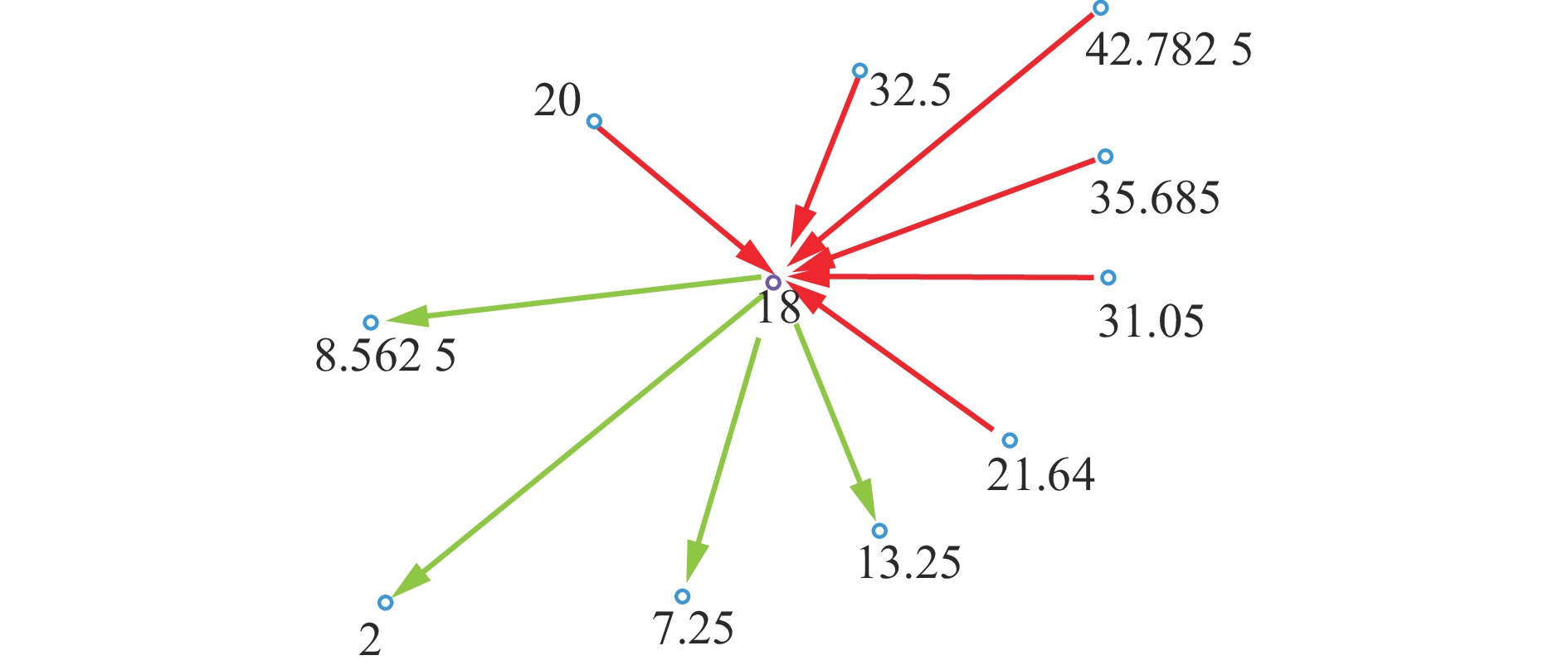

图 1 候选解的相互作用及其位置更新机制

Figure 1. Interaction of candidate solutions and their position update mechanisms

下载: 全尺寸图片幻灯片

图 2 平均最优解曲线

Figure 2. Average optimal solution curves

下载: 全尺寸图片幻灯片

图 3 算法收敛曲线

Figure 3. Algorithm convergence curves

下载: 全尺寸图片幻灯片

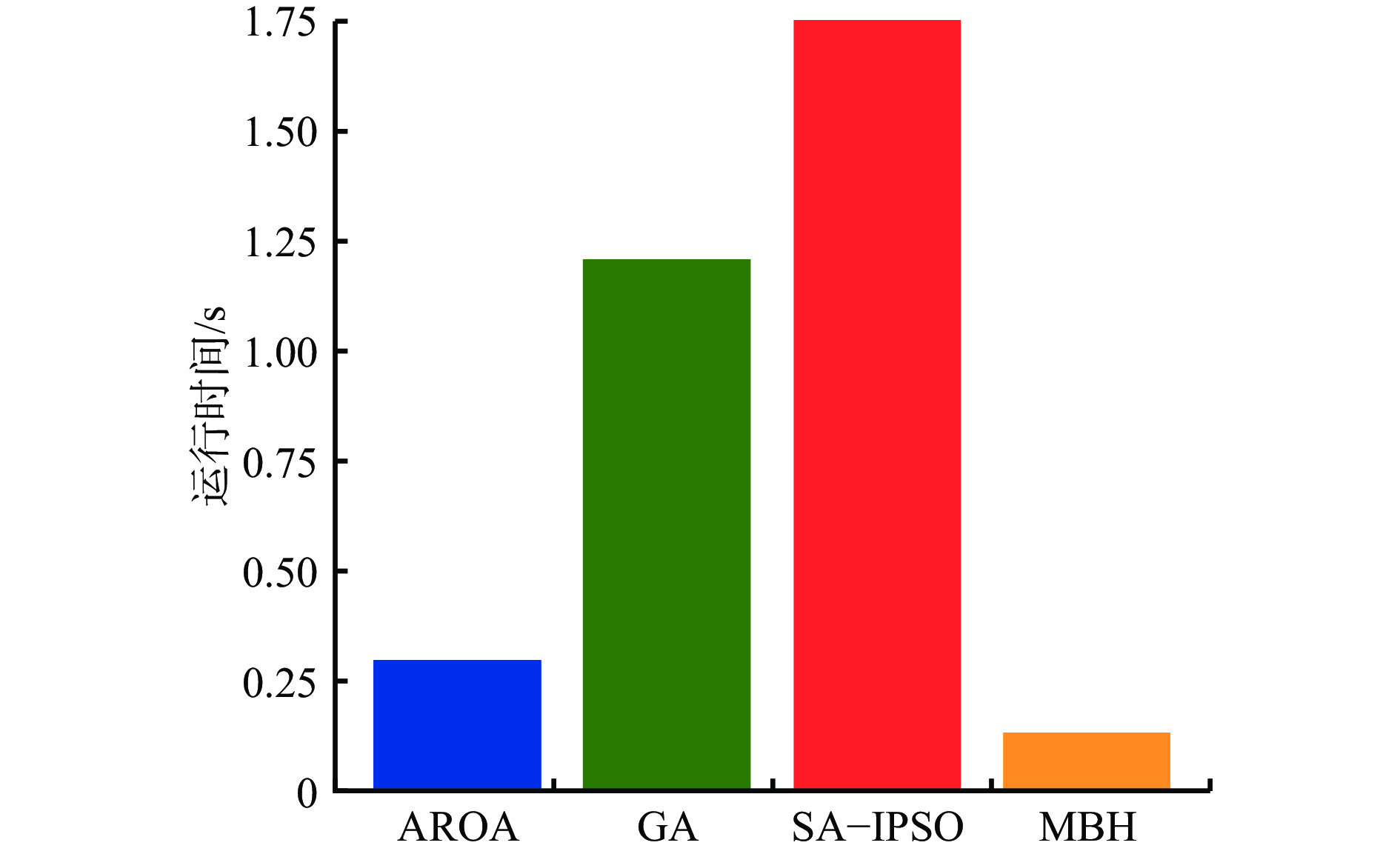

图 4 算法执行时间

Figure 4. Algorithm execution time

下载: 全尺寸图片幻灯片

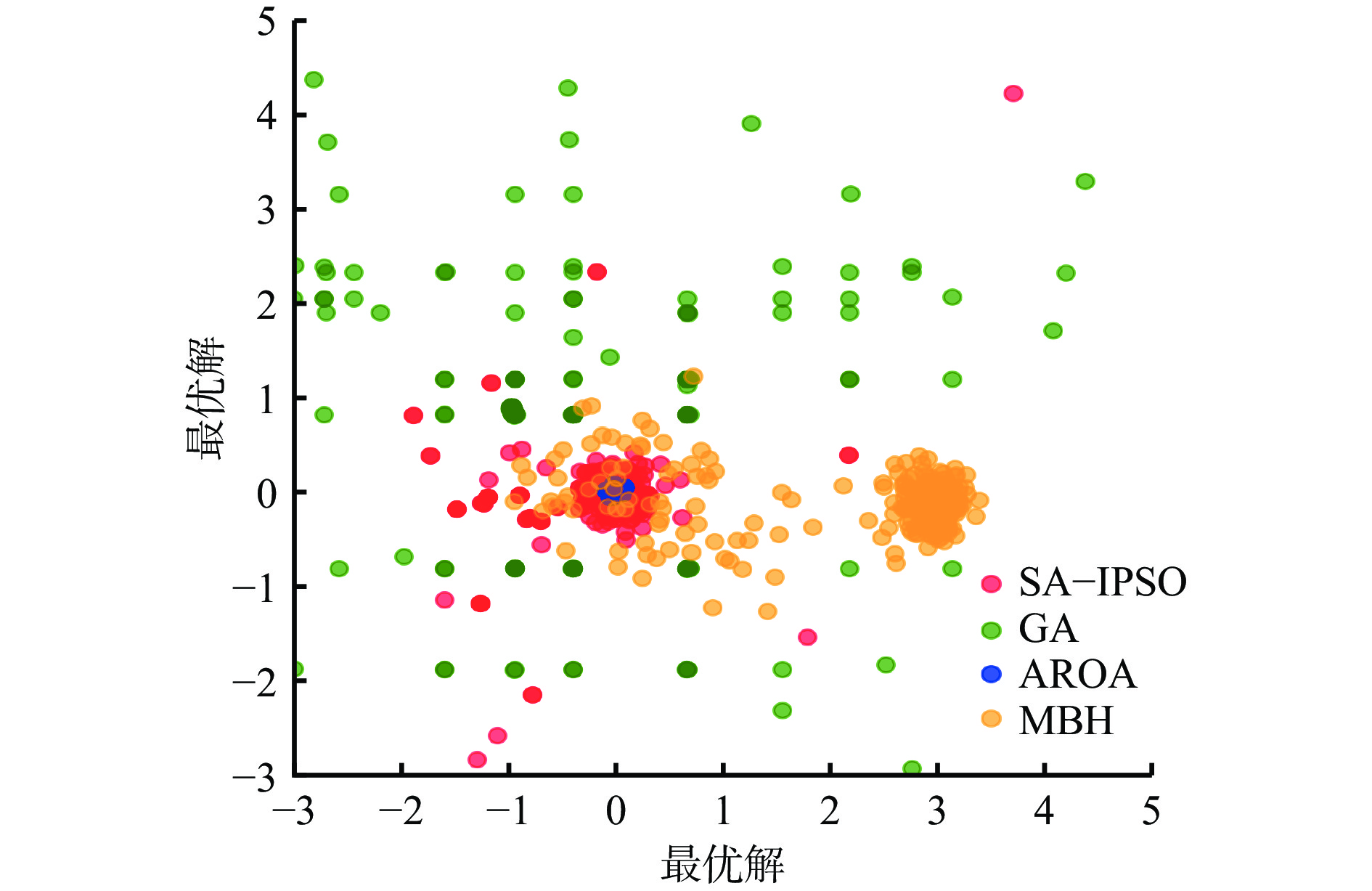

图 5 最优解分布

Figure 5. Optimal solution distribution

下载: 全尺寸图片幻灯片

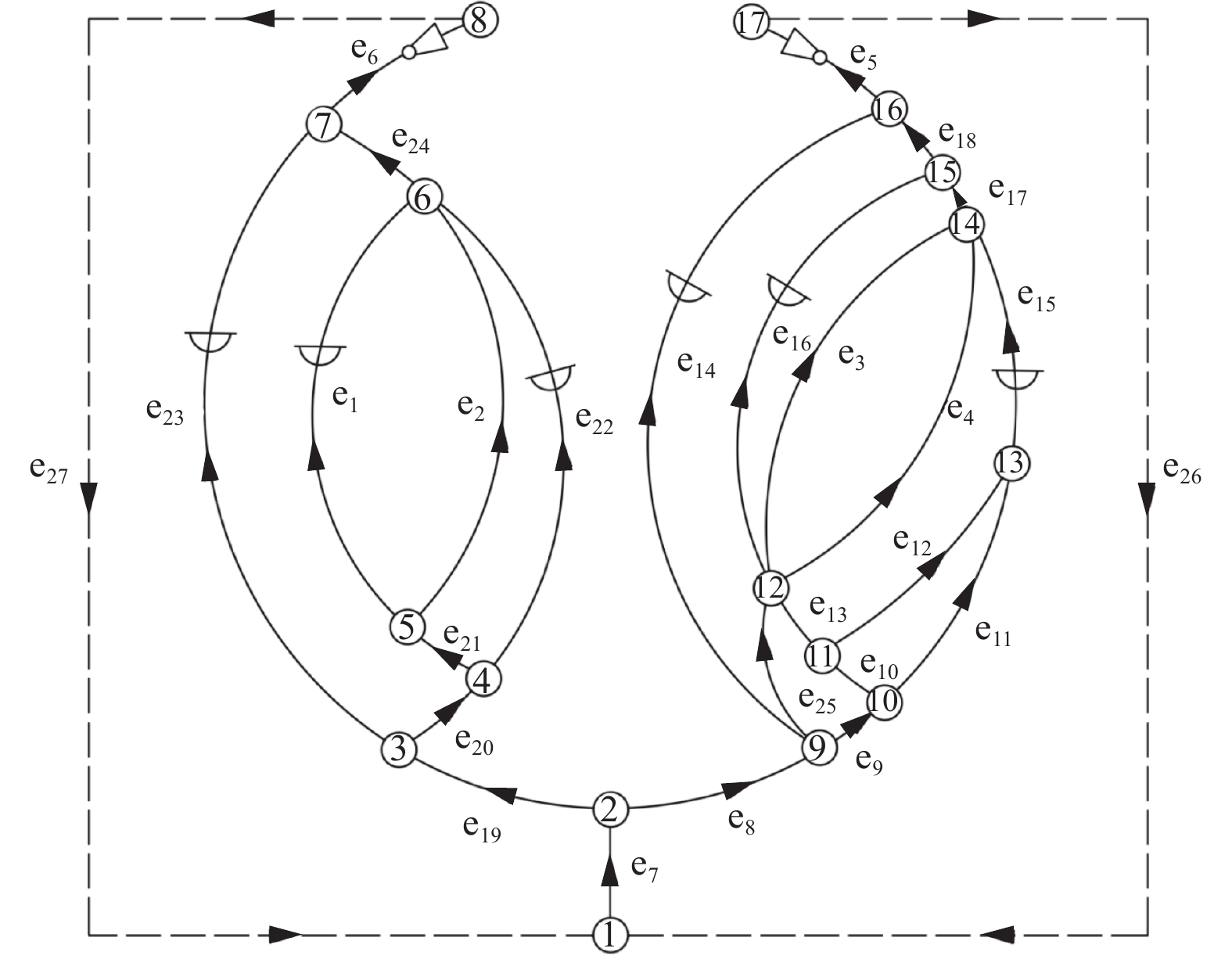

图 6 矿井通风网络拓扑结构

Figure 6. Mine ventilation network topology

下载: 全尺寸图片幻灯片

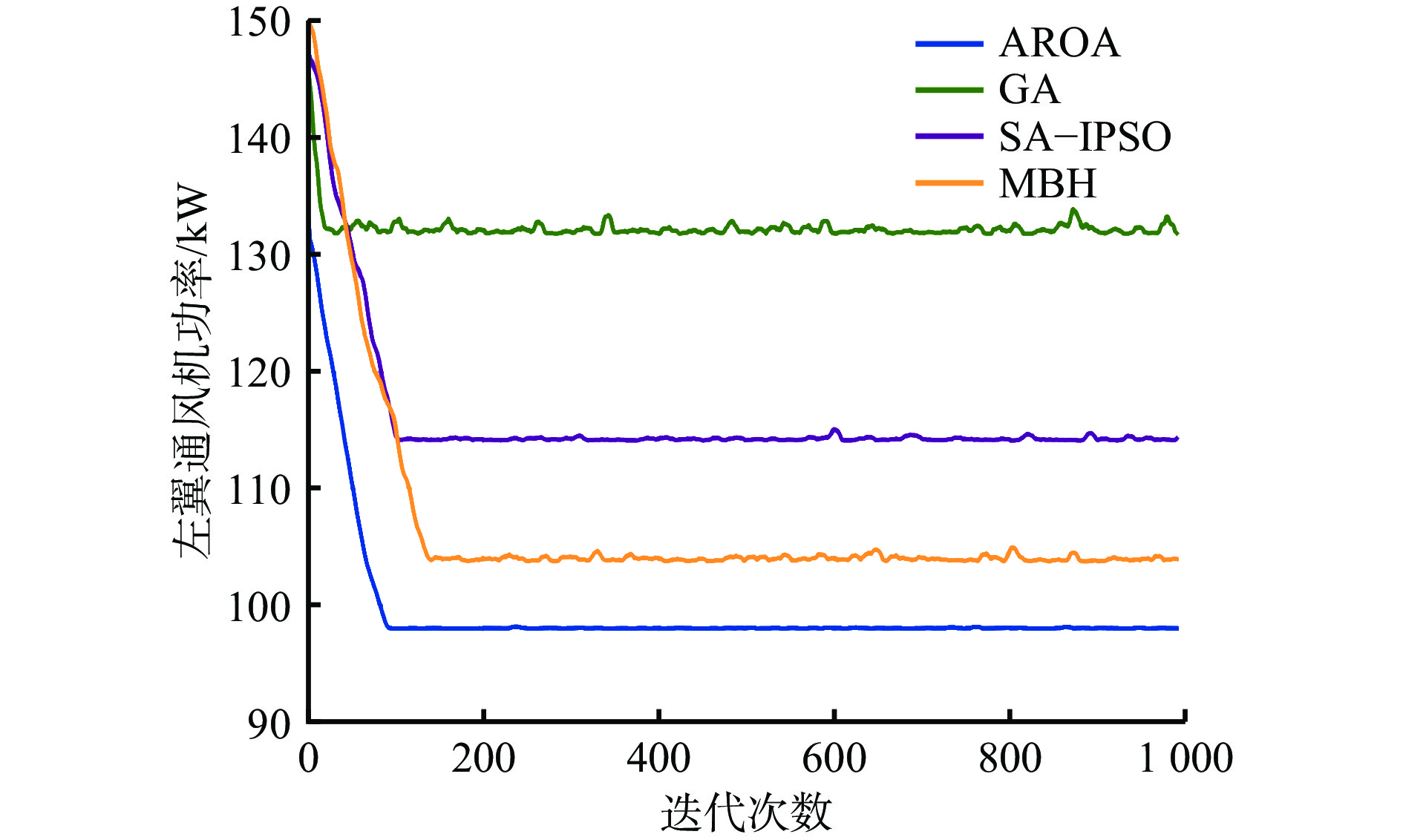

图 7 左翼通风机功率曲线

Figure 7. Left wing ventilator power curves

下载: 全尺寸图片幻灯片

图 8 右翼通风机功率曲线

Figure 8. Right wing ventilator power curves

下载: 全尺寸图片幻灯片

图 9 唐安煤矿通风网络拓扑结构

Figure 9. Topology of the ventilation network of Tang'an Coal Mine

下载: 全尺寸图片幻灯片

表 1 矿井通风网络基本参数

Table 1 Basic parameters of mine ventilation network

分支编号	始节点	末节点	风阻/ （kg·m⁻⁷）	风量/ （m³∙s⁻¹）	风窗面积/m²	是否可调节
e₁	5	6	0.13	16	1.37	是
e₅	16	17	0.11	100	—	是
e₆	7	8	0.13	80	—	是
e₁₄	9	16	0.14	25	1.5	是
e₁₅	13	14	0.08	8	0.68	是
e₁₆	12	15	0.09	3	0.23	是
e₂₂	4	6	0.02	19.28	1.45	是
e₂₃	3	7	1.81	12.72	1.03	是

下载: 导出CSV

表 2 巷道精准分风方案结果统计

Table 2 Statistics of precision wind allocation scheme for roadways

分支编号	GA算法			SA−IPSO算法			MBH算法			AROA算法
分支编号	风量/ （m³∙s⁻¹）	调节阻力/Pa	风窗面积/m²	风量/ （m³∙s⁻¹）	调节阻力/Pa	风窗面积/m²	风量/ （m³∙s⁻¹）	调节阻力/Pa	风窗面积/m²	风量/ （m³∙s⁻¹）	调节阻力/Pa	风窗面积/m²
e₁	16.00	169	1.49	16.00	169	1.49	16	169	1.39	16	169	1.49
e₁₄	20.00	349	1.30	12.00	385	0.74	8	396	0.49	6	400	0.36
e₁₅	8.00	198	0.69	8.00	169	1.49	8	198	0.69	8	198	0.69
e₁₆	3.00	296	0.21	3.00	296	0.21	3	296	0.21	3	296	0.21
e₂₂	11.48	209	0.96	4.41	211	0.37	2	211	0.17	2	211	0.17

下载: 导出CSV

表 3 各算法运行效果比较

Table 3 Comparison of algorithm performance

算法	左翼通风			右翼通风机			节能率/%
算法	功率/kW	风量/（m³·s⁻¹）	风压/Pa	功率/kW	风量/（m³·s⁻¹）	风压/Pa	节能率/%
GA	131.72	75	1405	188.22	95	1585	—
SA−IPSO	114.07	67	1362	167.21	87	1532	13.05
MBH	103.70	62	1338	154.21	83	1490	5.17
AROA	97.95	60	1306	146.62	81	1457	23.56

下载: 导出CSV

表 4 唐安煤矿通风网络调节参数

Table 4 Adjustment parameters for the ventilation network of Tang'an Coal Mine

分支编号	始节点	末节点	风阻/ （kg·m⁻⁷）	风量/ （m³∙s⁻¹）	风窗面积/m²	是否可调节
e₇	6	7	0.75	19.88	3.05	是
e₈	7	8	0.04	3.76	0.15	是
e₂₂	25	50	0.01	1.77	0.06	是
e₃₀	59	14	0.64	21.88	0.86	是
e₄₀	24	21	0.30	10.40	1.53	是
e₄₆	31	21	0.01	0.20	0.03	是
e₄₉	32	10	0.08	5.91	0.37	是
e₅₁	33	50	0.20	5.09	0.15	是
e₅₉	40	41	0.04	3.34	0.22	是
e₆₂	35	41	0.01	0.27	0.05	是
e₆₆	44	45	0.58	21.16	1.80	是
e₆₈	30	81	0.01	0.20	0.02	是
e₆₉	81	13	0.28	14.00	0.52	是
e₇₀	29	59	0.01	0.20	0.01	是
e₈₃	47	48	0.01	1.69	1.36	是
e₈₅	77	78	0.01	1.71	0.23	是
e₈₆	78	74	0.06	5.01	0.18	是
e₈₈	79	80	0.04	3.68	0.13	是
e₉₅	75	73	0.01	0.20	0.04	是
e₉₇	61	66	0.94	8.37	1.17	是
e₁₀₈	66	65	0.03	2.20	0.41	是
e₁₁₂	52	51	0.28	8.71	2.33	是
e₁₁₅	65	72	2.78	18.57	0.60	是
e₁₁₇	69	70	0.06	4.31	0.15	是
e₁₁₈	68	71	0.25	6.68	0.23	是
e₁₂₁	72	73	2.34	15.40	0.54	是
e₁₂₄	34	42	0.01	0.20	0.01	是
e₁₂₇	85	—	30.83	188.35	—	是

下载: 导出CSV

表 5 唐安煤矿精准分风方案结果统计

Table 5 Statistics of precision wind allocation scheme for Tang’an Coal Mine

分支编号	风量/ （m³∙s⁻¹）	调节阻力/Pa	风窗面积/m²	分支编号	风量/ （m³∙s⁻¹）	调节阻力/Pa	风窗面积/m²
e₇	2.85	302	0.19	e₈₃	2.27	4	1.22
e₈	4.72	699	0.21	e₈₅	13.42	26	2.08
e₂₂	0.62	1367	0.02	e₈₆	14.58	1076	0.52
e₃₀	18.03	928	0.68	e₈₈	2.40	1111	0.09
e₄₀	8.32	41	1.46	e₉₅	3.75	289	0.26
e₄₆	2.7	69	0.38	e₉₇	3.69	1513	0.11
e₄₉	2.34	507	0.12	e₁₀₈	1.56	34	0.31
e₅₁	2.95	1332	0.10	e₁₁₂	3.23	15	0.95
e₅₉	2.70	459	0.15	e₁₁₅	16.56	1353	0.51
e₆₂	3.75	444	0.21	e₁₁₇	3.51	1362	0.11
e₆₆	—	—	—	e₁₁₈	1.74	1360	0.06
e₆₈	2.22	192	0.19	e₁₂₁	7.30	1073	0.26
e₆₉	15.70	944	0.59	e₁₂₄	2.70	992	0.11
e₇₀	2.25	208	0.18	e₁₂₇	167.30	—	—

下载: 导出CSV
