Progress in high-efficiency and energy-saving technologies for large-scale intelligent equipment in coal mines
-
摘要:
煤矿大型智能装备高效节能技术是推动产业转型升级的核心驱动力。聚焦综采、运输、提升、供电等系统高效节能技术，围绕综采工作面10 kV电压升级、智能高效变频调速一体机、煤矿机动设备电动化与井下充换电、无转轴式磁耦合驱动立井提升机4大技术，剖析最新研究进展及关键技术：① 综采工作面10 kV供电系统升级可减少电压及电能损耗，需优化供电系统设计，强化电气安全与高压电气设备保护，并应用安全性能检验技术确保系统可靠运行。② 智能高效变频调速一体机集成变频控制与永磁直驱电动机技术，以及智能控制和预测性维护技术，可提高煤矿设备运行效率、可靠性和节能效果，降低设备故障率和维护成本。③ 井下设备电动化升级依靠高性能锂电池、数字化线控、自动驾驶和智能调度技术，实现零排放、低噪声和高效运行，配合以防爆锂电池电源标准化、快速换电、车桩电协同全时管理、充换电站应急处置为核心的井下充换电技术，降低设备里程焦虑。④ 无转轴式磁耦合驱动提升机通过一体化磁耦合驱动系统、多通道防冲击安全制动系统及关键部件健康管理技术，提升矿井运输效率和设备稳定性，解决了传统提升机能效低、故障率高等问题。
-
关键词:
- 煤矿智能化 /
- 绿色矿山 /
- 煤矿装备高效节能 /
- 工作面10 kV电压升级 /
- 智能高效变频调速一体机 /
- 井下充换电 /
- 无转轴式磁耦合驱动提升机
Abstract:High-efficiency and energy-saving technologies for large-scale intelligent equipment in coal mines are a key driving force for industrial transformation and upgrading. Focusing on high-efficiency and energy-saving technologies in systems such as fully mechanized mining, transportation, hoisting, and power supply, this paper analyzes the latest research progress and key technologies across four areas: 10 kV voltage upgrades at fully mechanized working faces, intelligent high-efficiency variable frequency drive integrated units, electrification and underground charging/swap systems for mobile coal mine equipment, and shaft hoists with shaftless magnetic coupling drives. ① 10 kV power supply system upgrades at fully mechanized working faces can reduce voltage and electric energy losses. This requires optimized power system design, enhanced electrical safety and high-voltage equipment protection, and the application of safety performance testing technologies to ensure reliable operation. ② The intelligent high-efficiency variable frequency drive integrated unit combines variable frequency control and permanent magnet direct drive motor technology with intelligent control and predictive maintenance, improving operational efficiency, reliability, and energy savings while reducing equipment failure rates and maintenance costs. ③ Electrification of underground equipment relies on high-performance lithium batteries, digital drive-by-wire systems, autonomous driving, and intelligent dispatching. This achieves zero emissions, low noise, and high efficiency. Supported by standardized explosion-proof lithium battery power, rapid battery swapping, vehicle-charger coordination with full-time management, and emergency response mechanisms at charging/swap stations, the technology helps alleviate range anxiety in underground operations. ④ The shaftless magnetic coupling drive hoist enhances mine transport efficiency and equipment stability through an integrated magnetic coupling drive system, a multi-channel anti-shock safety braking system, and health management technologies for key components—addressing the low efficiency and high failure rates of traditional hoists.
-
-
![]()

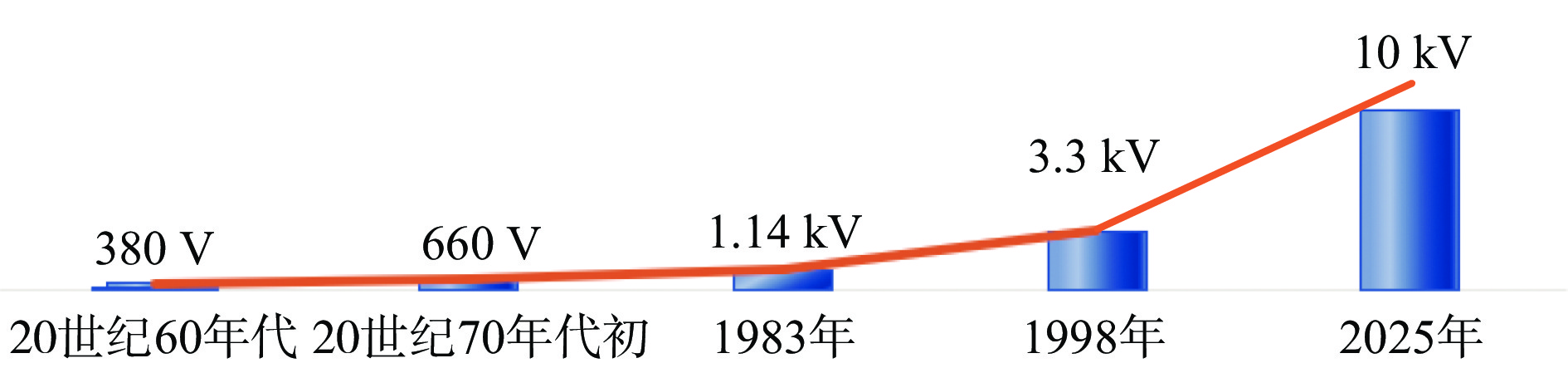

图 1 综采工作面电压升级发展历程
Figure 1. Development history of voltage upgrade at fully mechanized mining faces
![]()

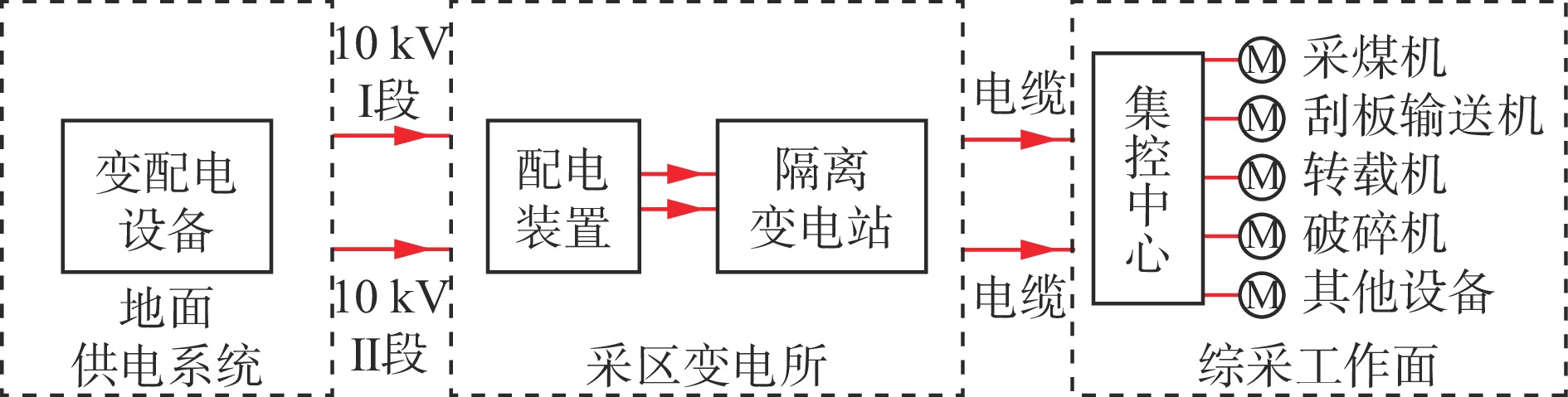

图 2 综采工作面10 kV供电系统网络拓扑
Figure 2. Network topology of 10 kV power supply system at fully mechanized mining faces
![]()
图 3 综采工作面10 kV电压升级技术安全问题
Figure 3. Safety issues in 10 kV voltage upgrade technology at fully mechanized mining faces
-
[1] 王国法,庞义辉,任怀伟,等. 智慧矿山系统工程及关键技术研究与实践[J]. 煤炭学报,2024,49(1):181-202. WANG Guofa,PANG Yihui,REN Huaiwei,et al. System engineering and key technologies research and practice of smart mine[J]. Journal of China Coal Society,2024,49(1):181-202.
[2] 王国法,孟令宇. 煤矿智能化及其技术装备发展[J]. 中国煤炭,2023,49(7):1-13. WANG Guofa,MENG Lingyu. Development of coal mine intelligence and its technical equipment[J]. China Coal,2023,49(7):1-13.
[3] 王国法,杜毅博,陈晓晶,等. 从煤矿机械化到自动化和智能化的发展与创新实践——纪念《工矿自动化》创刊50周年[J]. 工矿自动化,2023,49(6):1-18. WANG Guofa,DU Yibo,CHEN Xiaojing,et al. Development and innovative practice from coal mine mechanization to automation and intelligence:Commemorating the 50th anniversary of the founding of Journal of Mine Automation[J]. Journal of Mine Automation,2023,49(6):1-18.
[4] 梁斌峰. 综采工作面采煤智能化关键技术研究[J]. 矿业装备,2024(8):58-60. DOI: 10.3969/j.issn.2095-1418.2024.08.019 LIANG Binfeng. Research on key technology of shearer intelligent of fully mechanized mining face[J]. Mining Equipment,2024(8):58-60. DOI: 10.3969/j.issn.2095-1418.2024.08.019
[5] 马宏伟,王鹏,张旭辉,等. 煤矿巷道智能掘进机器人系统关键技术研究[J]. 西安科技大学学报,2020,40(5):751-759. MA Hongwei,WANG Peng,ZHANG Xuhui,et al. Research on key technology of intelligent tunneling robotic system in coal mine[J]. Journal of Xi'an University of Science and Technology,2020,40(5):751-759.
[6] 崔邵云,鲍久圣,胡德平,等. SLAM技术及其在矿山无人驾驶领域的研究现状与发展趋势[J]. 工矿自动化,2024,50(10):38-52. CUI Shaoyun,BAO Jiusheng,HU Deping,et al. Research status and development trends of SLAM technology in autonomous mining field[J]. Journal of Mine Automation,2024,50(10):38-52.
[7] 冯亚军,郑金松,许路成. 基于移动机器人的矿山带式输送机自动检测方法[J]. 金属矿山,2024(3):209-214. FENG Yajun,ZHENG Jinsong,XU Lucheng. Automatic detection method of mine belt conveyor based on mobile robot[J]. Metal Mine,2024(3):209-214.
[8] 王国法,巩师鑫,申凯. 煤矿智能安控技术体系与高质量发展对策[J]. 矿业安全与环保,2023,50(5):1-8. WANG Guofa,GONG Shixin,SHEN Kai. Intelligent security control technology system and high-quality development countermeasures for coal mines[J]. Mining Safety & Environmental Protection,2023,50(5):1-8.
[9] 王国法,刘合,王丹丹,等. 新形势下我国能源高质量发展与能源安全[J]. 中国科学院院刊,2023,38(1):23-37. WANG Guofa,LIU He,WANG Dandan,et al. High-quality energy development and energy security under the new situation for China[J]. Bulletin of Chinese Academy of Sciences,2023,38(1):23-37.
[10] 王国法,任怀伟,赵国瑞,等. 煤矿智能化十大“痛点”解析及对策[J]. 工矿自动化,2021,47(6):1-11. WANG Guofa,REN Huaiwei,ZHAO Guorui,et al. Analysis and countermeasures of ten 'pain points' of intelligent coal mine[J]. Industry and Mine Automation,2021,47(6):1-11.
[11] 葛世荣,张晞,薛光辉,等. 我国煤矿煤机智能技术与装备发展研究[J]. 中国工程科学,2023,25(5):146-156. DOI: 10.15302/J-SSCAE-2023.05.013 GE Shirong,ZHANG Xi,XUE Guanghui,et al. Development of intelligent technologies and machinery for coal mining in China's underground coal mines[J]. Strategic Study of CAE,2023,25(5):146-156. DOI: 10.15302/J-SSCAE-2023.05.013
[12] 康红普,雷亚军,赵福堂,等. 特厚煤层10 m超大采高综采关键技术及装备[J/OL]. 煤炭学报:1-25[2025-03-17]. https://doi.org/10.13225/j.cnki.jccs.2024.1617. KANG Hongpu,LEI Yajun,ZHAO Futang,et al. Key technology and equipment for fully mechanized mining with extra-large shearing height of 10 m in extra-thick coal seam[J/OL]. Journal of China Coal Society:1-25[2025-03-17]. https://doi.org/10.13225/j.cnki.jccs.2024.1617.
[13] 张利军. 综采工作面供电供液系统优化及自动化技术研究与应用[D]. 徐州:中国矿业大学,2019. ZHANG Lijun. Research and application of power supply and liquid supply system optimization and automation technology for fully mechanized mining face[D]. Xuzhou:China University of Mining and Technology,2019.
[14] 宋承林,张鸿波. 矿用大功率永磁同步直驱变频一体机的研究综述[J]. 陕西煤炭,2019,38(6):10-14. DOI: 10.3969/j.issn.1671-749X.2019.06.003 SONG Chenglin,ZHANG Hongbo. Research on mine high power permanent magnet synchronous direct drive frequency conversion integrated machine[J]. Shaanxi Coal,2019,38(6):10-14. DOI: 10.3969/j.issn.1671-749X.2019.06.003
[15] 贺海涛. 10 kV永磁直驱一体机的设计及在神东矿区的应用[J]. 智能矿山,2024,5(1):60-69. HE Haitao. Design of 10 kV permanent magnet direct drive integrated machine and its application in Shendong mining area[J]. Journal of Intelligent Mine,2024,5(1):60-69.
[16] 黄岳峰. 刮板输送机用永磁半直驱变频一体机的综合设计技术研究[D]. 沈阳:沈阳工业大学,2024. HUANG Yuefeng. Comprehensive design technology research on scraper conveyor using permanent magnet semi-direct drive variable frequency integrated machine[D]. Shenyang:Shenyang University of Technology,2024.
[17] 黄鹤松,王芮,宋承林,等. 永磁同步电机调速系统二阶滑模控制器的设计[J]. 微电机,2021,54(2):55-60,66. DOI: 10.3969/j.issn.1001-6848.2021.02.010 HUANG Hesong,WANG Rui,SONG Chenglin,et al. Design of second order sliding mode controller based on PMSM speed regulation system[J]. Micromotors,2021,54(2):55-60,66. DOI: 10.3969/j.issn.1001-6848.2021.02.010
[18] 宋秦中,胡华亮. 基于CNN算法的井下无人驾驶无轨胶轮车避障方法[J]. 金属矿山,2023(10):168-174. SONG Qinzhong,HU Hualiang. Obstacle avoidance method for underground unmanned trackless rubber-tyred vehicle based on CNN algorithm[J]. Metal Mine,2023(10):168-174.
[19] 田锦钊,吴玉杰,冉令才,等. 车路协同下的煤矿井下辅助运输系统设计与智能调度方法[J]. 能源与环保,2024,46(11):235-241. TIAN Jinzhao,WU Yujie,RAN Lingcai,et al. Design and intelligent scheduling method of coal mine underground auxiliary transportation system under vehicle-road coordination[J]. China Energy and Environmental Protection,2024,46(11):235-241.
[20] SEE K W,王运鹏,张能,等. 矿用防爆锂离子电池电源安全设计影响因素研究[J]. 煤炭科学技术,2020,48(11):153-165. SEE K W,WANG Yunpeng,ZHANG Neng,et al. Study on influencing factors of mine explosion-proof lithium-ion batterypower supply safety design[J]. Coal Science and Technology,2020,48(11):153-165.
[21] 刘见中,王运鹏,谢斌,等. 矿用锂离子电池电源防爆保护技术及标准分析[J]. 煤炭科学技术,2020,48(9):203-208. LIU Jianzhong,WANG Yunpeng,XIE Bin,et al. Analysis on explosion-proof techniques and standards for lithium-ion battery power supply used in underground coal mine[J]. Coal Science and Technology,2020,48(9):203-208.
[22] 张利男,寇子明,吴娟,等. 永磁外转子提升机变频调速系统研究[J]. 煤炭工程,2021,53(5):136-141. ZHANG Li′nan,KOU Ziming,WU Juan,et al. Variable frequency speed control system of external rotor permanent magnet hoister[J]. Coal Engineering,2021,53(5):136-141.
[23] 阮锴燚,寇子明,王彦栋,等. 矿井提升系统数字孪生快速建模方法研究[J]. 煤炭科学技术,2023,51(9):219-230. DOI: 10.12438/cst.2022-1321 RUAN Kaiyi,KOU Ziming,WANG Yandong,et al. Digital twin rapid construction method of a mining hoisting system[J]. Coal Science and Technology,2023,51(9):219-230. DOI: 10.12438/cst.2022-1321
[24] 李腾宇,寇子明,吴娟,等. 超千米深井提升机可视化监测系统应用[J]. 煤炭学报,2020,45(增刊2):1069-1078. LI Tengyu,KOU Ziming,WU Juan,et al. Monitoring system of the hoist in the over kilometer deep shaft[J]. Journal of China Coal Society,2020,45(S2):1069-1078.
-
