矿用AI视频边缘计算技术研究与应用

张立亚; 郝博南; 马征; 杨志方

doi:10.13272/j.issn.1671-251x.18215

矿用AI视频边缘计算技术研究与应用

张立亚^{1, 2, 3, 4,},
郝博南^{1, 2, 3, 4},
马征^{1, 2, 3, 4},
杨志方^{1, 2, 3, 4}

1.
煤炭科学技术研究院有限公司，北京　100013
2.
煤炭智能开采与岩层控制全国重点实验室，北京　100013
3.
煤矿应急避险技术装备工程研究中心，北京　100013
4.
北京市煤矿安全工程技术研究中心，北京　100013

基金项目: 工业和信息化部2024年工业互联网创新发展工程−工业5G轻量化融合终端项目（TC240AAKM-132）；天地科技股份有限公司科技创新创业资金专项项目（2023-TD-ZD005-005，2024-TD-ZD015-01）。

详细信息

作者简介:
张立亚（1985—），男，河北定州人，研究员，博士，主要从事矿井通信与智能矿山技术研究工作，E-mail：zhangliya@ccrise.cn

中图分类号: TD67
计量
- 文章访问数: 73
- HTML全文浏览量: 12
- PDF下载量: 23
出版历程
- 收稿日期: 2024-10-24
- 修回日期: 2024-12-25
- 网络出版日期: 2025-01-07
- 刊出日期: 2024-12-24

Research and application of mining AI video edge computing technology

ZHANG Liya^{1, 2, 3, 4,},
HAO Bonan^{1, 2, 3, 4},
MA Zheng^{1, 2, 3, 4},
YANG Zhifang^{1, 2, 3, 4}

1.
CCTEG China Coal Research Institute, Beijing 100013, China
2.
National Key Laboratory of Intelligent Mining and Strata Control, Beijing 100013, China
3.
Coal Mine Emergency Evasion Technology and Equipment Engineering Research Center, Beijing 100013, China
4.
Beijing Municipal Engineering Research Center for Coal Mine Safety Technology, Beijing 100013, China

摘要

摘要:
目前矿山AI视频系统主要采用地面服务器进行分析处理，存在视频分析整体响应时延较高、多系统联动延迟、网络带宽资源占用大等问题。针对该问题，设计了一种轻量化、可边缘部署的矿用AI视频边缘计算系统。提出了基于注册机的轻量化软件开发工具包（SDK）框架，对算子进行解耦，以提升算法并行运算能力，降低SDK对存储空间的需求；对YOLOv7的卷积运算进行分组设计，利用恒等映射对Focus主干网络进行优化，以减少运算量并轻量化网络结构，同时引入Transformer中的注意力机制提高检测性能。集成国产化智能芯片和5G通信模块，研制了矿用AI视频服务器，实现了矿山边缘节点部署与计算。实验结果表明：矿用AI视频边缘计算系统响应出色，部署注册机SDK与改进YOLOv7模型后，平均推理时延为28 ms，较React Native+YOLOv7和MobileNet分别减少52%和44%；在各种负载情况下，矿用AI视频服务器的响应时间远低于矿山操作的最低要求。现场工业性测试结果表明：矿用AI视频服务器接入8路摄像仪时，响应时延为51 ms，带宽维持在45 Mbit/s，比使用地面服务器时的时延降低了59%，带宽提高了15%,实现了对井下视频数据的实时、就地分析处理，有效降低了数据传输时延，提高了视频分析的响应速率和处理效率。
- 智能矿山 /
- AI视频分析 /
- 边缘计算 /
- 注册机 /
- YOLOv7 /
- 轻量化设计
Abstract:
Currently, mining AI video systems mainly rely on ground servers for analysis and processing, which leads to issues such as high overall response latency, multi-system linkage delays, and high network bandwidth utilization. To address these issues, a lightweight and edge-deployable mining AI video edge computing system was designed. A lightweight software development kit (SDK) framework based on the register machine was proposed to decouple operators, improving the parallel computing ability of the algorithms and reducing the storage requirements of the SDK. Grouping design of YOLOv7 convolution operation was conducted, and the Focus backbone network was optimized using identity mapping to reduce computation amount and streamline the network structure. Additionally, the attention mechanism from Transformer was incorporated to improve detection performance. The mining AI video server was developed by integrating the domestic intelligent chips and 5G communication modules, enabling the deployment and calculation of mine edge nodes. The experimental results showed that the mining AI video edge computing system had excellent response. After deploying the registration machine SDK and optimizing the YOLOv7 model, the average inference latency was 28 ms, 52% and 44% lower than that of React Native+YOLOv7 and MobileNet, respectively. Under various load conditions, the response latency of the mining AI video server was significantly lower than the minimum requirements for mine operation. The field industrial test results showed that when the mining AI video server was connected to an 8-channel camera, the response latency was 51 ms, and the bandwidth was maintained at 45 Mbit/s. Compared to using a ground server, the response latency was reduced by 59%, and the bandwidth increased by 15%. This enabled real-time and on-site analysis and processing of underground video data, effectively reducing the data transmission delay and improving the response rate and processing efficiency of video analysis.
- intelligent mine /
- AI video analysis /
- edge computing /
- register machine /
- YOLOv7 /
- lightweight design

HTML全文

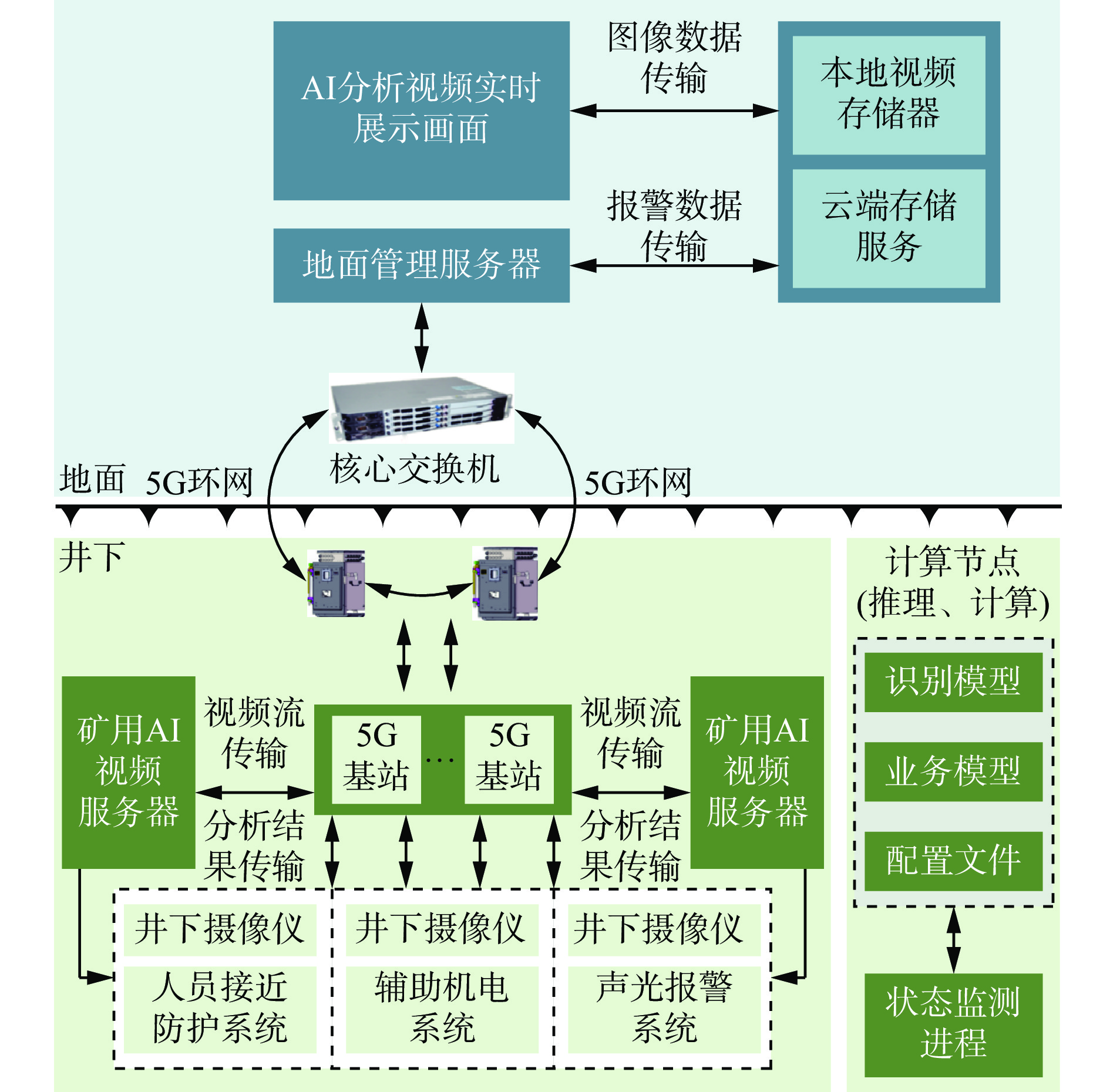

图 1 矿用AI视频边缘计算系统架构

Figure 1. Architecture of mining AI video edge computing system

下载: 全尺寸图片幻灯片

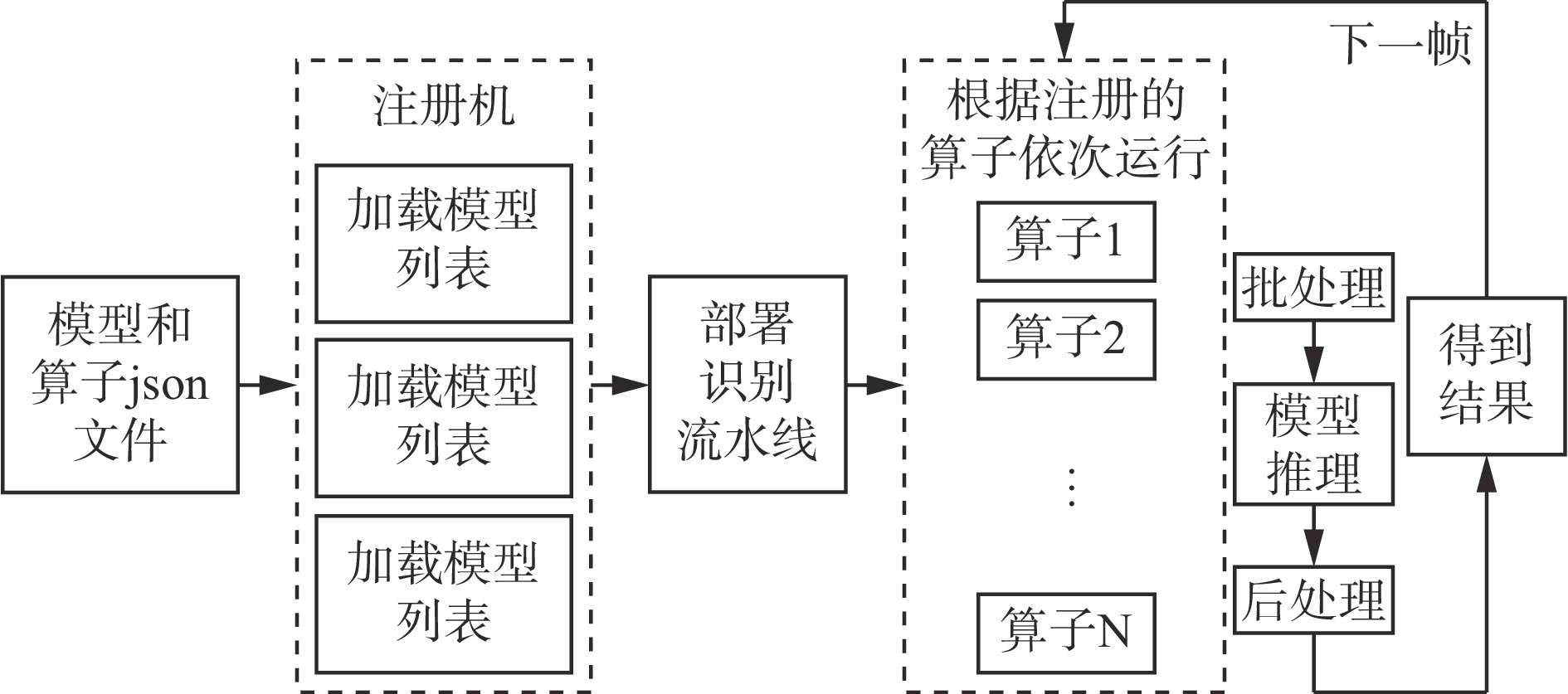

图 2 基于注册机的SDK框架

Figure 2. Software development kit（SDK） framework based on register machine

下载: 全尺寸图片幻灯片

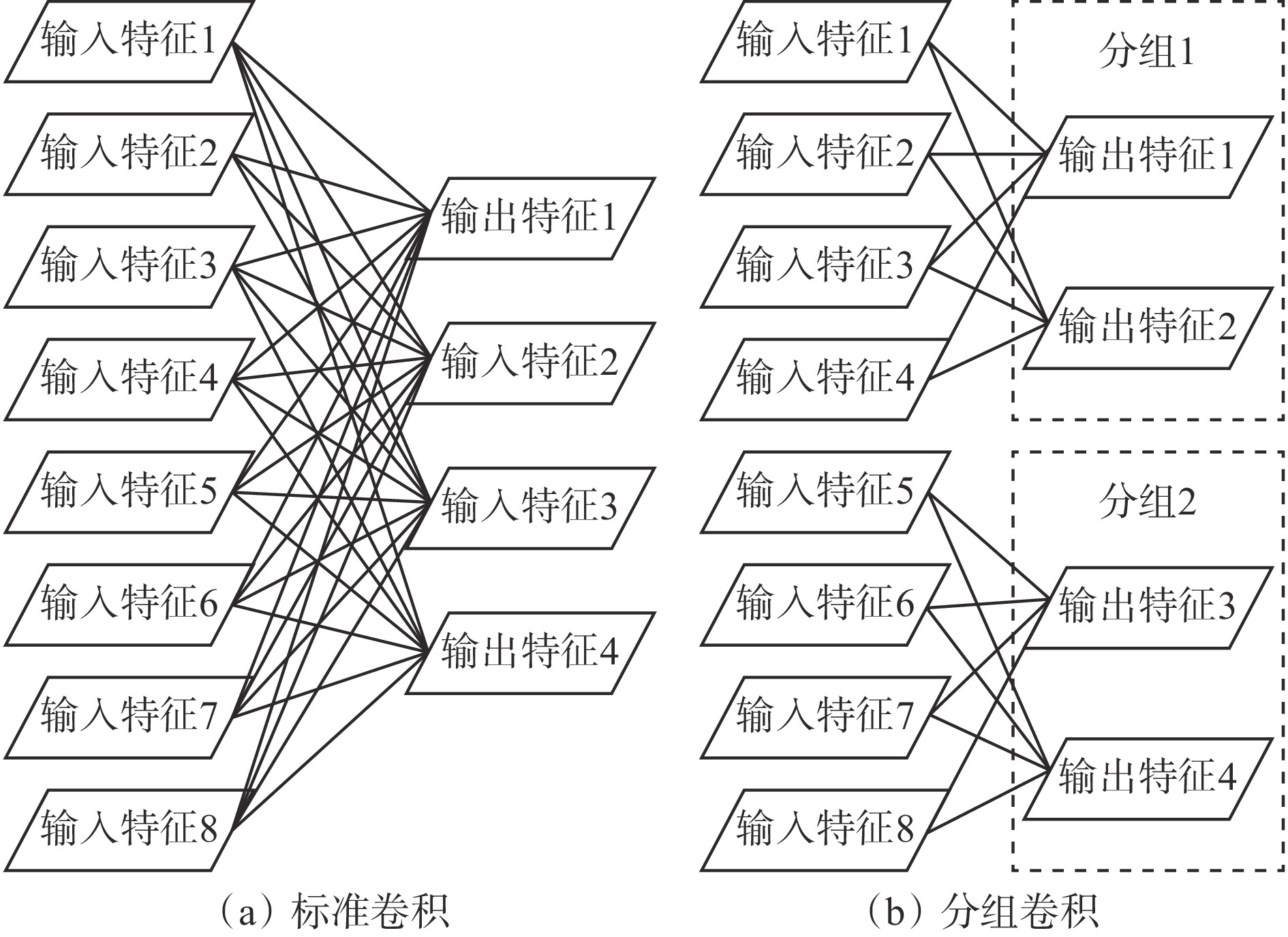

图 3 标准卷积和分组卷积结构

Figure 3. Standard convolution and group convolution structure

下载: 全尺寸图片幻灯片

图 4 改进Focus网络结构

Figure 4. Improved Focus network structure

下载: 全尺寸图片幻灯片

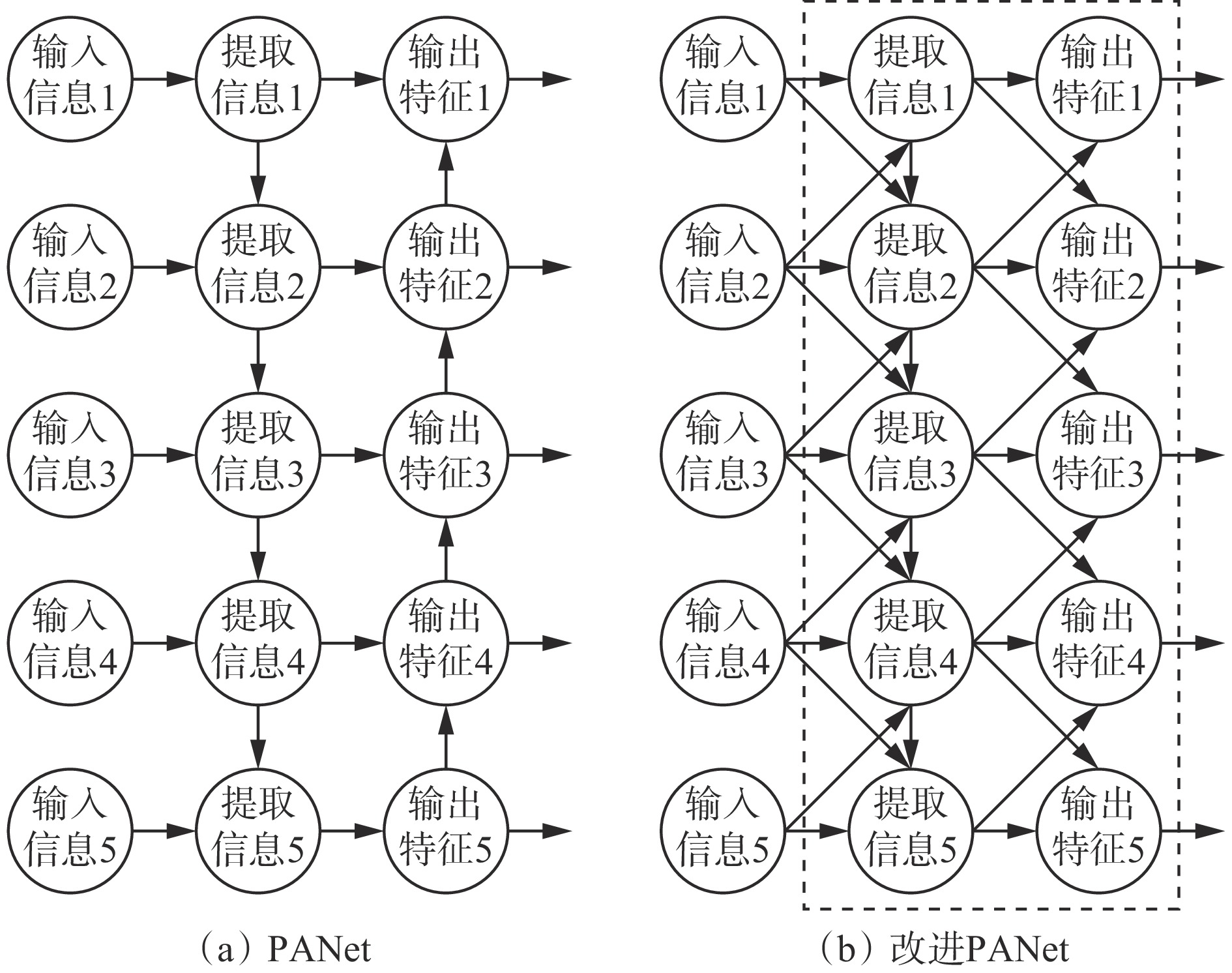

图 5 特征融合阶段网络结构

Figure 5. Feature fusion stage network structure

下载: 全尺寸图片幻灯片

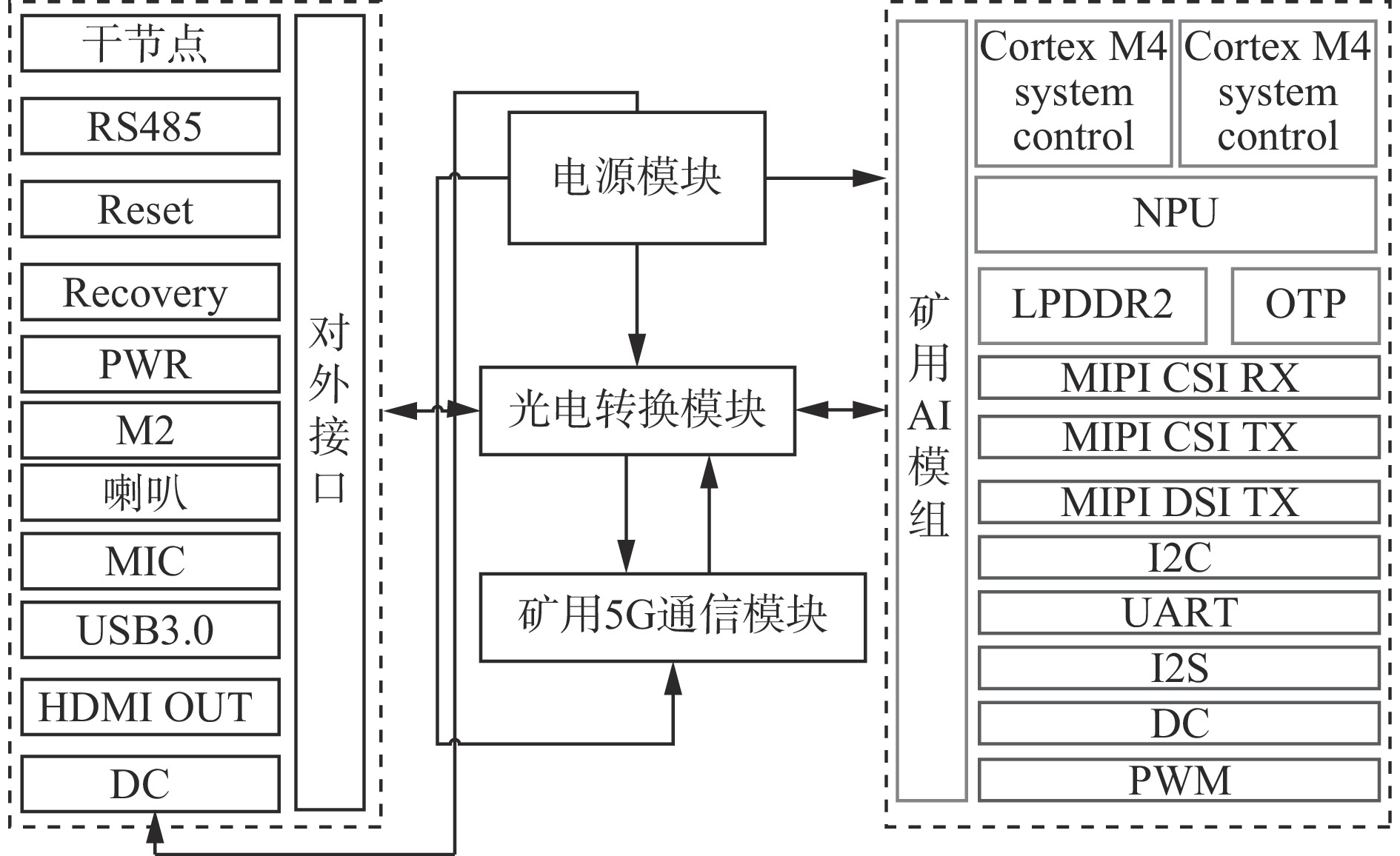

图 6 矿用AI视频服务器核心模块

Figure 6. Core modules of mining AI video server

下载: 全尺寸图片幻灯片

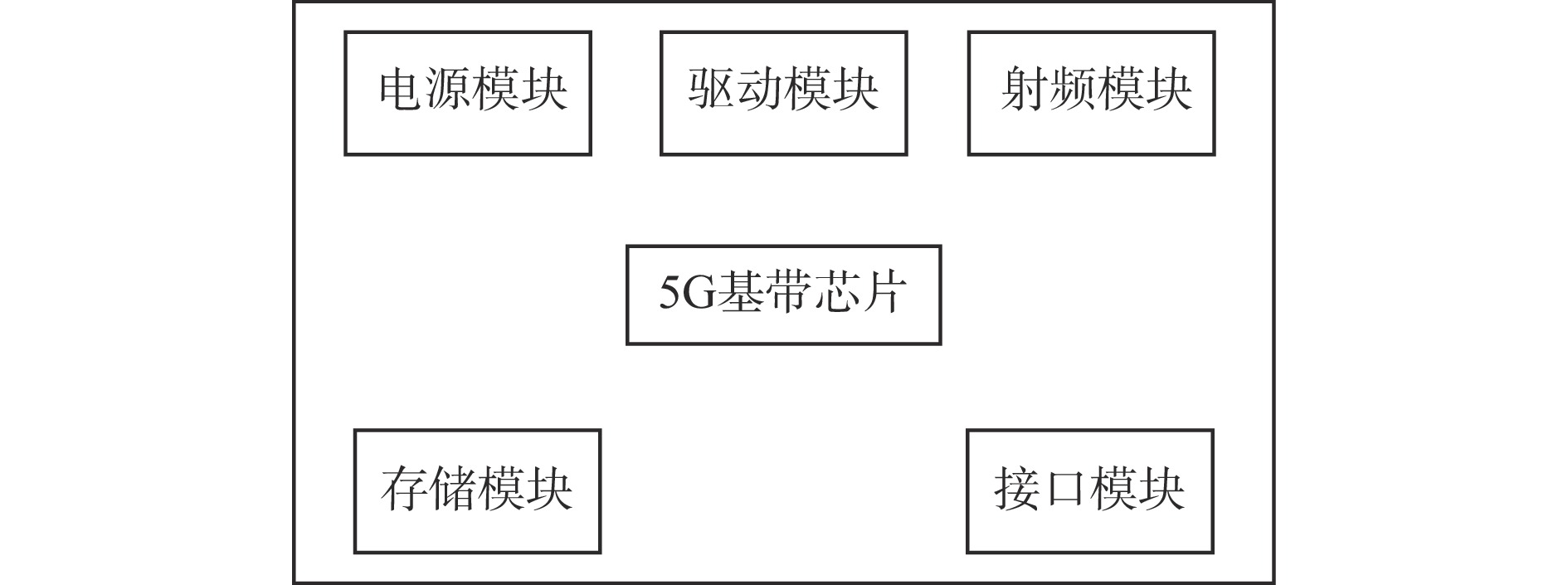

图 7 5G通信模块网络框架

Figure 7. 5G communication module network framwork

下载: 全尺寸图片幻灯片

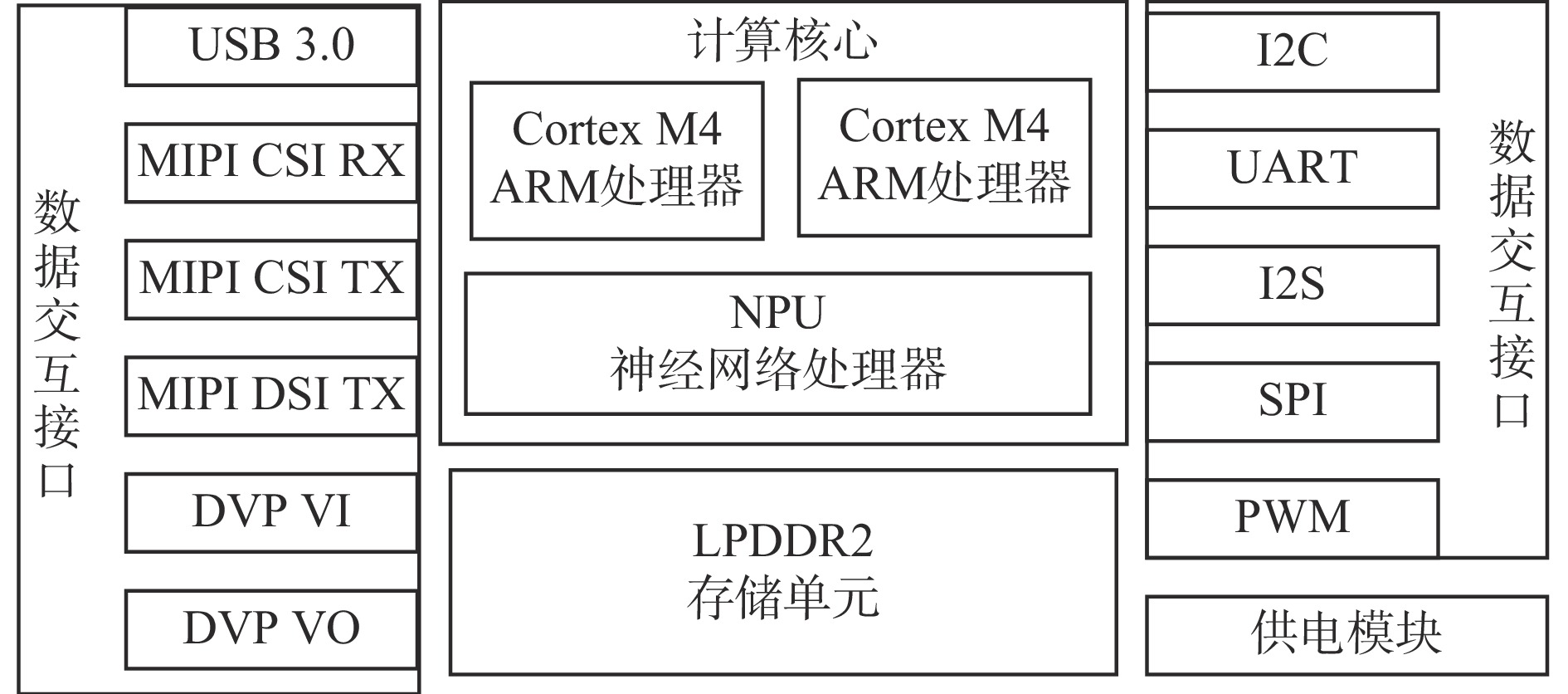

图 8 AI模组架构

Figure 8. AI module architecture

下载: 全尺寸图片幻灯片

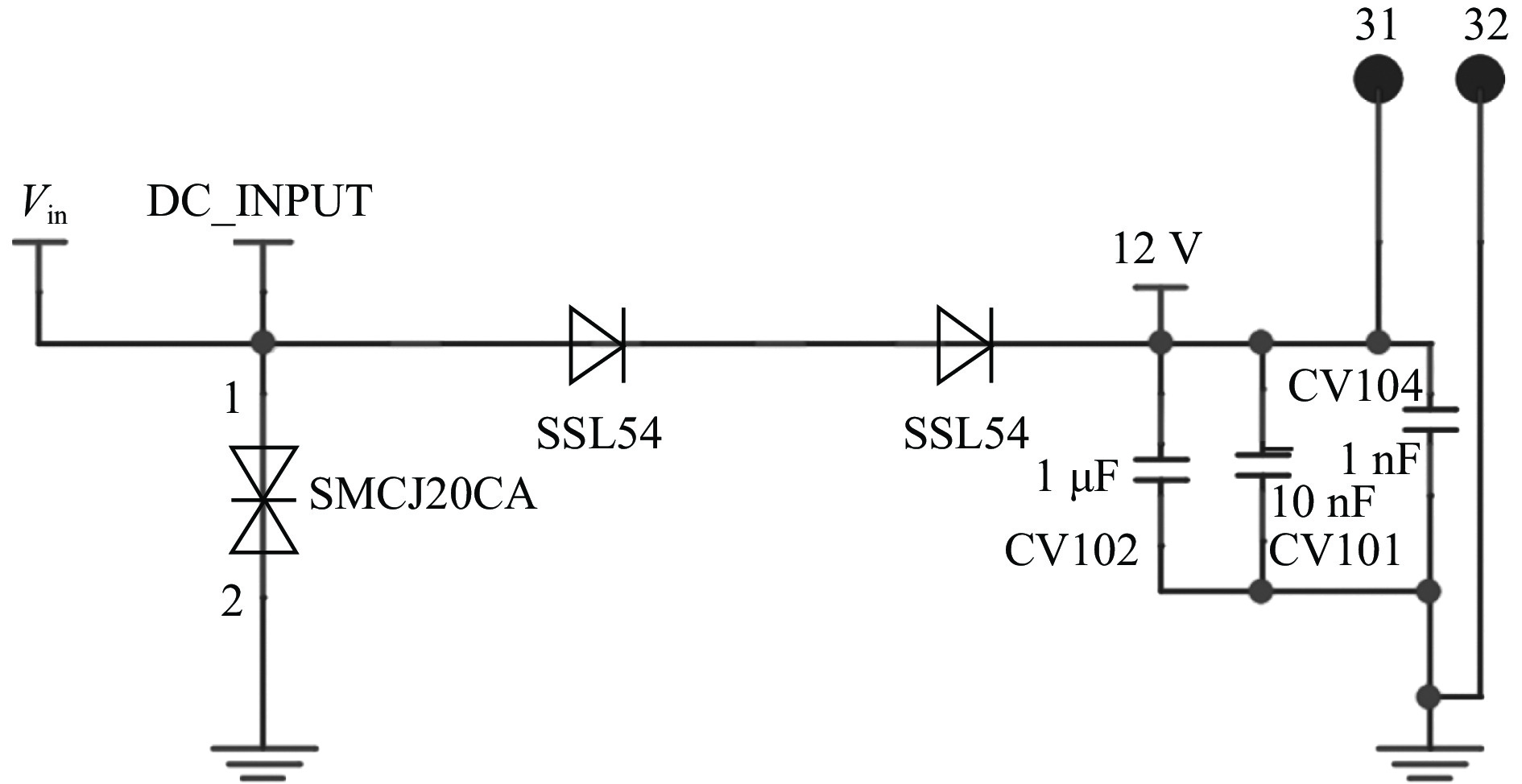

图 9 12 V过流保护电路

Figure 9. 12 V overcurrent protection circuit

下载: 全尺寸图片幻灯片

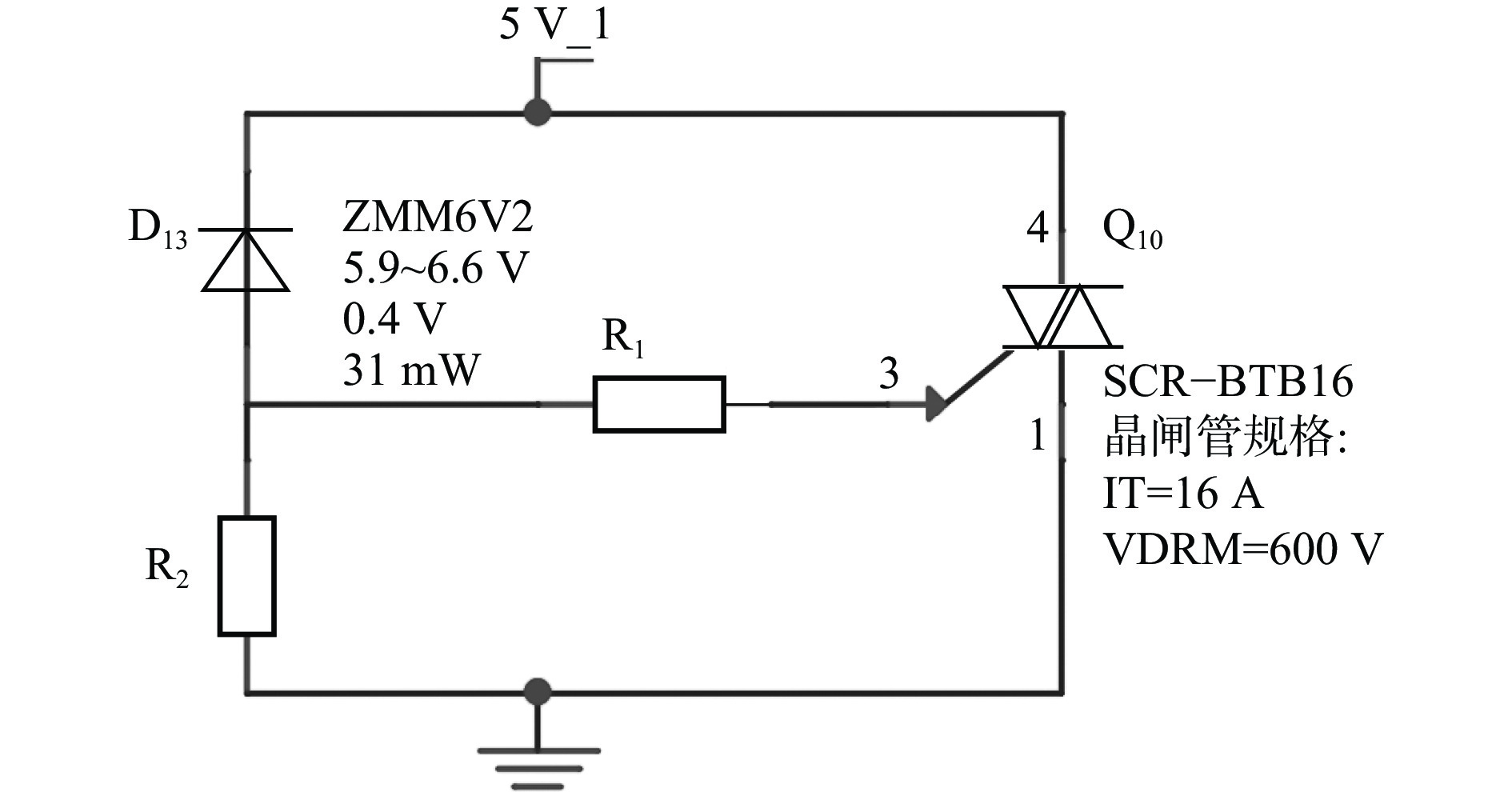

图 10 5 V电压过流保护电路

Figure 10. 5 V overcurrent protection circuit

下载: 全尺寸图片幻灯片

图 11 服务器上下行平均带宽对比

Figure 11. Comparison of server's average upstream and downstream bandwidth

下载: 全尺寸图片幻灯片

表 1 不同框架与模型组合推理性能

Table 1 Inference performance of different framework and model combinations

框架及模型	时延/ms	准确率	召回率
React Native+YOLOv7	58	0.903	0.899
React Native+MobileNet	50	0.912	0.901
React Native+本文模型	39	0.926	0.919
注册机SDK+YOLOv7	42	0.903	0.899
注册机SDK+MobileNet	36	0.912	0.901
注册机SDK+本文模型	28	0.926	0.919

下载: 导出CSV

表 2 不同网络负载的响应时间

Table 2 Response latency under different network loads

网络负载/%	平均响应时间/ms
网络负载/%	矿用AI视频服务器	地面管理服务器
0	10	60
20	14	68
40	20	72
60	27	77
80	36	98
100	50	121

下载: 导出CSV
