复杂条件工作面智能化开采关键技术及发展趋势

张帅 任怀伟 韩安 巩师鑫

张帅,任怀伟,韩安,等. 复杂条件工作面智能化开采关键技术及发展趋势[J]. 工矿自动化,2022,48(3):16-25.  doi: 10.13272/j.issn.1671-251x.2021090041
引用本文: 张帅,任怀伟,韩安,等. 复杂条件工作面智能化开采关键技术及发展趋势[J]. 工矿自动化,2022,48(3):16-25.  doi: 10.13272/j.issn.1671-251x.2021090041
ZHANG Shuai, REN Huaiwei, HAN An, et al. Key technology and development trend of intelligent mining in complex condition working face[J]. Journal of Mine Automation,2022,48(3):16-25.  doi: 10.13272/j.issn.1671-251x.2021090041
Citation: ZHANG Shuai, REN Huaiwei, HAN An, et al. Key technology and development trend of intelligent mining in complex condition working face[J]. Journal of Mine Automation,2022,48(3):16-25.  doi: 10.13272/j.issn.1671-251x.2021090041

复杂条件工作面智能化开采关键技术及发展趋势

doi: 10.13272/j.issn.1671-251x.2021090041
基金项目: 国家自然科学基金重点项目(51834006);国家自然科学基金面上项目(51874174);中国煤炭科工集团科技专项重点项目(2019-TD-ZD001)。
详细信息
    作者简介:

    张帅(1998-),男,山西运城人,硕士研究生,主要研究方向为矿山装备自动化,E-mail:sxzhangshuai@163.com

  • 中图分类号: TD82

Key technology and development trend of intelligent mining in complex condition working face

  • 摘要: 复杂条件煤层地质条件参数变化数量多、参数变化范围大,其智能化开采是当前迫切需要解决的难题。分析了我国不同区域煤矿的主要地质条件特征及面临的问题,指出相较于综合机械化采煤,智能化开采对地质保障度的要求更高。地质条件越复杂,控制系统就越需要更精准的感知、更快速的分析与决策、更高的数据传输速率。以两淮地区“三软”煤层开采为例,探讨了其在智能化开采过程中面临的问题:煤壁频繁片帮、刮板输送机上窜下滑、相邻支架错位及咬合不紧密、护帮板不整齐、支架扎底、超前巷道变形,指出围岩(顶底板、煤壁)条件、煤层走向/倾向角度、矿压及超前巷道稳定性是影响工作面正常连续开采的5个因素。为解决上述5个因素条件参数变化带来的问题,需要从围岩参数感知、趋势分析、精细化控制、动力系统适应、自适应决策等方面研发出解决复杂条件工作面智能化开采的关键核心技术。详细阐述了目前实现复杂条件工作面智能化开采技术即液压支架护帮板精准控制及快速跟机技术、顶板分区协同支护技术、工作面装备姿态监测技术、工作面调直技术、上窜下滑控制技术、稳压供液控制技术、仿真决策系统平台和超前支护技术的应用现状、效果及后续需要解决的问题。指出对于多种复杂条件共存的煤层,关键元部件的机电液一体化设计、分布式控制方式、大数据的分析应用、装备群协同快速推进控制和实时仿真平台与智能决策系统的开发是后续研究的主要方向。

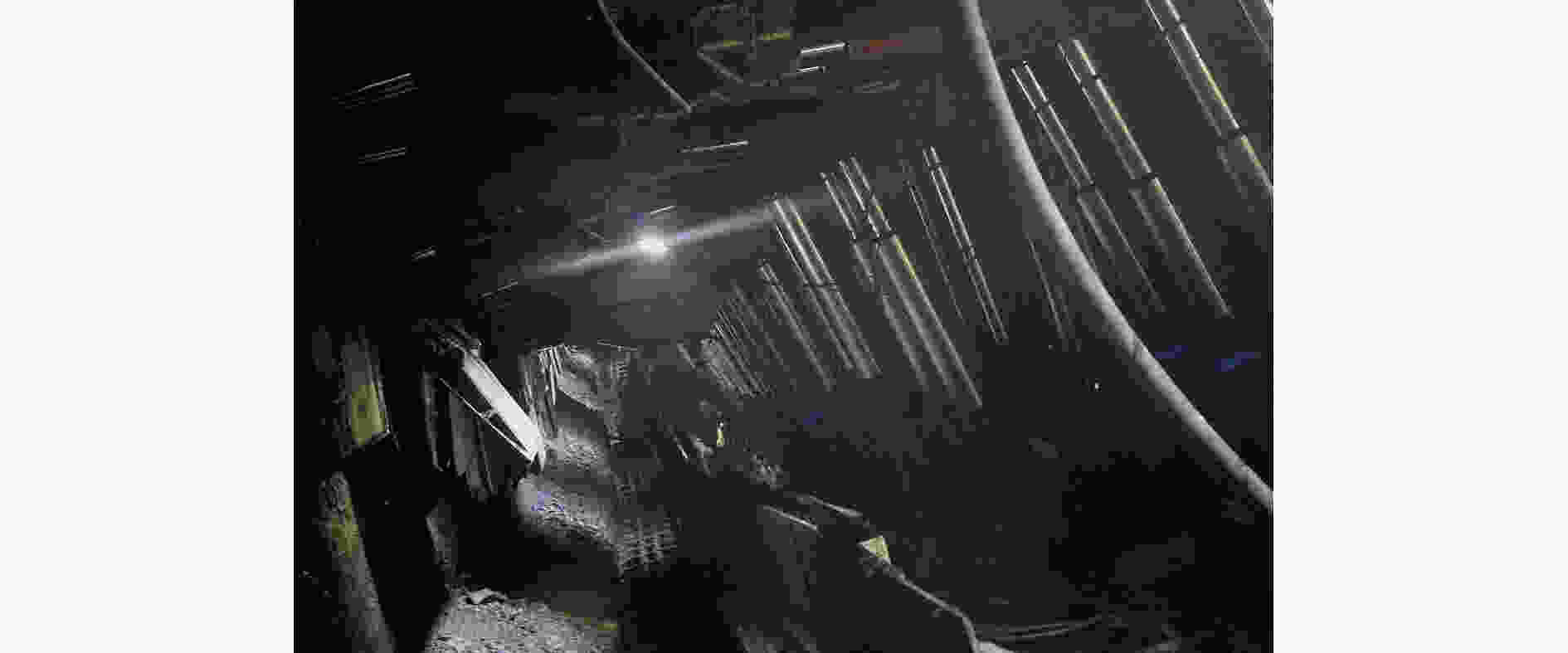

  • 图  1  140502工作面倾向起伏情况

    Figure  1.  Tendency fluctuation of 140502 working face

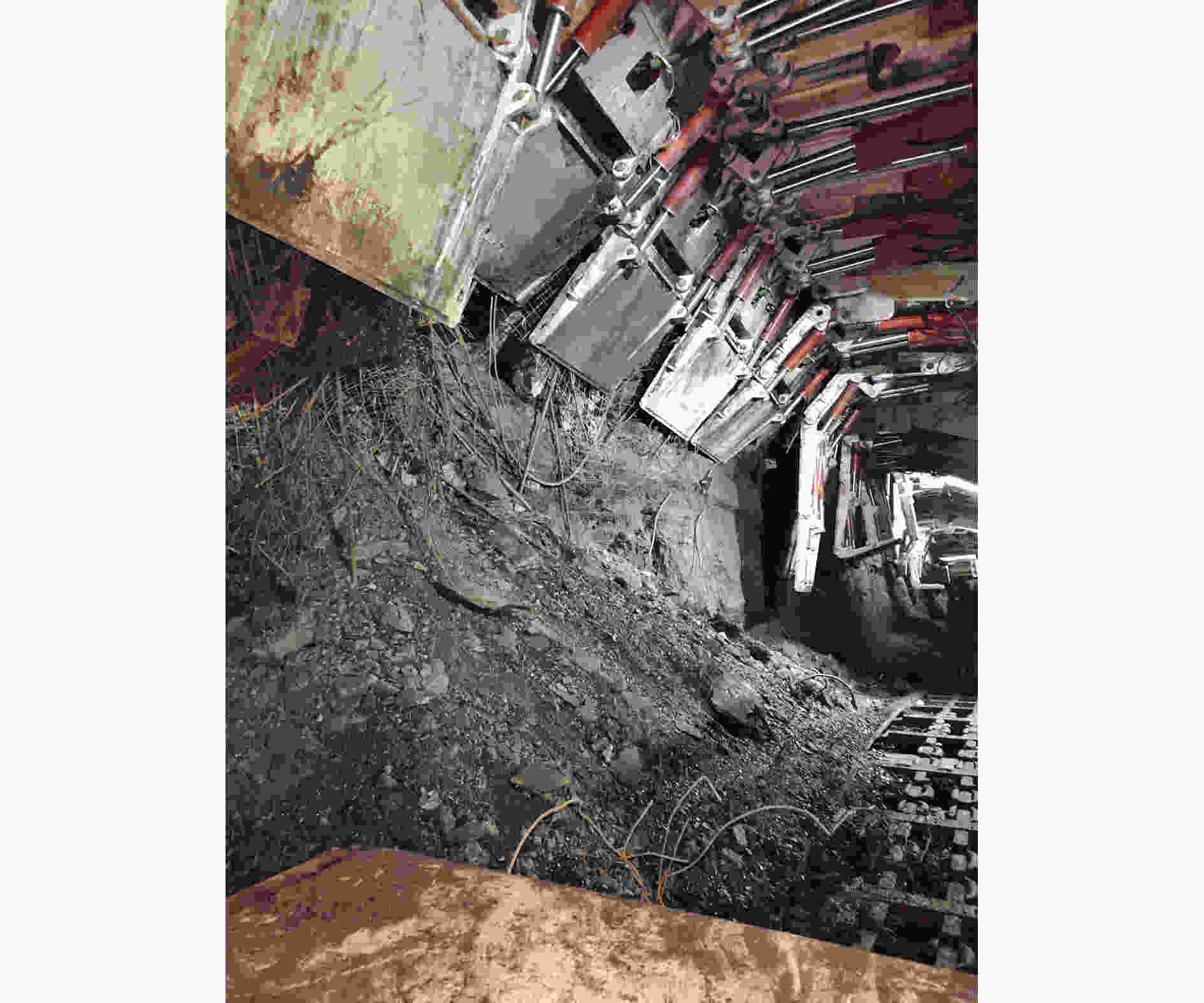

    图  2  工作面煤壁片帮情况

    Figure  2.  Coal wall spalling of working face

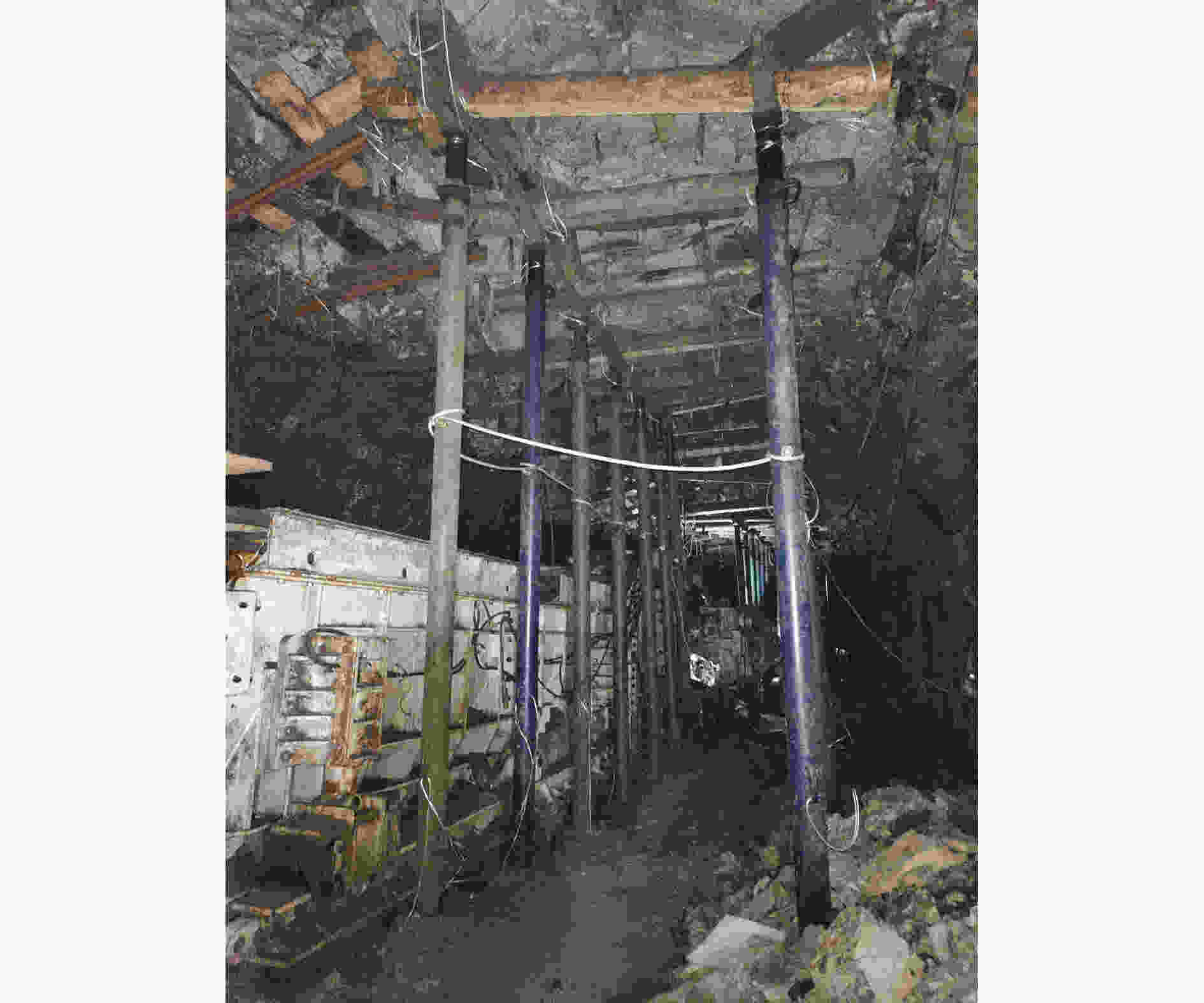

    图  3  超前巷道

    Figure  3.  Advance roadway

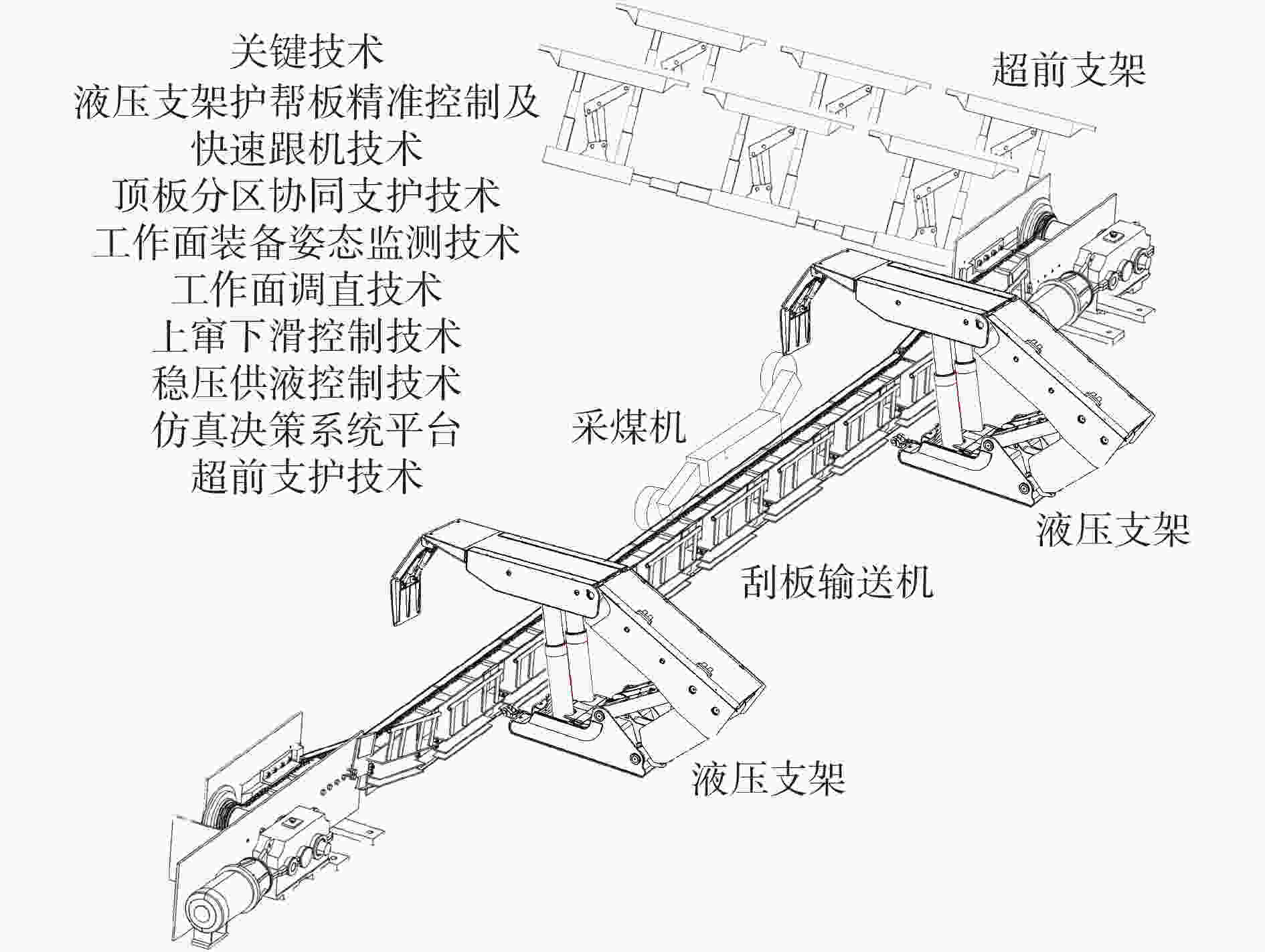

    图  4  工作面三机装备布置及关键技术

    Figure  4.  Three machines equipment layout and key technologies in working face

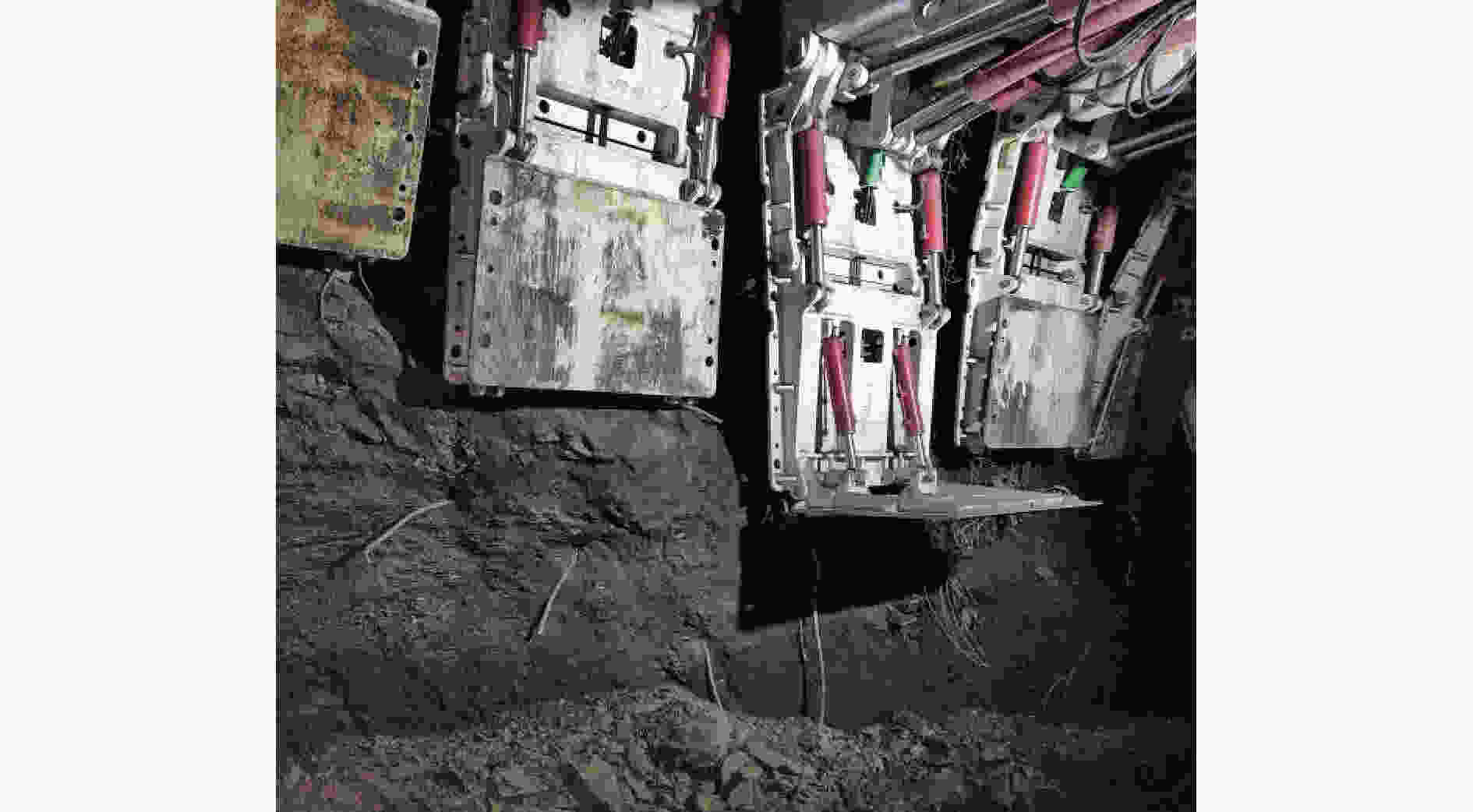

    图  5  液压支架三级护帮板

    Figure  5.  Three-level guard plate of hydraulic support

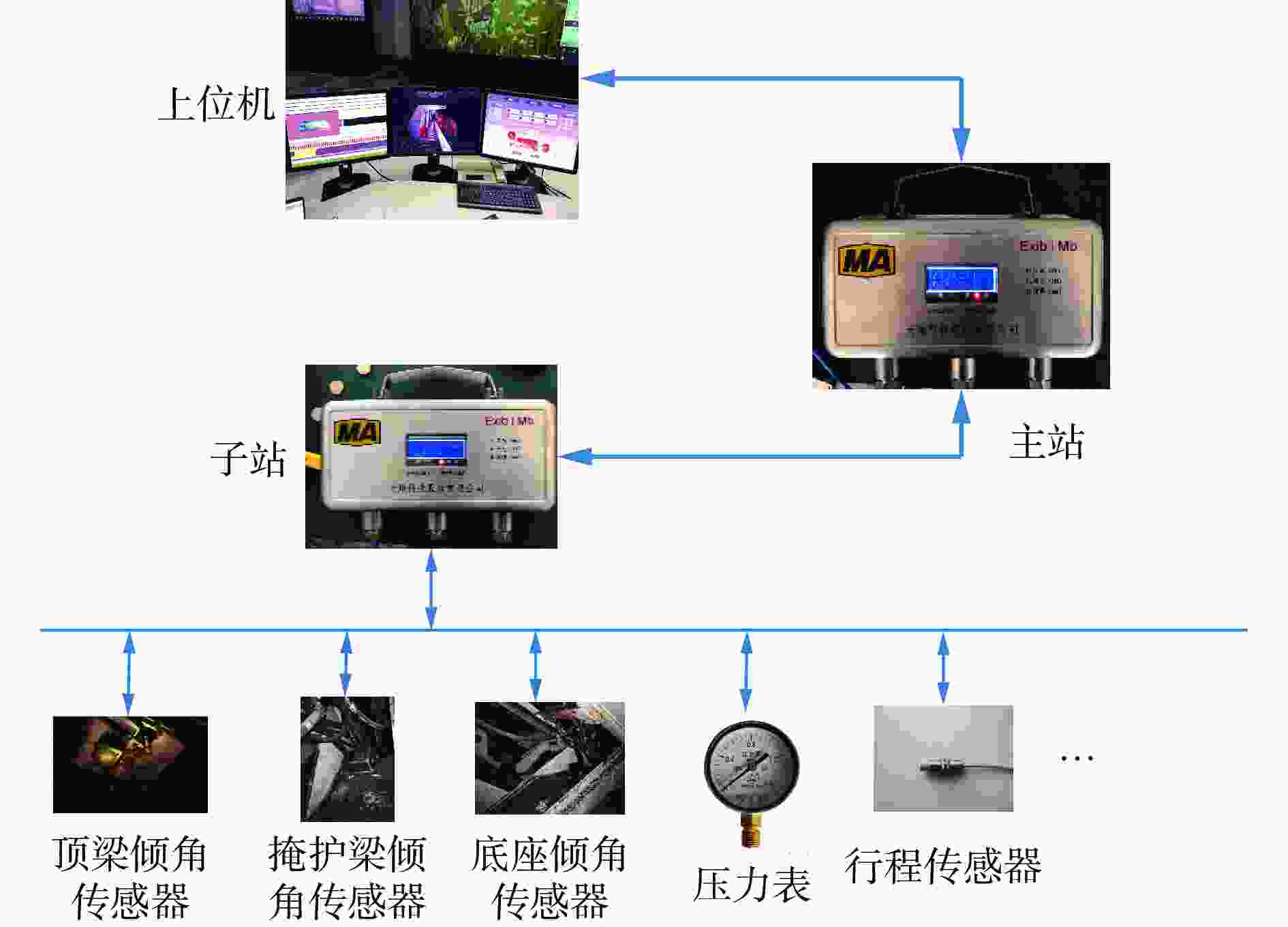

    图  6  开采装备全位姿测量系统

    Figure  6.  Full position and pose measurement system of mining equipment

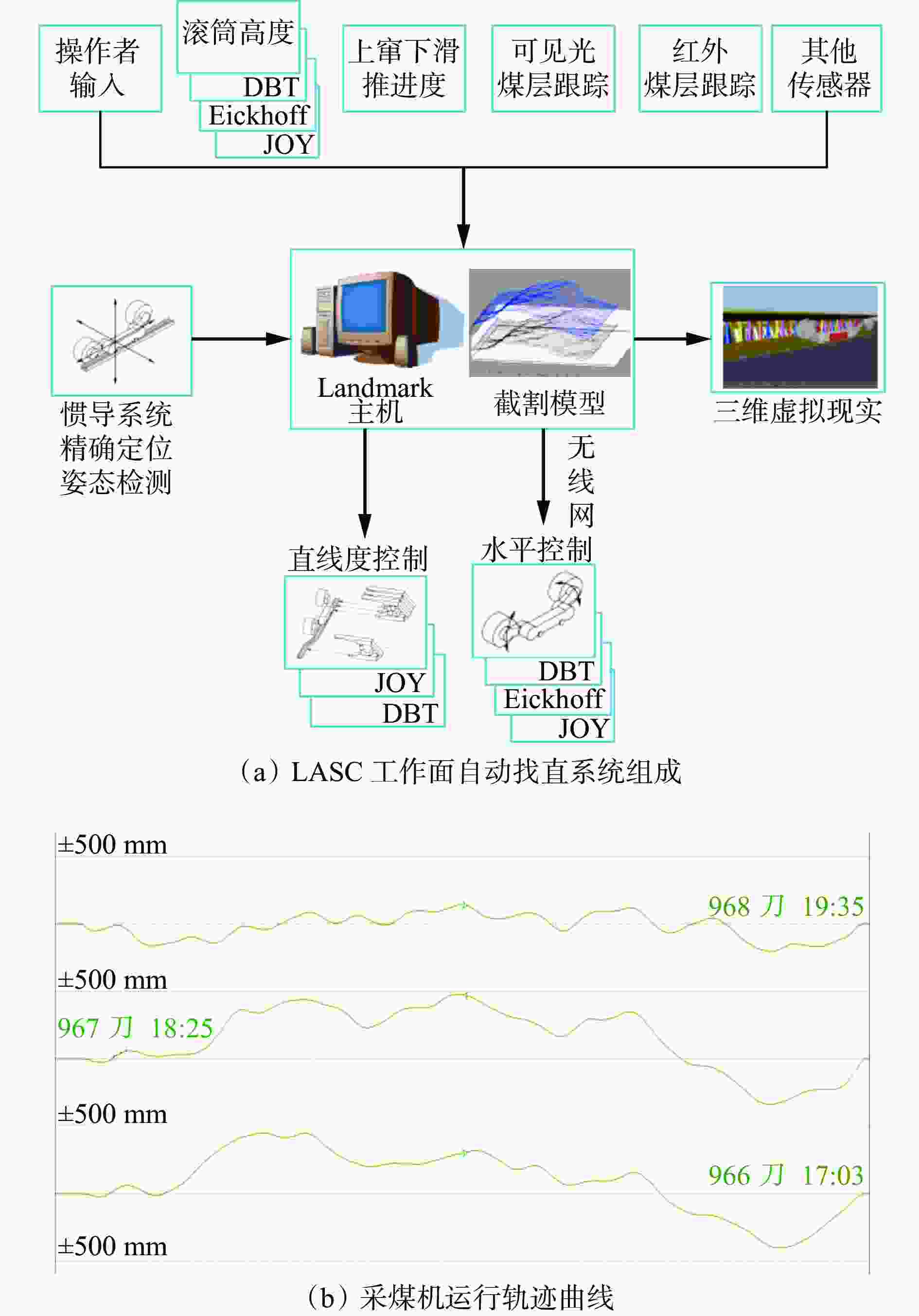

    图  7  基于惯导系统的工作面自动找直

    Figure  7.  Automatic alignment of working face based on inertial navigation system

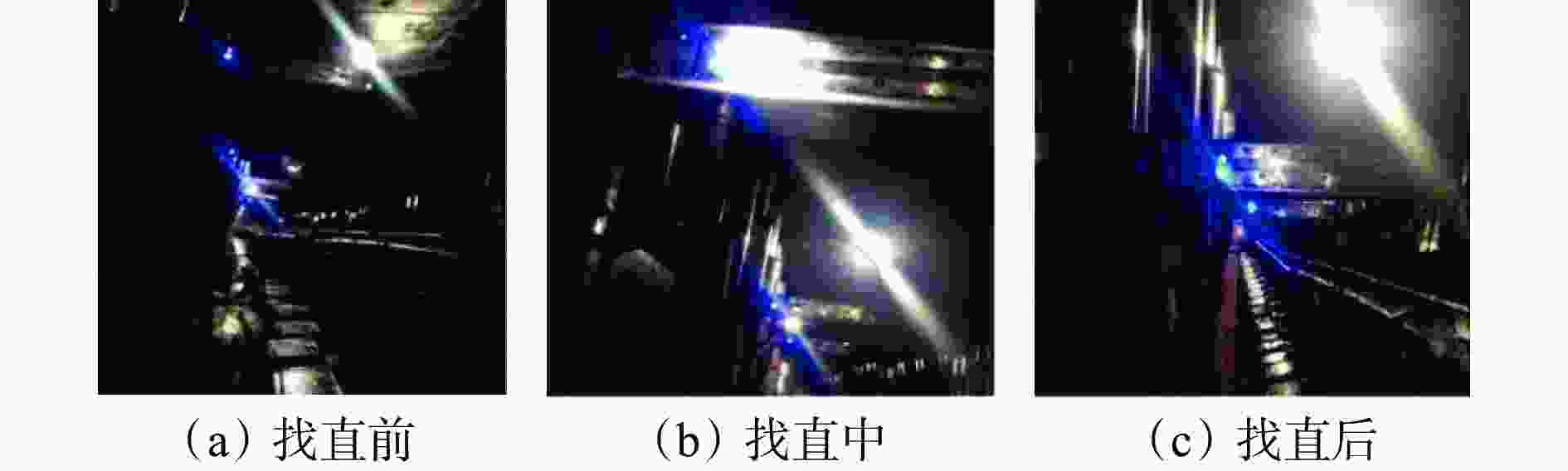

    图  8  基于激光对位传感器的工作面直线度控制方法

    Figure  8.  Straightness control method of working face based on laser alignment sensor

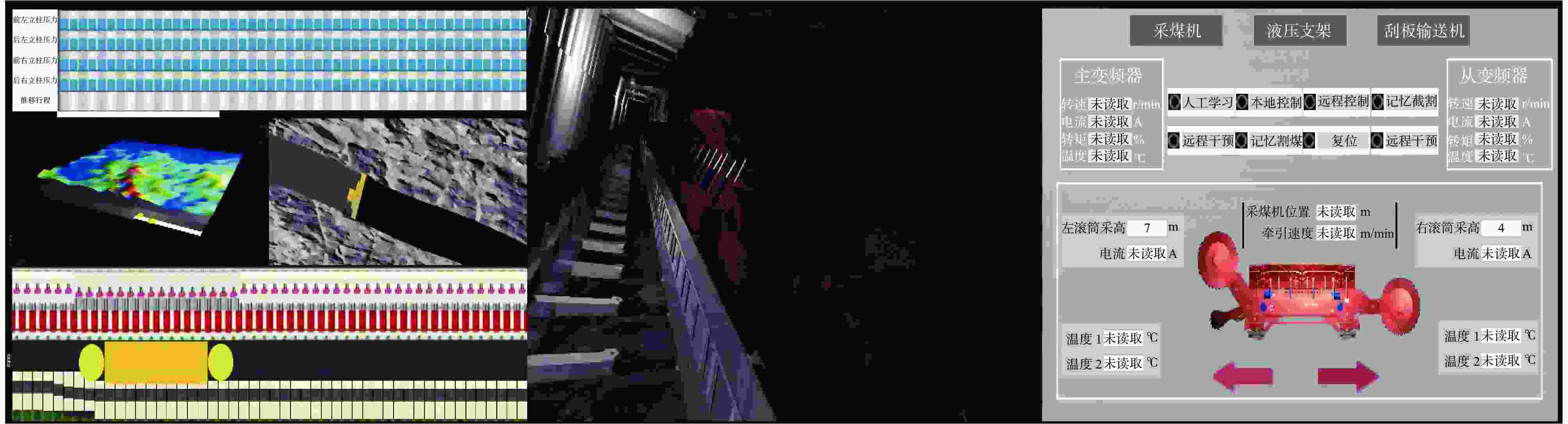

    图  9  仿真决策平台界面

    Figure  9.  Simulation decision platform interface

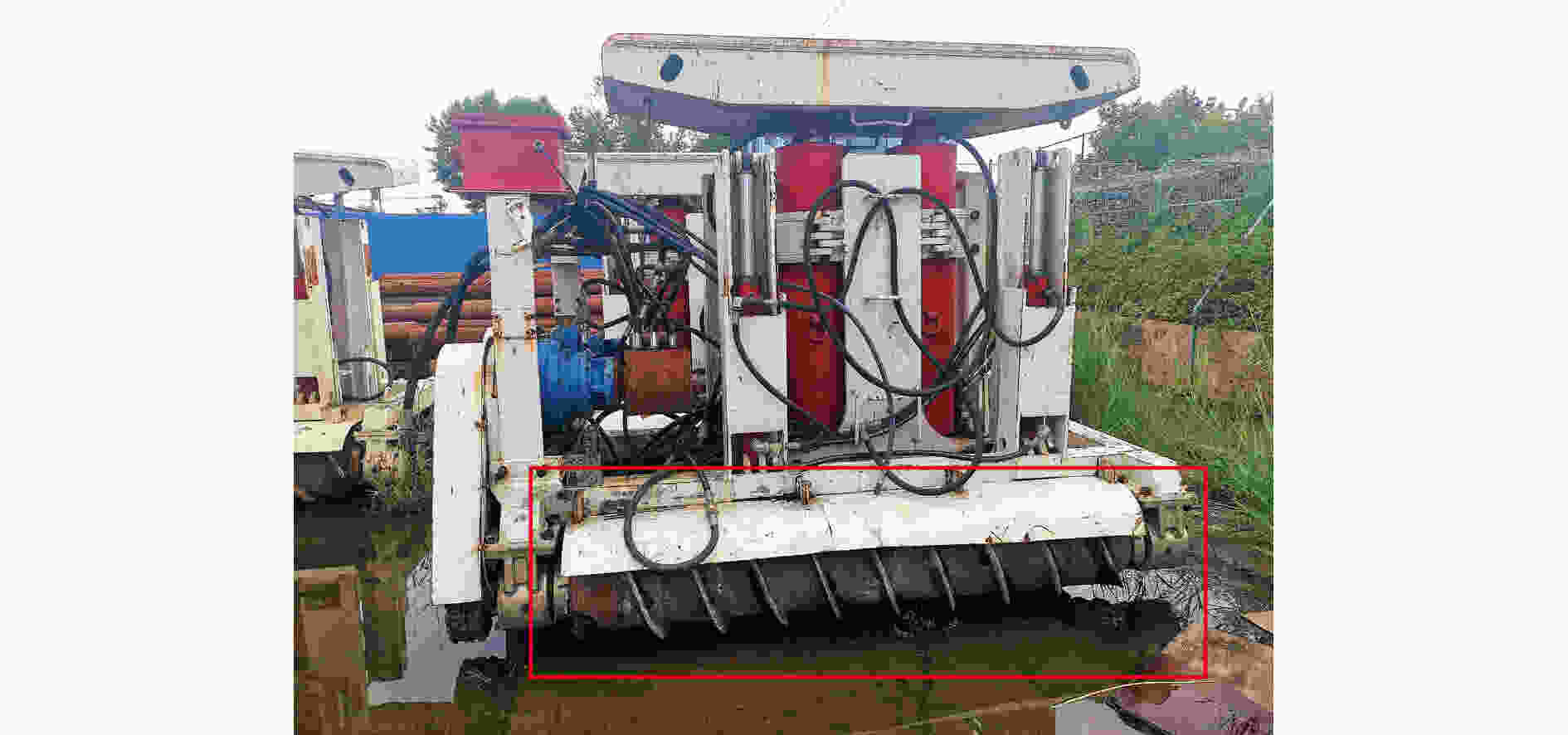

    图  10  螺旋行走式超前支架

    Figure  10.  Spiral walking advance support

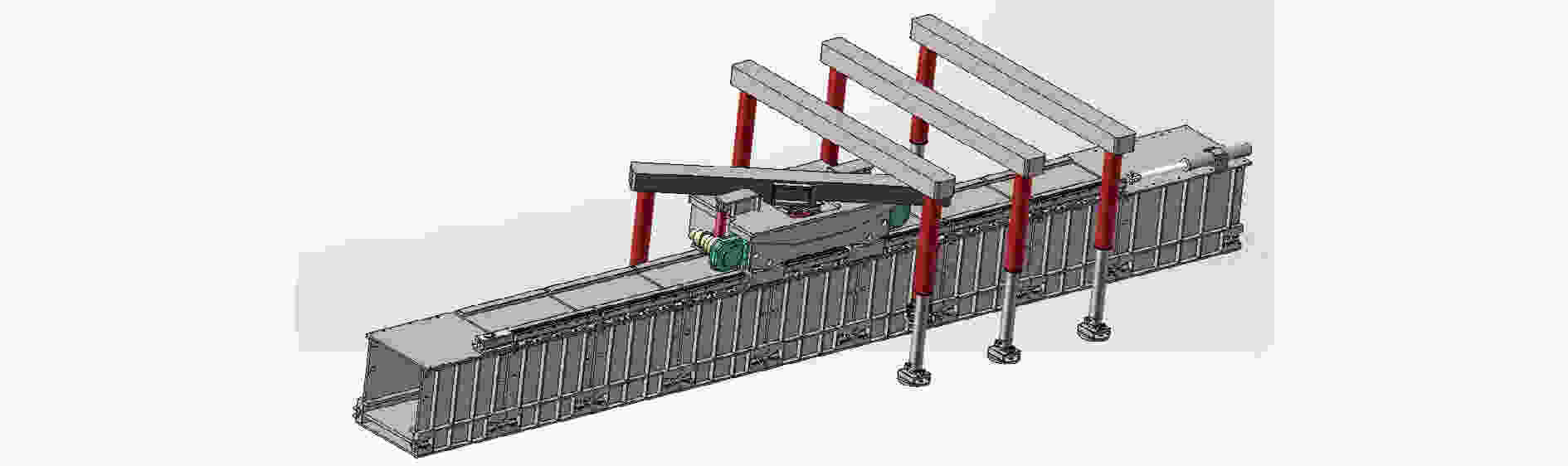

    图  11  运输巷运−支一体化系统

    Figure  11.  Transportation and support integration system in transportation roadway

    表  1  我国不同区域煤矿的主要地质条件特征及面临的问题

    Table  1.   Main characteristics of geological conditions and problems of coal mines in different regions of China

    地区特征问题
    晋陕蒙地区埋深浅、煤层厚、煤质硬开始出现冲击地压、
    厚煤层工作面围岩控制难
    东北地区开采深度深、煤层厚度差异大、
    倾角大
    最早出现冲击地压,
    开采难度大
    华北地区埋藏深、煤层薄冲击地压强烈、高地温、
    高地压
    两淮地区“三软”煤层煤壁片帮严重、顶底板破碎、
    超前巷道变形量大
    西南地区煤层薄、倾角大开采难度大、经济效益低
    下载: 导出CSV

    表  2  复杂条件工作面智能化开采关键技术部分研究成果

    Table  2.   Some research results on key technologies of intelligent mining under complex conditions working face

    关键技术研究成果
    液压支架护帮板精准控制
    及快速跟机技术
    0.4倍采高是护帮重点;优化三级护帮
    结构;成组移架
    顶板分区协同支护技术工作面分区支护和分区推进协同控制;
    三机协同控制策略
    工作面装备姿态监测技术新型传感手段;高速通信;视觉测量;
    多信息融合
    工作面调直技术采煤机惯导定位;精准拉架控制
    上窜下滑控制技术改进割煤工艺;外力干预控制技术
    稳压供液控制技术智能泵站按需稳压供液
    仿真决策系统平台三维仿真;实时数据驱动
    超前支护技术超前支架自适应支护;回风巷超前支架
    搬运小车;运支一体化超前支护系统
    下载: 导出CSV
  • [1] 边文越,陈挺,陈晓怡,等. 世界主要发达国家能源政策研究与启示[J]. 中国科学院院刊,2019,34(4):488-496.

    BIAN Wenyue,CHEN Ting,CHEN Xiaoyi,et al. Research and enlightenment of energy policy in major developed countries in the world[J]. Bulletin of Chinese Academy of Sciences,2019,34(4):488-496.
    [2] 王国法,徐亚军,张金虎,等. 煤矿智能化开采新进展[J]. 煤炭科学技术,2021,49(1):1-10.

    WANG Guofa,XU Yajun,ZHANG Jinhu,et al. New development of intelligent mining in coal mines[J]. Coal Science and Technology,2021,49(1):1-10.
    [3] 王国法,徐亚军,孟祥军,等. 智能化采煤工作面分类、分级评价指标体系[J]. 煤炭学报,2020,45(9):3033-3044.

    WANG Guofa,XU Yajun,MENG Xiangjun,et al. Specification,classification and grading evaluation index for smart longwall mining face[J]. Journal of China Coal Society,2020,45(9):3033-3044.
    [4] 王国法,杜毅博. 智慧煤矿与智能化开采技术的发展方向[J]. 煤炭科学技术,2019,47(1):1-10.

    WANG Guofa,DU Yibo. Development direction of intelligent coal mine and intelligent mining technology[J]. Coal Science and Technology,2019,47(1):1-10.
    [5] 王国法. 综采自动化智能化无人化成套技术与装备发展方向[J]. 煤炭科学技术,2014,42(9):30-34.

    WANG Guofa. Development orientation of complete fully-mechanized automation,intelligent and unmanned mining technology and equipment[J]. Coal Science and Technology,2014,42(9):30-34.
    [6] 王国法,刘峰,孟祥军,等. 煤矿智能化(初级阶段)研究与实践[J]. 煤炭科学技术,2019,47(8):1-36.

    WANG Guofa,LIU Feng,MENG Xiangjun,et al. Research and practice of intelligent coal mine (primary stage)[J]. Coal Science and Technology,2019,47(8):1-36.
    [7] 刘峰,曹文君,张建明. 持续推进煤矿智能化促进我国煤炭工业高质量发展[J]. 中国煤炭,2019,45( 12):32-37. doi: 10.3969/j.issn.1006-530X.2019.12.006

    LIU Feng,CAO Wenjun,ZHANG Jianming. Continuously promoting the coal mine intellectualization and the high-quality development of China's coal industry[J]. China Coal,2019,45( 12):32-37. doi: 10.3969/j.issn.1006-530X.2019.12.006
    [8] 高家明,潘俊锋,杜涛涛,等. 我国东北矿区冲击地压发生特征及防治现状[J]. 煤炭科学技术,2021,49(3):49-56.

    GAO Jiaming,PAN Junfeng,DU Taotao,et al. Characteristics and prevention and control status quo of rock burst in northeastern mining area of China[J]. Coal Science and Technology,2021,49(3):49-56.
    [9] 范京道,徐建军,张玉良,等. 不同煤层地质条件下智能化无人综采技术[J]. 煤炭科学技术,2019,47(3):43-52.

    FAN Jingdao,XU Jianjun,ZHANG Yuliang,et al. Intelligent unmanned fully-mechanized mining technology under conditions of different seams geology[J]. Coal Science and Technology,2019,47(3):43-52.
    [10] 王国法,刘峰,庞义辉,等. 煤矿智能化:煤炭工业高质量发展的核心技术支撑[J]. 煤炭学报,2019,44(2):349-357.

    WANG Guofa,LIU Feng,PANG Yihui,et al. Coal mine intellectualization:the core technology of high quality development[J]. Journal of China Coal Society,2019,44(2):349-357.
    [11] 王国法,张德生. 煤炭智能化综采技术创新实践与发展展望[J]. 中国矿业大学学报,2018,47(3):459-467.

    WANG Guofa,ZHANG Desheng. Innovation practice and development prospect of intelligent mechanized technology for coal mine[J]. Journal of China University of Mining & Technology,2018,47(3):459-467.
    [12] 王国法,庞义辉,张传昌,等. 超大采高智能化综采成套技术与装备研发及适应性研究[J]. 煤炭工程,2016,48(9):6-10.

    WANG Guofa,PANG Yihui,ZHANG Chuanchang,et al. Research and development and adaptability of intelligent fully mechanized mining technology and equipment with super large mining height[J]. Coal Engineering,2016,48(9):6-10.
    [13] 王国法,张金虎,徐亚军,等. 深井厚煤层长工作面支护应力特性及分区协同控制技术[J]. 煤炭学报,2021,46(3):763-773.

    WANG Guofa,ZHANG Jinhu,XU Yajun,et al. Supporting stress characteristics and zonal cooperative control technology of long working face in deep thick coal seam[J]. Journal of China Coal Society,2021,46(3):763-773.
    [14] 王国法,胡相捧,刘新华,等. 千米深井大采高俯采工作面四柱液压支架适应性分析[J]. 煤炭学报,2020,45(3):865-875.

    WANG Guofa,HU Xiangpeng,LIU Xinhua,et al. Adaptability analysis of four-leg hydraulic support for underhand working face with large mining height of kilometer deep mine[J]. Journal of China Coal Society,2020,45(3):865-875.
    [15] 王国法,范京道,徐亚军,等. 煤炭智能化开采关键技术创新进展与展望[J]. 工矿自动化,2018,44(2):5-12.

    WANG Guofa,FAN Jingdao,XU Yajun,et al. Innovation progress and prospect on key technologies of intelligent coal mining[J]. Industry and Mine Automation,2018,44(2):5-12.
    [16] 方新秋,梁敏富,李爽,等. 智能工作面多参量精准感知与安全决策关键技术[J]. 煤炭学报,2020,45(1):493-508.

    FANG Xinqiu,LIANG Minfu,LI Shuang,et al. Key technologies of multi-parameter accurate perception and security decision in intelligent working face[J]. Journal of China Coal Society,2020,45(1):493-508.
    [17] 周凯,任怀伟,华宏星,等. 基于油缸压力的液压支架姿态及受载反演[J]. 煤矿开采,2017,22(5):36-40.

    ZHOU Kai,REN Huaiwei,HUA Hongxing,et al. Loading inversion and hydraulic support pose based on cylinder pressure[J]. Coal Mining Technology,2017,22(5):36-40.
    [18] 韩哲,杜毅博,任怀伟,等. 基于LoRaWAN的液压支架状态监测系统[J]. 工矿自动化,2020,46(8):89-93.

    HAN Zhe,DU Yibo,REN Huaiwei,et al. Hydraulic support condition monitoring system based on LoRaWAN[J]. Industry and Mine Automation,2020,46(8):89-93.
    [19] 李帅帅,任怀伟. 综采工作面“三机”设备位姿测量技术研究现状与展望[J]. 煤炭科学技术,2020,48(9):218-226.

    LI Shuaishuai,REN Huaiwei. Research status and development trend of position and posture measurement technology on hydraulic support,scraper conveyor,shearer in fully-mechanized mining face[J]. Coal Science and Technology,2020,48(9):218-226.
    [20] 王渊,李红卫,郭卫,等. 基于图像识别的液压支架护帮板收回状态监测方法[J]. 工矿自动化,2019,45(2):47-53.

    WANG Yuan,LI Hongwei,GUO Wei,et al. Monitoring method of recovery state of hydraulic support guard plate based on image recognition[J]. Industry and Mine Automation,2019,45(2):47-53.
    [21] 张旭辉,王冬曼,杨文娟. 基于视觉测量的液压支架位姿检测方法[J]. 工矿自动化,2019,45(3):56-60.

    ZHANG Xuhui,WANG Dongman,YANG Wenjuan. Position detection method of hydraulic support based on vision measurement[J]. Industry and Mine Automation,2019,45(3):56-60.
    [22] 任怀伟,赵国瑞,周杰,等. 智能开采装备全位姿测量及虚拟仿真控制技术[J]. 煤炭学报,2020,45(3):956-971.

    REN Huaiwei,ZHAO Guorui,ZHOU Jie,et al. Key technologies of all position and orientation monitoring and virtual simulation and control for smart mining equipment[J]. Journal of China Coal Society,2020,45(3):956-971.
    [23] 李森. 基于惯性导航的工作面直线度测控与定位技术[J]. 煤炭科学技术,2019,47(8):169-174.

    LI Sen. Measurement & control and localization for fully-mechanized working face alignment based on inertial navigation[J]. Coal Science and Technology,2019,47(8):169-174.
    [24] 牛剑峰. 综采工作面直线度控制系统研究[J]. 工矿自动化,2015,41(5):5-8.

    NIU Jianfeng. Research of straightness control system of fully-mechanized coal mining face[J]. Industry and Mine Automation,2015,41(5):5-8.
    [25] 张科学,李首滨,何满潮,等. 智能化无人开采系列关键技术之一:综采智能化工作面调斜控制技术研究[J]. 煤炭科学技术,2018,46(1):139-149.

    ZHANG Kexue,LI Shoubin,HE Manchao,et al. Study on key technologies of intelligent unmanned coal mining series I:study on diagonal adjustment control technology of intelligent fully-mechanized coal mining face[J]. Coal Science and Technology,2018,46(1):139-149.
    [26] 梅伏萍,王鹏. 大倾角中厚偏薄煤层工作面高效开采输送装备研究与应用[J]. 煤矿机械,2021,42(7):174-176.

    MEI Fuping,WANG Peng. Research and application of high-efficiency mining and conveying equipment in large inclined medium thick and thin coal seam working face[J]. Coal Mine Machinery,2021,42(7):174-176.
    [27] 王然风, 付翔, 赵阳升, 等. 适应液压支架动作的稳压供液技术研究[J]. 工矿自动化, 2018, 44(2): 32-38.

    WANG Ranfeng, FU Xiang, ZHAO Yangsheng, et al. Research on the technology of constant pressure liquid supply adapted to the action of hydraulic support[J]. Industry and Mine Automation 2018, 44(2): 32-38.
    [28] 付翔,王然风,赵阳升,等. 基于交叠协同逻辑的液压支架运行自适应稳压供液控制方法[J]. 煤炭学报,2020,45(5):1891-1900.

    FU Xiang,WANG Ranfeng,ZHAO Yangsheng,et al. Self-adaptive control method of fluid feeding with steady pressure for hydraulic support based on overlapping synergetic logic[J]. Journal of China Coal Society,2020,45(5):1891-1900.
    [29] 任怀伟,巩师鑫,刘新华,等. 煤矿千米深井智能开采关键技术研究与应用[J]. 煤炭科学技术,2021,49(4):149-158.

    REN Huaiwei,GONG Shixin,LIU Xinhua,et al. Research and application on key techniques of intelligent mining for kilometer deep coal mine[J]. Coal Science and Technology,2021,49(4):149-158.
    [30] 张德生,任怀伟,卞冀,等. 综采工作面超前巷道自动化辅助作业技术现状与展望[J]. 矿山机械,2020,48(5):1-6. doi: 10.3969/j.issn.1001-3954.2020.05.001

    ZHANG Desheng,REN Huaiwei,BIAN Ji,et al. Present situation and prospect of automatic auxiliary operation technology of advanced roadway in fully mechanized mining face[J]. Mining & Processing Equipment,2020,48(5):1-6. doi: 10.3969/j.issn.1001-3954.2020.05.001
    [31] 徐亚军,张坤,李丁一,等. 超前支架自适应支护理论与应用[J]. 煤炭学报,2020,45(10):3615-3624.

    XU Yajun,ZHANG Kun,LI Dingyi,et al. Theory and application of self-adaptive support for advanced powered support[J]. Journal of China Coal Society,2020,45(10):3615-3624.
    [32] 李丁一,徐亚军. 超前液压支架沿工作面走向承载特性研究[J]. 煤矿开采,2018,23(1):5-7.

    LI Dingyi,XU Yajun. Study on bearing behavior of advanced hydraulic support along working face strike[J]. Coal Mining Technology,2018,23(1):5-7.
    [33] 王国法,牛艳奇. 超前液压支架与围岩耦合支护系统及其适应性研究[J]. 煤炭科学技术,2016,44(9):19-25.

    WANG Guofa,NIU Yanqi. Study on advance hydraulic powered support and surrounding rock coupling support system and suitability[J]. Coal Science and Technology,2016,44(9):19-25.
    [34] 李刚. 回风顺槽无反复支撑超前支护运载成套装备的研究[J]. 煤矿机械,2020,41(6):35-37.

    LI Gang. Research on complete set of equipment for advanced support and transportation without repeated support in return air chute[J]. Coal Mine Machinery,2020,41(6):35-37.
    [35] 张德生, 任怀伟, 徐亚军, 等. 运输顺槽运−支一体化超前支护系统: 202010212281.2[P]. 2020-06-16.

    ZHANG Desheng, REN Huaiwei, XU Yajun, et al. Integrated advanced support system of transportation and support along the transportation chute: 202010212281.2[P]. 2020-06-16.
