Coal wall deformation monitoring and concentrated load inversion technology based on intelligent support devices
-
摘要:
煤壁片帮是制约煤炭安全高效开发的主要因素，精准监测煤壁支护状态是提高煤壁稳定性、保证回采安全的基础。针对传统煤壁变形监测技术精度低、范围小、实时性差等问题，开发了一种基于光纤布拉格光栅（FBG）的智能护帮装置，创新性地将FBG嵌入液压支架护帮板中，构建了基于粒子群优化（PSO）−径向基函数（RBF）神经网络的煤壁集中载荷反演模型，以监测煤壁支护状态。针对复杂工况下变截面结构件受力情况理论计算的局限，基于分布式光栅应变数据，通过PSO−RBF神经网络模型建立微观力学参数与宏观力学参数的对应关系，实现了对煤壁护帮板集中载荷位置及大小的高精度反演。实验结果表明：该模型在多点标定实验样本上的预测误差较低，拟合优度较高；水平、竖直方向位置坐标及载荷大小在训练集上的平均绝对误差分别为0.460 6，0.248 7，0.973 2；相比于载荷大小预测，模型对集中载荷位置预测的误差更小。研究成果为煤壁支护状态监测与回采安全保障提供了重要的理论与技术基础，也为液压支架其他结构件所受围岩载荷的精准测量提供了一种可靠方法。
Abstract:Coal wall spalling is a major factor restricting the safe and efficient development of coal mining. Accurate monitoring of coal wall support conditions is essential to improving wall stability and ensuring safe mining. To address the issue of low precision, limited range, and poor real-time performance in traditional coal wall deformation monitoring technologies, an intelligent support device based on Fiber Bragg Grating (FBG) was developed. The FBG was innovatively embedded into the hydraulic support shield plate, and a concentrated load inversion model for the coal wall based on Particle Swarm Optimization (PSO)-Radial Basis Function (RBF) neural networks was established to monitor the support conditions of the coal wall. To overcome the limitations of theoretical calculations for stress conditions of structural components with varying cross-sections under complex working conditions, a corresponding relationship between micro-mechanical and macro-mechanical parameters was established using distributed grating strain data based on the PSO-RBF neural network model. This enabled high-precision inversion of the position and magnitude of concentrated load on the support shield plate of the coal wall. Experimental results showed that the model achieved low prediction errors and high goodness of fit in multi-point calibration samples. The average absolute errors of position coordinates and load magnitude in the training set were 0.460 6, 0.248 7, and 0.973 2, respectively. Compared to the load magnitude prediction, the model exhibited smaller errors in predicting the position of concentrated loads. The research findings provide an important theoretical and technical foundation for monitoring coal wall support conditions and ensuring safe mining, as well as a reliable method for accurate measurement of surrounding rock loads on other structural components of hydraulic supports.
-
-
![]()

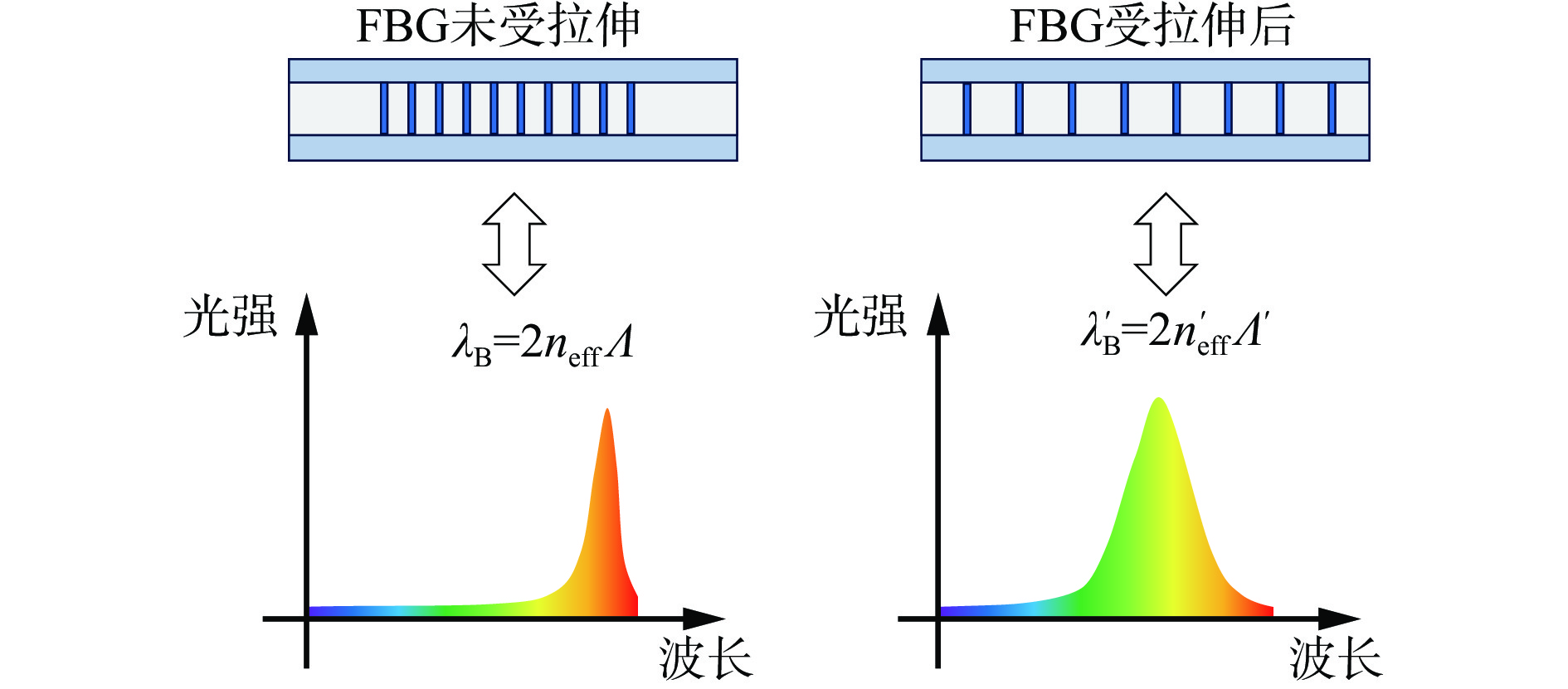

图 1 FBG受拉伸前后波长特征
Figure 1. Wavelength characteristics of Fiber Bragg Grating (FBG) before and after tension
![]()

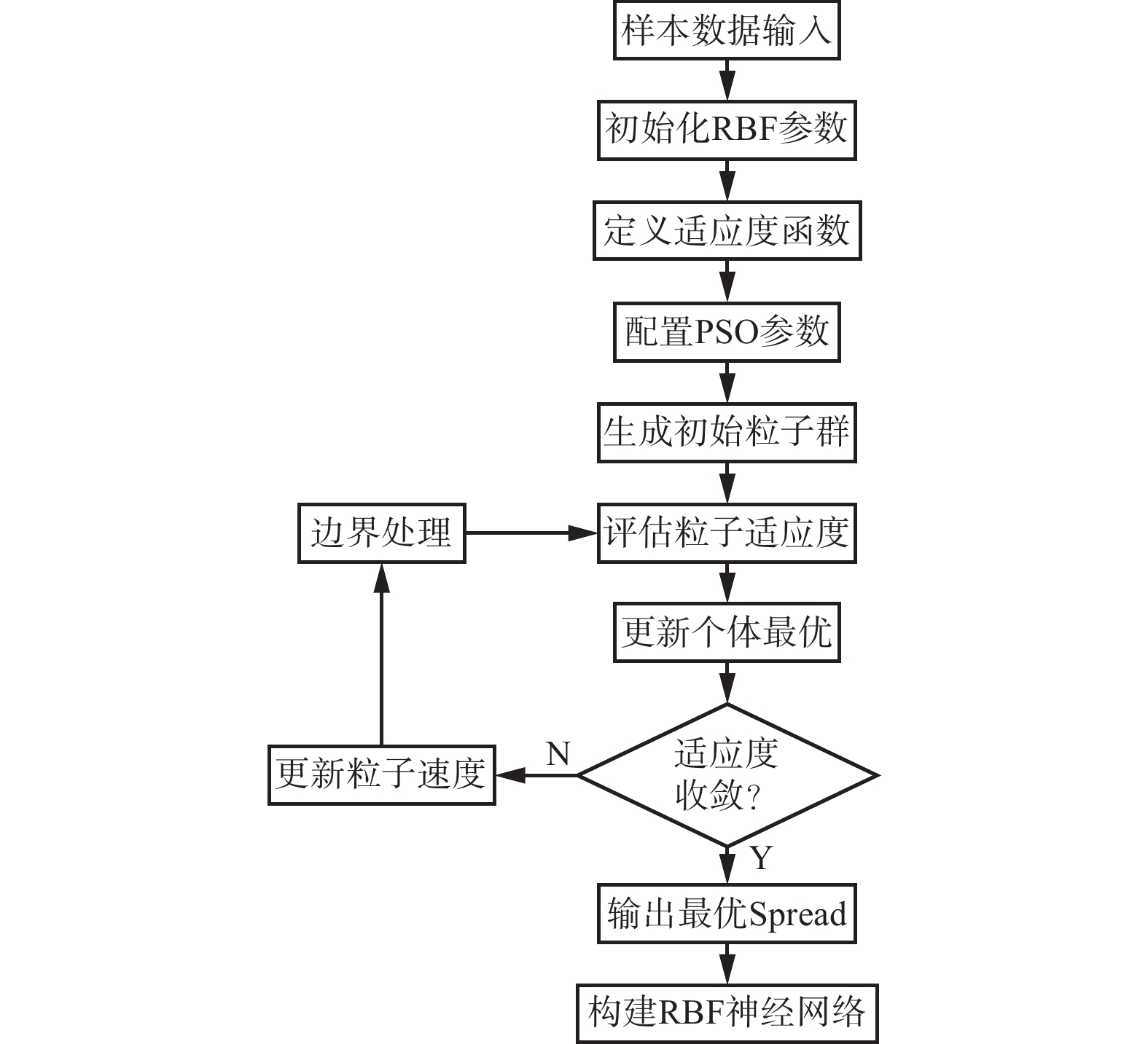

图 8 PSO−RBF神经网络模型构建流程
Figure 8. Construction process of Particle Swarm Optimization（PSO）-Radial Basis Function（RBF ）
![]()
图 10 智能护帮装置变形监测与载荷反演实验平台
Figure 10. Experimental platform for deformation monitoring and load inversion of intelligent face guard
![]()
图 11 FBG传感器位置及光栅轴线方向
Figure 11. FBG sensor positions and direction of the grating axis
表 1 PSO优化算法参数
Table 1 Parameters of PSO optimization algorithm
算法参数 值 备注 dim 1 优化参数个数 lb 0.01 优化参数目标下限 ub 1000 优化参数目标上限 pop 10 种群数量 Max_iteration 45 最大迭代次数
下载: 导出CSV
-
