Research on coal pillar width and stability control for driving along goaf under hard roofs
-
摘要:
坚硬顶板下沿空掘巷围岩大变形控制是目前煤炭地下安全高效开采的技术难题。目前针对厚硬顶板下沿空掘巷煤柱宽度确定及围岩稳定控制的研究未能充分探讨煤柱稳定性影响因素，尤其忽略了基本顶关键块B回转变形压力的传递效应。针对该问题，以利民煤矿90302工作面运输巷为工程背景，建立了厚硬顶板下煤柱宽度力学模型，推导得出煤柱合理宽度为6.93 m，考虑工程地质条件及施工因素，确定90302运输巷沿空掘巷煤柱宽度为7 m。分析了基本顶关键块B长度，直接顶稳定系数、厚度、回转角度等对煤柱稳定性的影响规律：煤柱稳定性系数随基本顶关键块B长度的增大而减小，随直接顶稳定性系数及其厚度的增大而增大，随煤层内摩擦角和黏聚力的增大而增大。建立UDEC数值计算模型，进一步分析基本顶关键块B长度对7 m煤柱变形、裂隙损伤程度及巷道破坏特征的影响规律：当基本顶关键块B长度为16 m时，90302运输巷两帮及顶板近似呈现对称变形，两帮无明显裂隙产生，围岩稳定程度高。为确保90302运输巷围岩稳定及安全使用，对基本顶关键块B采空区侧悬顶采取水压致裂切顶卸压控制技术，实际应用结果表明: 巷道掘进完成28 d后围岩变形趋于稳定，回采期间顶底板移近量最大值为148 mm，两帮收敛量最大值为196 mm，确保了工作面安全高效回采。

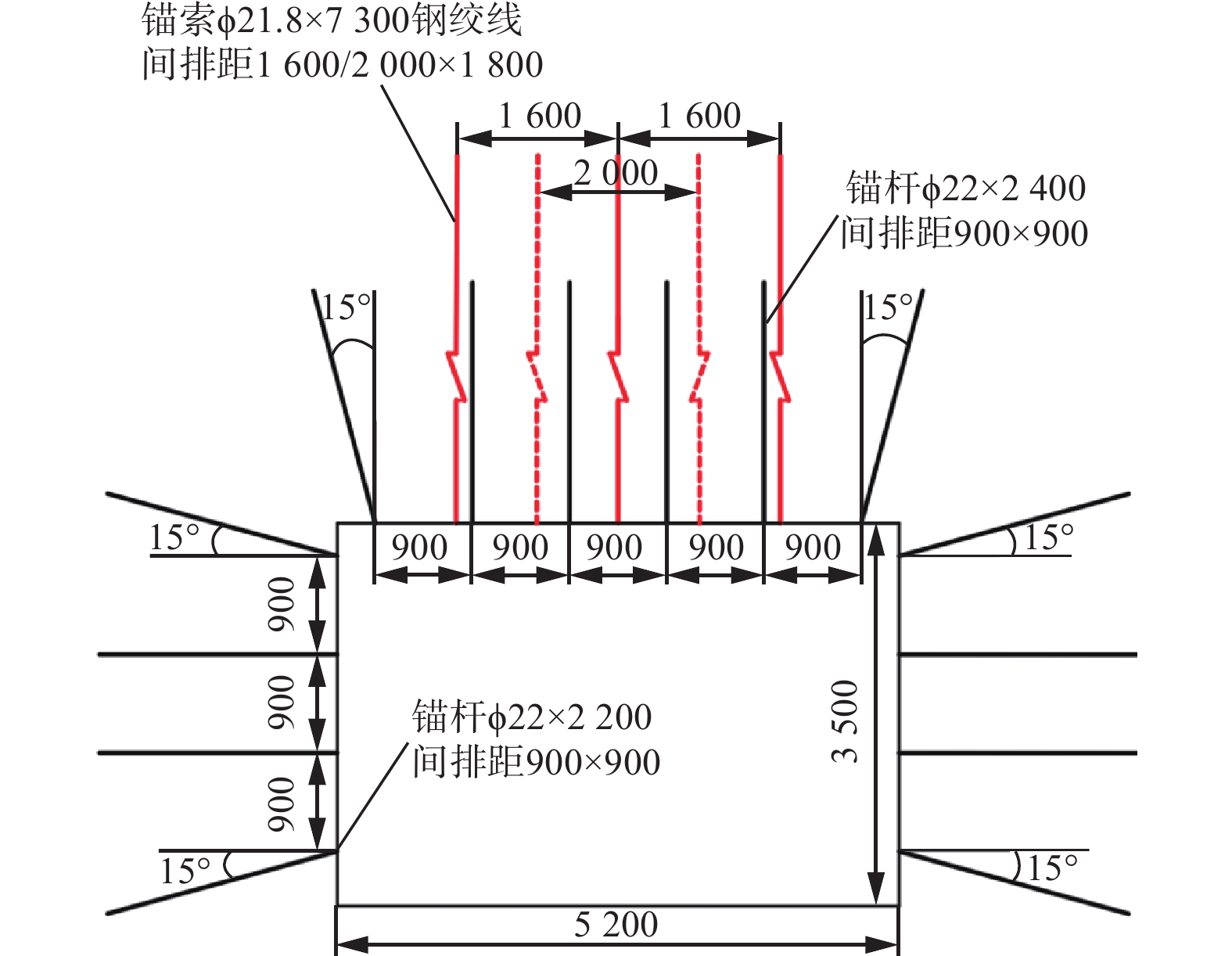

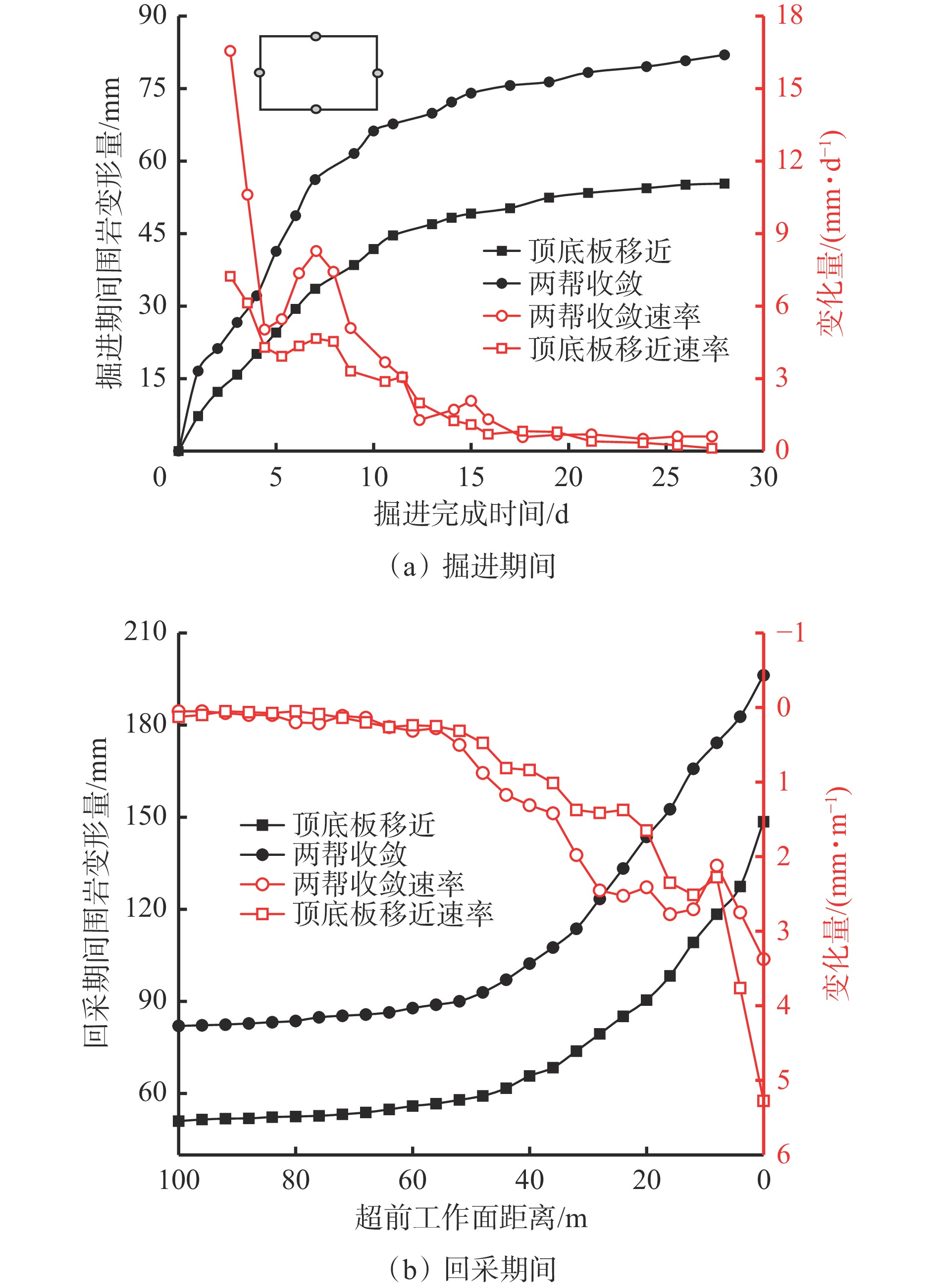

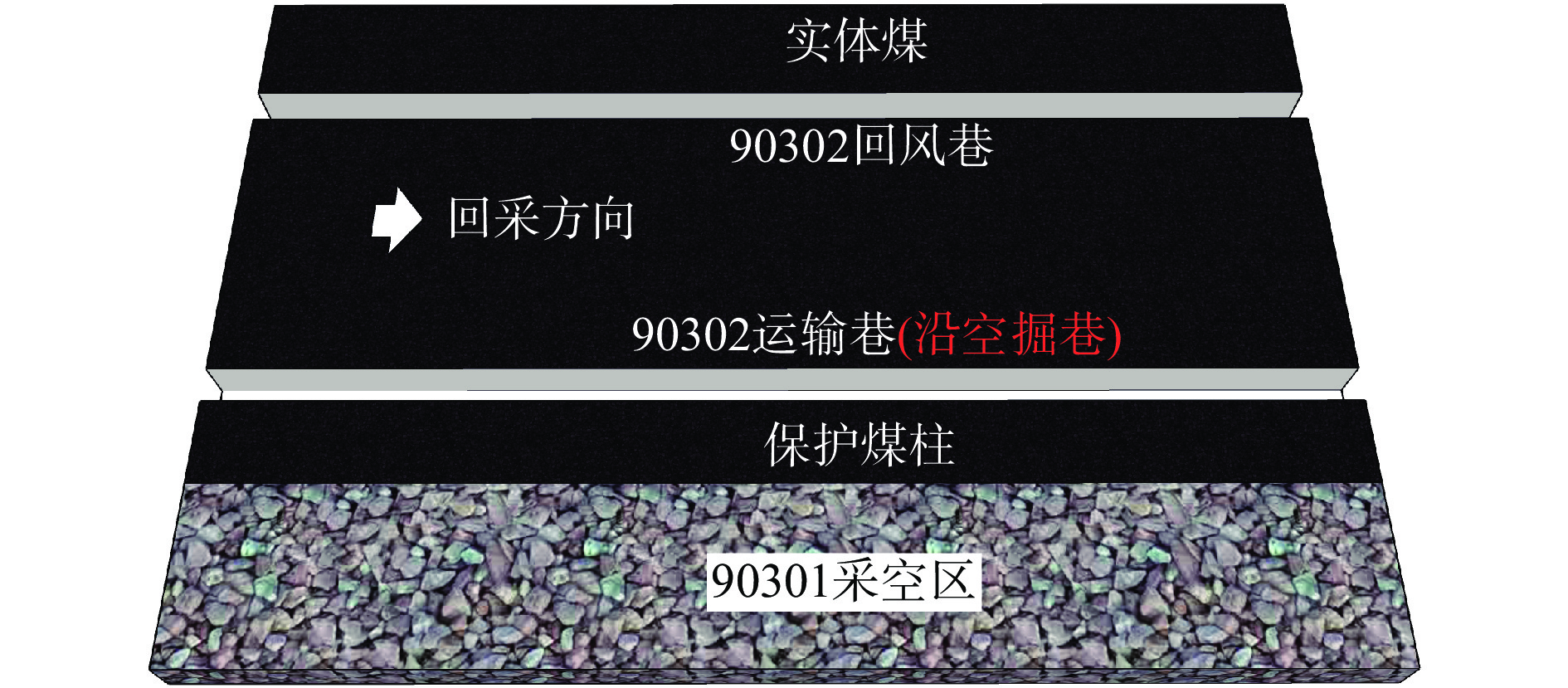

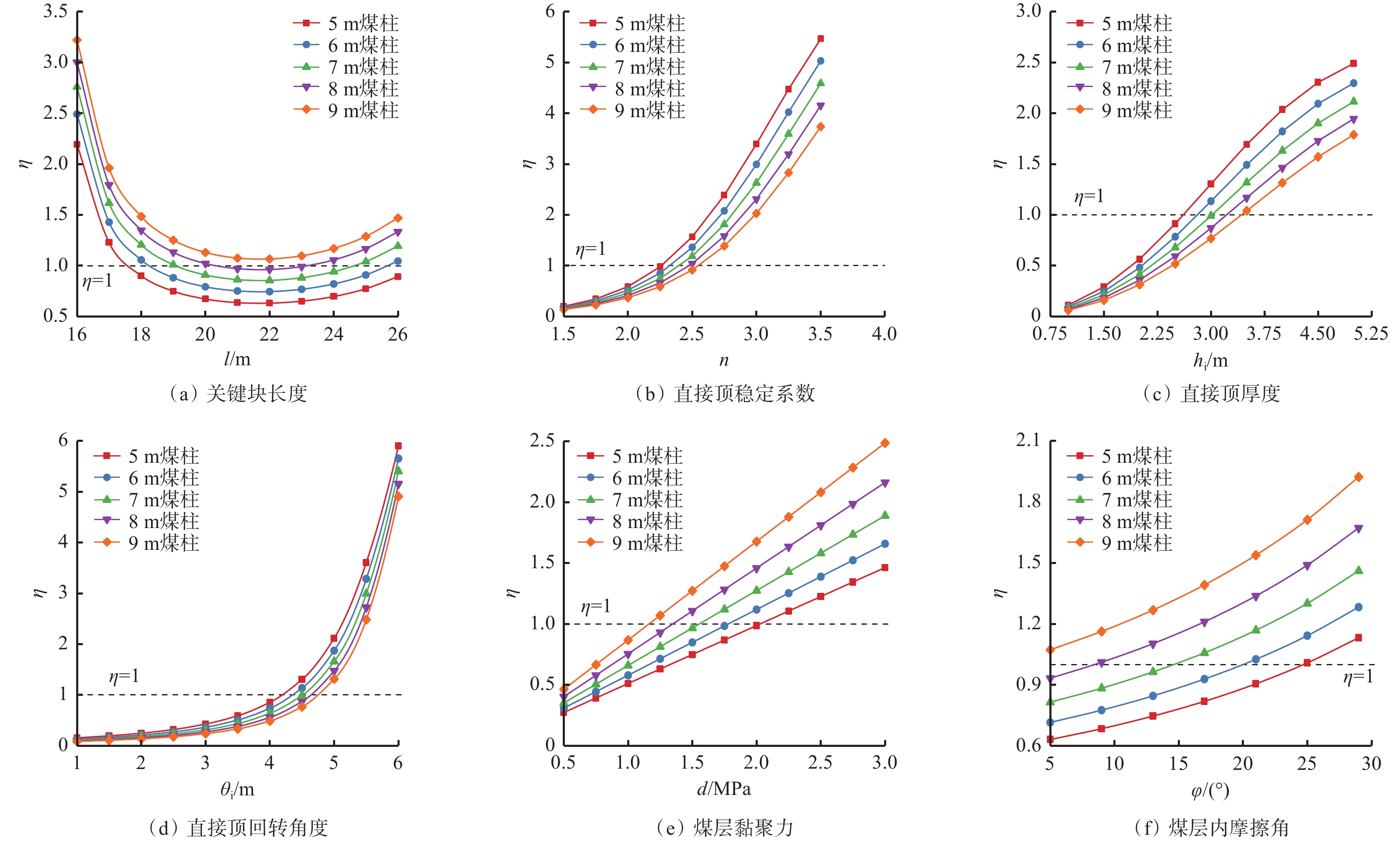

Abstract:Controlling large deformations of surrounding rock in driving along goaf under hard roofs is a technical challenge for safe and efficient underground coal mining. Currently, studies on determining coal pillar width in driving along goaf and surrounding rock stability control under thick-hard roofs fail to thoroughly discuss the influencing factors on pillar stability, especially neglecting the transmission effects of rotational deformation pressure from key block B in the main roof. To address this issue, a mechanical model for coal pillar width under a thick-hard roof was established, with the 90302 haulage roadway in Limin Coal Mine as the engineering background. The model yielded an optimal pillar width of 6.93 m. Considering engineering geological conditions and construction factors, the coal pillar width in driving along goaf for the 90302 haulage roadway was determined to be 7 m. The influence patterns of key block B in the main roof on coal pillar stability were analyzed, including its length, immediate roof stability coefficient, immediate roof thickness, and rotation angle. The coal pillar stability coefficient decreased with a increase in the length of key block B, and increased with an increase in the immediate roof stability coefficient and thickness, and an increase of the friction angle and cohesion within the coal seam. A Universal Distinct Element Code (UDEC) numerical calculation model was also developed to further analyze the influence patterns of key block B length on the deformation, fracture damage degree, and roadway failure characteristics of the 7-meter wide coal pillar. It was found that when key block B was 16 meters long, the two sides and the roof of the 90302 haulage roadway exhibited nearly symmetrical deformation without evident fractures, indicating a high degree of surrounding rock stability. To ensure surrounding rock stability and safe use of 90302 haulage roadway, hydraulic fracturing roof-cutting and pressure-relief control technology was adopted for the side suspended roof of key block B in the main roof. The practical application results demonstrated that surrounding rock deformation stabilized within 28 days after roadway excavation. During the mining period, the maximum roof-to-floor convergence reached 148 mm, and the maximum convergence of the two sides was 196 mm, guaranteeing the safe and effective mining of the working face.
-
-
![]()

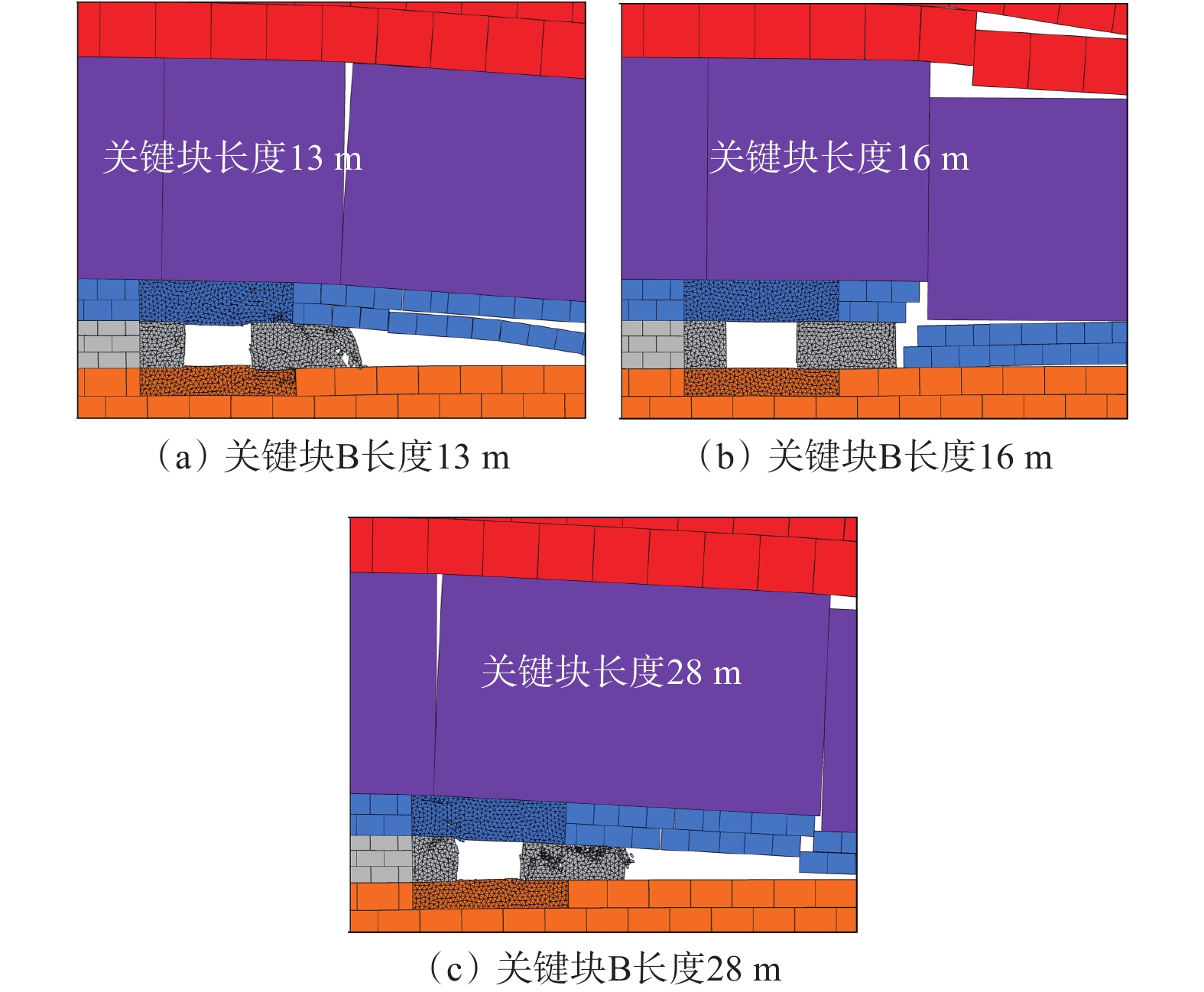

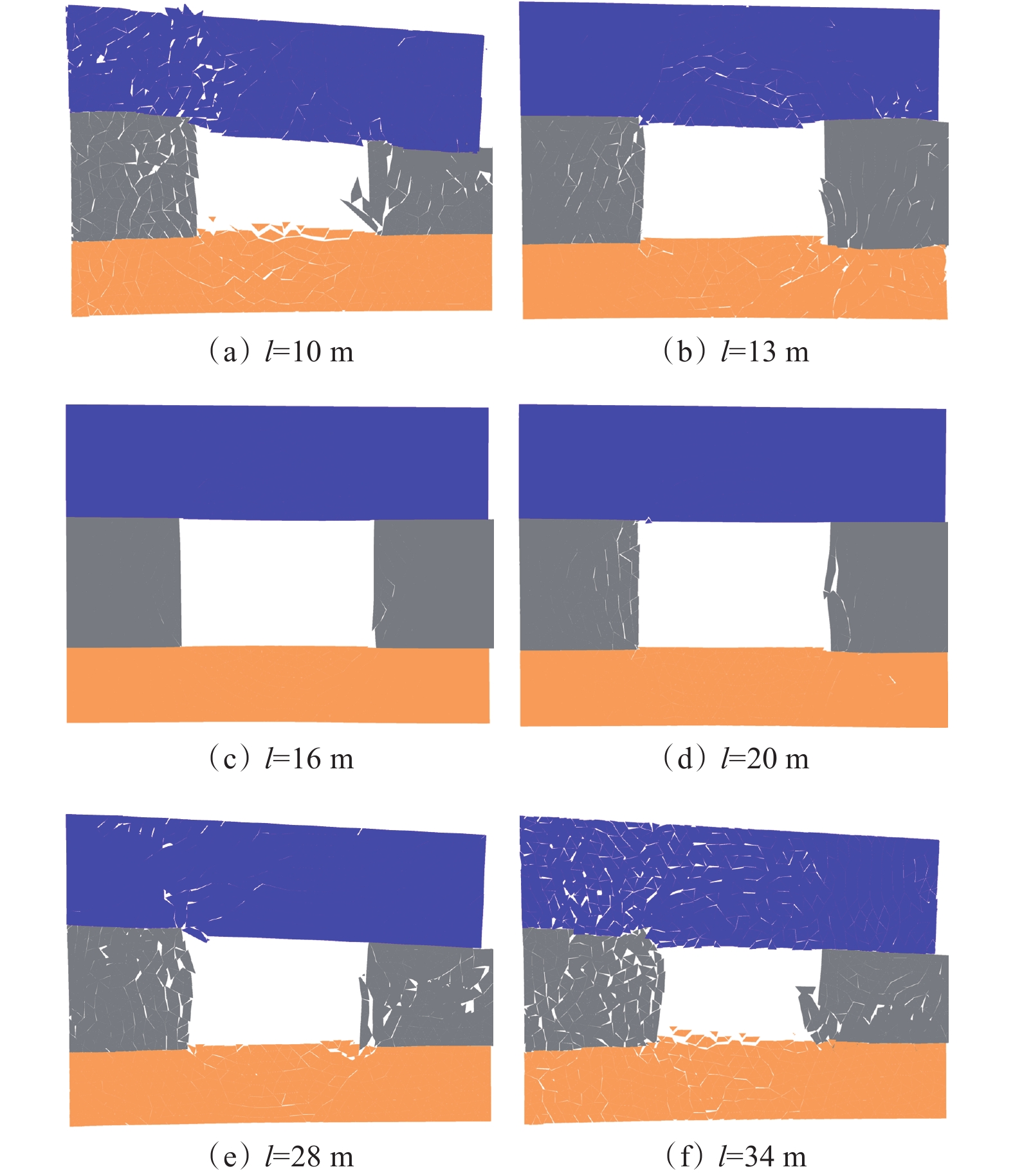

图 10 巷道围岩变形破坏特征
Figure 10. Deformation and failure characteristics of surrounding rock in roadways

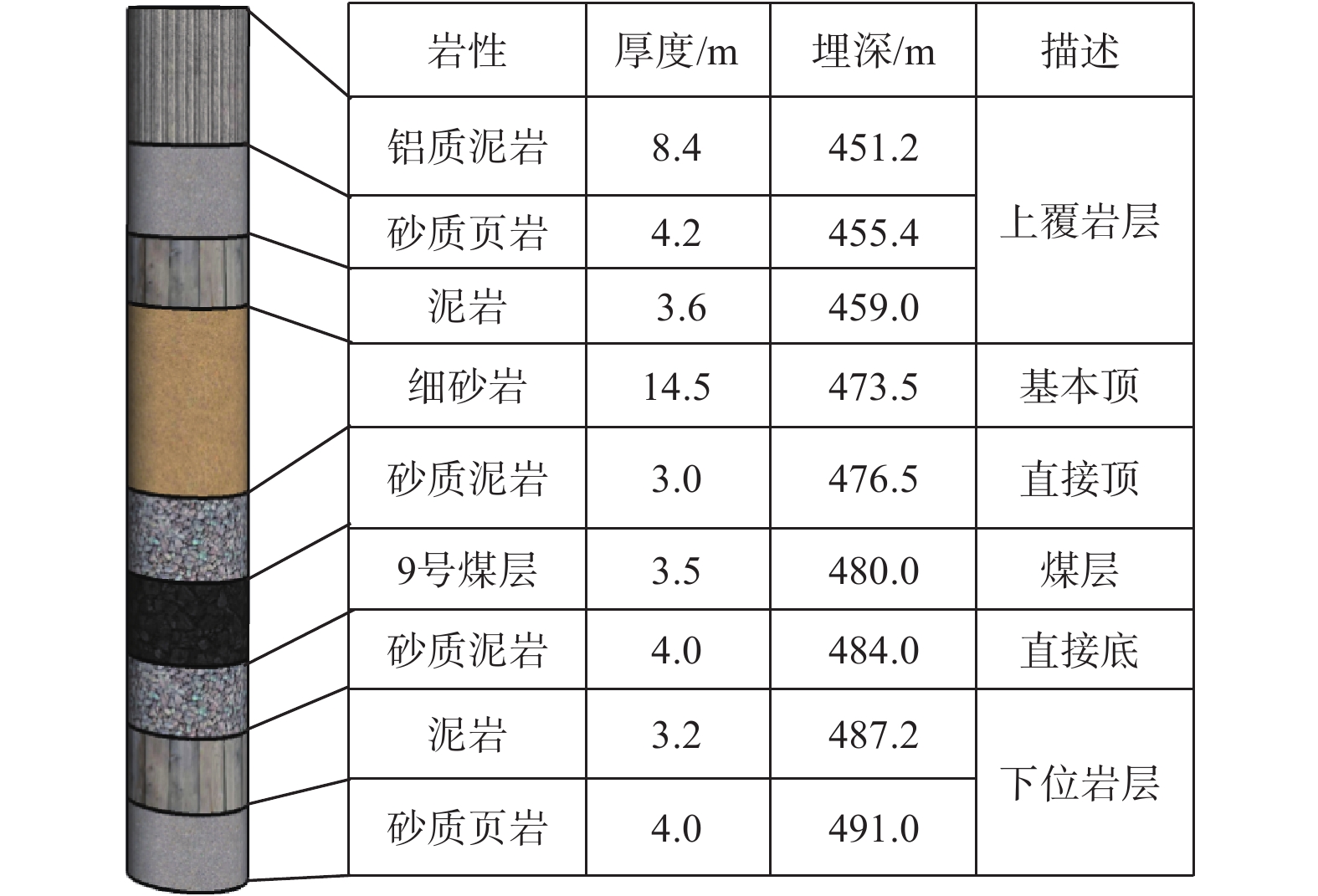

表 1 煤岩体物理力学参数及几何特征
Table 1 Physical and mechanical parameters and geometric characteristics of coal and rock masses
参数 值 参数 值 直接顶厚度/m 3.0 煤层黏聚力/MPa 1.54 直接顶容重/（kN·m−3） 24.6 煤层内摩擦角/（°） 26.0 直接顶压缩模量/MPa 900.0 关键块B长度/m 20.0 沿空掘巷宽度/m 5.2 关键块B回转角度/（°） 6.7 直接顶回转角度/（°） 4.5 锚杆支护强度/MPa 0.1 直接顶稳定系数 2.4
下载: 导出CSV

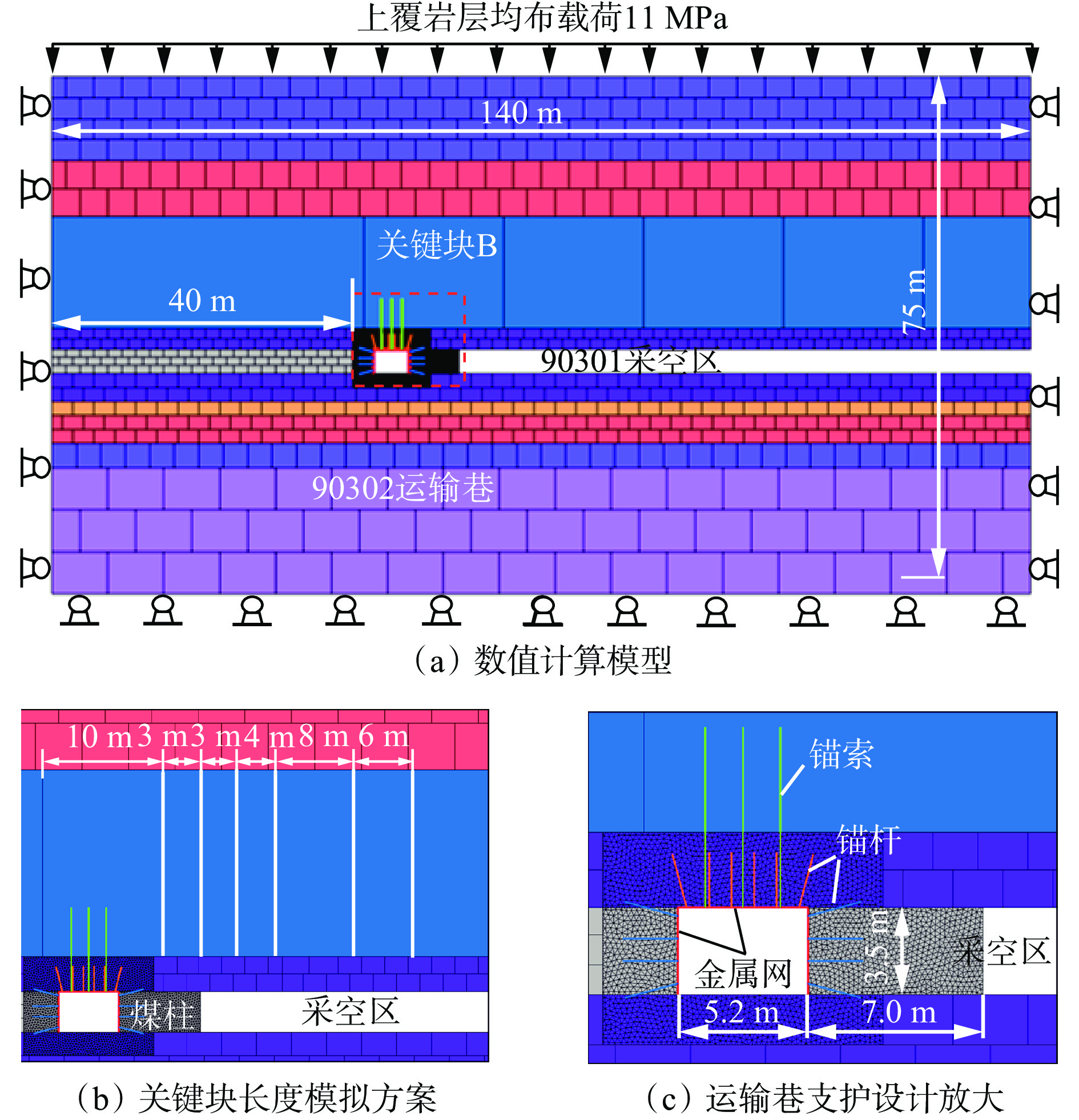

表 2 模型中块体及节理参数
Table 2 Block and joint parameters in model
岩性 块体参数 节理参数 密度/（kg·m−3） 弹性模量/GPa 泊松比 法向刚度/（GPa·m−1） 切向刚度/（GPa·m−1） 黏聚力/MPa 内摩擦角/（°） 抗拉强度/MPa 砂质泥岩 2560 3.75 0.24 24.80 14.20 2.85 27 2.80 泥岩 2440 3.95 0.25 24.10 18.60 2.90 25 2.42 细砂岩 2520 5.72 0.24 34.71 19.67 4.64 30 3.73 9号煤层 1340 0.35 0.24 19.20 10.40 2.01 24 1.65 砂质页岩 2380 3.45 0.26 25.20 14.20 2.84 27 2.04
下载: 导出CSV
-
