Prediction method of gas emission in working face based on feature selection and BO-GBDT
-
摘要:
影响工作面瓦斯涌出量的特征众多，利用主成分分析等方法对原始数据降维，可节省计算资源，但会改变数据集的原始特征结构，损失部分原始数据特征的细节信息。针对该问题，建立梯度提升决策树（GBDT）瓦斯涌出量预测模型，利用5种特征选择算法对数据集进行特征过滤，分析每种特征组合在GBDT模型中的拟合度、计算时间及预测结果，优选出包装法为最佳的特征选择算法；结合现场实际，优选出8种特征进行瓦斯涌出量预测，结果表明，特征数量的多少与预测结果的准确性和泛化性并不呈正比关系，冗余特征或无关特征的存在反而会降低模型的预测准确性。为进一步提高模型精度，通过5种超参数寻优算法对GBDT模型进行超参数寻优，对比分析每一种超参数组合下GBDT模型的预测性能，结果表明：寻优算法本身对GBDT模型的准确性和泛化性影响较小，但基于树结构Parzen估计器(TPE)的贝叶斯优化（BO）算法所得出的最优超参数组合在GBDT模型中具有最高的准确率和相对较少的优化时间，其优化性能最佳，以此建立BO−GBDT模型。将特征选择后的数据集划分出训练集及测试集，利用BO−GBDT模型进行工作面瓦斯涌出量预测，并与随机森林、支持向量机、神经网络模型进行对比，结果表明：BO−GBDT模型具有更高的准确性和泛化性，其平均相对误差为2.61%，相比随机森林、支持向量机、神经网络模型分别降低了35.56%，37.41%，32.03%，能够满足现场工程应用需求，为矿井安全生产提供理论指导。
Abstract:Gas emission in the working face is influenced by a variety of factors. Dimensionality reduction methods, such as Principal Component Analysis, can reduce computational resources but may alter the original feature structure, leading to a loss of some detailed information in the dataset. To address this issue, a gradient boosting decision tree (GBDT) model for gas emission prediction was developed. Five feature selection algorithms were applied to filter the dataset, and the model fit, computational time, and prediction accuracy of each feature combination in the GBDT model were analyzed. The wrapping method was identified as the most effective feature selection algorithm. Based on field conditions, 8 optimal features were selected for prediction. The results indicated that the number of features did not necessarily correlate with the prediction's accuracy or generalization capability. In fact, redundant or irrelevant features reduced the model's prediction accuracy. To further improve performance, five hyperparameter optimization algorithms were applied to the GBDT model. A comparative analysis of prediction performance for each hyperparameter combination was conducted. The results showed that the optimization algorithm itself had minimal impact on the accuracy and generalization of the GBDT model. However, the optimal hyperparameter combination, obtained through the tree-structured Parzen estimator (TPE) based Bayesian optimization (BO) algorithm, provided the highest accuracy and relatively short optimization time, yielding the best optimization performance. Thus, the BO-GBDT model was established. After feature selection, the dataset was divided into training and testing sets, and the BO-GBDT model was used to predict gas emission in the working face. Comparison with random forest, support vector machine, and neural network models showed that the BO-GBDT model achieved the highest accuracy and generalization, with an average relative error of 2.61%. This was 35.56%, 37.41%, and 32.03% lower than the random forest, support vector machine, and neural network models, respectively. The BO-GBDT model meets the field engineering application requirements and provides theoretical guidance for ensuring safe mining production.
-
-
![]()
图 1 数据集特征与标签相关性热图
Figure 1. Heatmap of correlation between features and labels in dataset
![]()

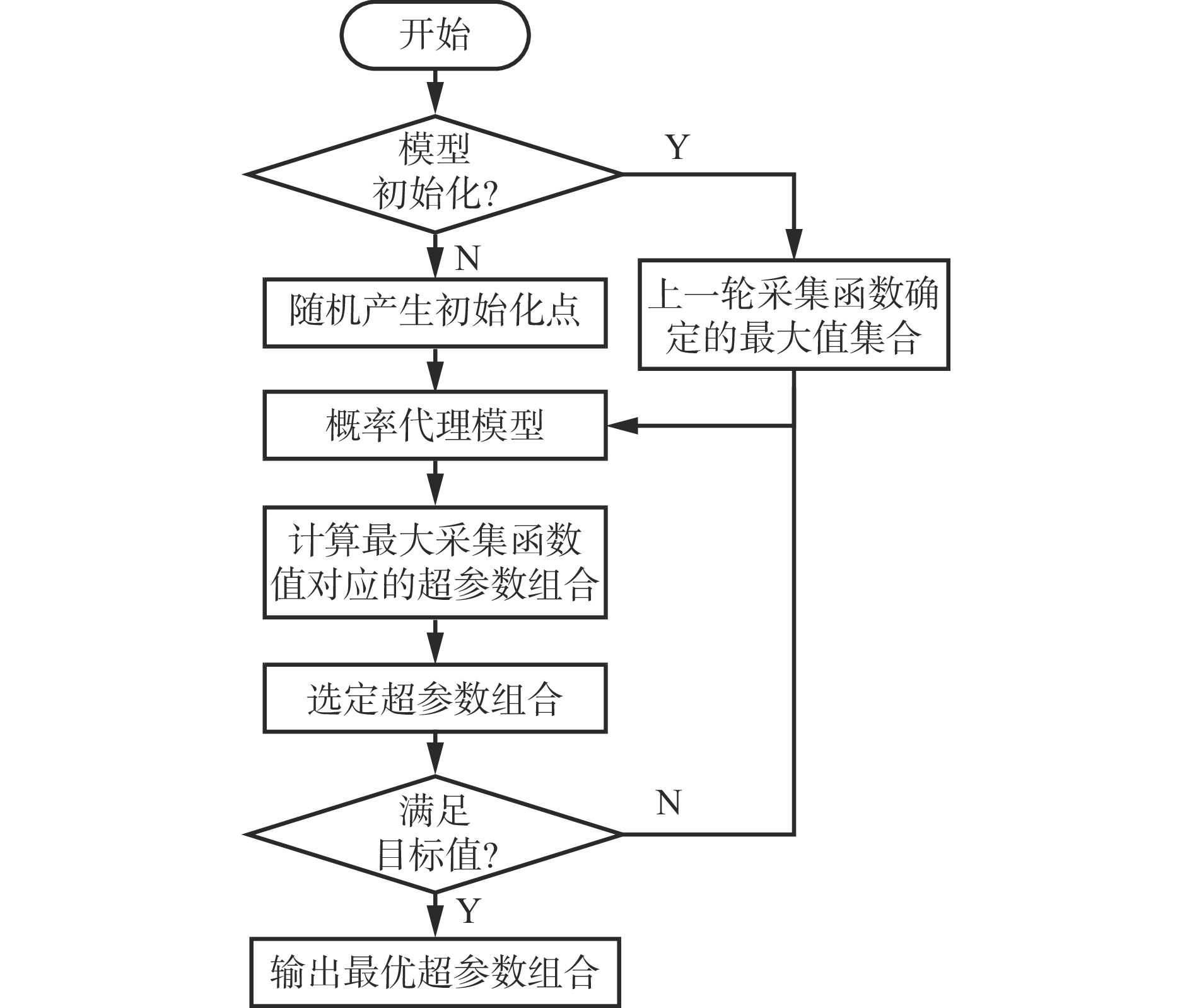

图 2 基于BO算法的超参数优化流程
Figure 2. Hyperparameter optimization process based on Bayesian optimization（BO） algorithm
![]()

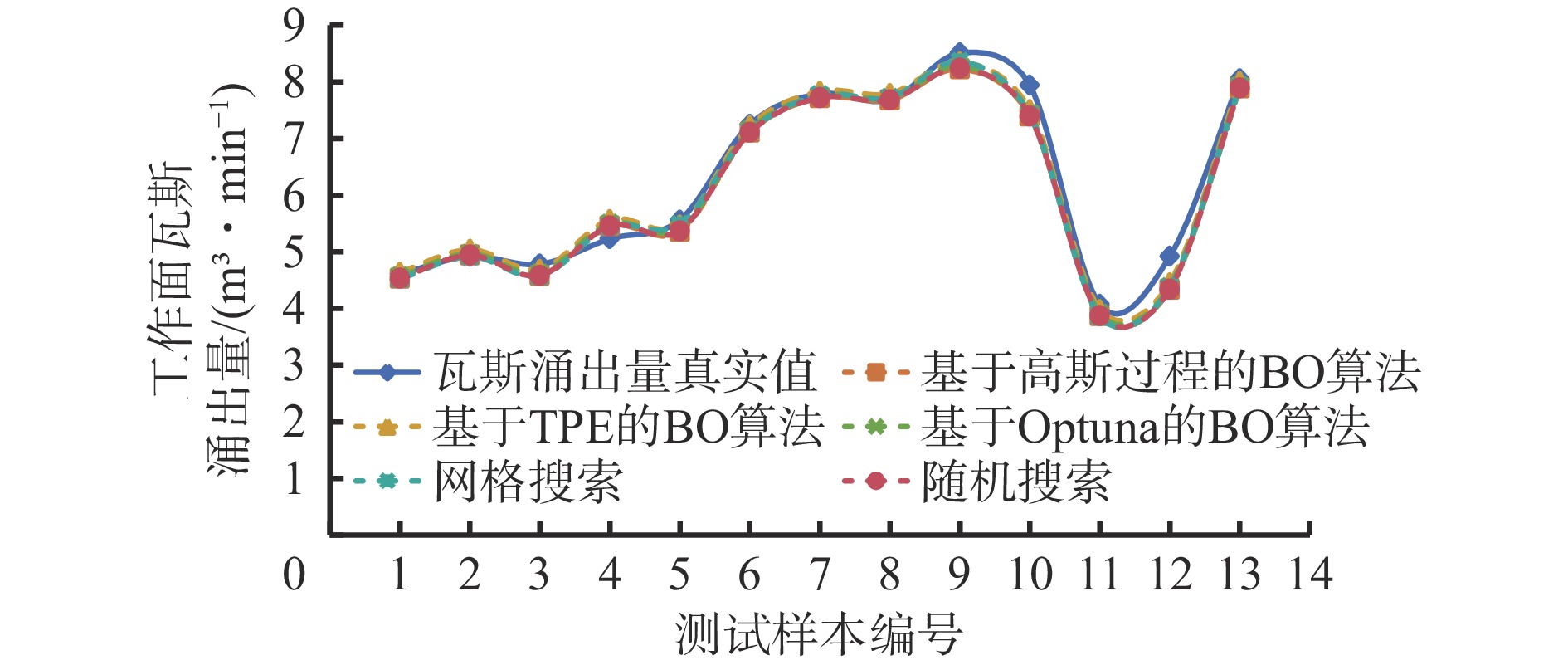

图 3 基于不同超参数组合的GBDT模型预测值与真实值对比
Figure 3. Comparison of predicted and actual values in GBDT models under different hyperparameters combinations
![]()
图 4 基于不同超参数组合的GBDT模型相对误差对比
Figure 4. Comparison of relative errors in GBDT models under different hyperparameters combinations
![]()
图 5 不同特征组合下GBDT模型预测值与真实值对比
Figure 5. Comparison of predicted and actual values in GBDT models under different feature combinations
![]()
图 6 不同特征组合下GBDT模型的相对误差对比
Figure 6. Comparison of relative errors in GBDT models under different feature combinations
![]()

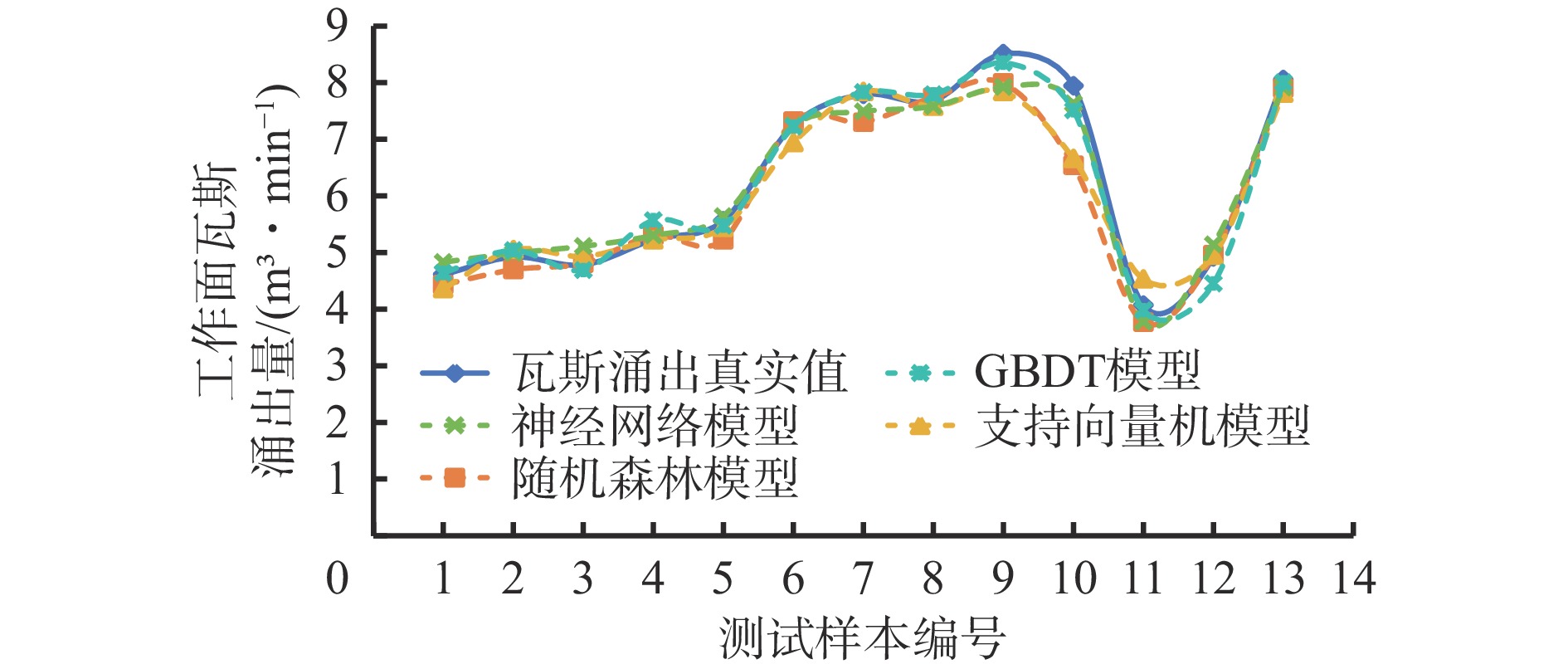

图 7 4种模型的预测数据与真实数据对比
Figure 7. Comparison of predicted data and actual values of four models
表 1 回采工作面瓦斯涌出量样本数据
Table 1 Gas emission sample data of mining working face
序号 X1/（m3·t−1） X2/m X3/m X4/（°） X5/m X6/m X7/m X8/% X9/t X10/（m3·t−1） X11/m X12/m X13 Y/（m3·min−1） 1 3.90 499 4.3 15 4.3 10 280 0.93 17217 3.10 2.80 52 5.89 2.71 2 3.16 502 2.7 8 2.7 10 290 0.93 11197 2.80 1.79 48 4.90 2.84 3 3.40 522 3.4 12 3.4 8 280 0.95 10891 2.15 1.72 14 4.71 3.20 4 2.96 540 2.8 10 2.8 8 290 0.95 9289 2.44 2.20 20 4.24 3.60 5 3.68 513 3.5 12 3.5 9 285 0.94 12838 3.28 1.80 19 4.54 3.10 71 2.46 448 2.3 11 2.3 4.33 159 0.95 1998 2.01 1.69 17 4.65 4.07 72 3.12 541 2.6 13 2.6 3.82 166 0.94 2207 2.3 1.81 14 4.72 4.92 73 4.65 630 6.3 12 6.3 2.81 170 0.93 3457 3.34 1.62 19 4.65 8.05
下载: 导出CSV
表 2 不同特征选择算法的特征选择结果
Table 2 Feature selection results of different feature selection algorithms
特征选择算法 特征 R2 计算时间/s X1 X2 X3 X4 X5 X6 X7 X8 X9 X10 X11 X12 X13 方差过滤法 √ √ √ √ √ √ √ × × × √ √ × 0.846 0 0.13 F检验法 √ √ √ × √ √ × √ √ × × × × 0.849 1 0.13 互信息法 √ √ √ √ √ √ √ √ √ √ √ √ √ 0.848 3 0.16 嵌入法 √ √ √ × × √ × √ × × √ × × 0.851 5 0.43 包装法 √ √ × × √ √ × √ × √ × × × 0.851 5 0.14 未进行特征选择 √ √ √ √ √ √ √ √ √ √ √ √ √ 0.848 3 0.16
下载: 导出CSV
表 3 GBDT模型超参数
Table 3 Gradient boosting decision tree（GBDT） model hyperparameters
序号 超参数名称 含义 1 n_estimators 弱学习器最大个数 2 learning_rate 学习率 3 max_features 划分时考虑的特征数量 4 Subsample 子采样比例 5 loss 损失函数选择 6 criterion 衡量每个决策树节点分裂质量的评价指标 7 max_depth 每棵子树的深度 8 min_impurity_split 最小基尼不纯度
下载: 导出CSV
表 4 超参数寻优算法性能对比
Table 4 Performance comparison of hyperparameter optimization algorithms
超参数 网格搜索 随机搜索 基于高斯过程的BO算法 基于TPE的BO算法 基于Optuna的BO算法 max_features log2 sqrt log2 sqrt sqrt loss absolute_error absolute_error absolute_error quantile absolute_error criterion friedman_mse squared_error squared_error friedman_mse squared_error n_estimators 790 783 208 374 421 learning_rate 0.01 0.01 0.106 0 0.296 1 0.214 8 subsample 0.6 0.8 0.562 7 0.311 2 0.473 9 max_depth 6 5 33 2 42 min_impurity_split 0 0.888 9 0.059 4 2.525 0 3.350 1 R2 0.903 4 0.901 6 0.926 6 0.927 2 0.926 6 寻优时间/min 108.9 4.42 8.63 2.36 4.58
下载: 导出CSV
表 5 基于不同超参数组合的GBDT模型相对误差统计
Table 5 Statistical relative errors in GBDT models under different hyperparameter combinations
超参数优化算法 最大相对误差/% 平均相对误差/% 网格搜索算法 11.17 3.15 随机搜索算法 11.78 3.51 基于高斯过程的BO算法 11.79 3.53 基于TPE的BO算法 9.55 2.70 基于Optuna的BO算法 10.97 3.13
下载: 导出CSV
表 6 不同特征组合下GBDT模型的相对误差统计
Table 6 Statistical relative errors in GBDT models under different feature combinations
特征选择方法 最大相对误差/% 平均相对误差/% 方差过滤法 13.48 3.04 F检验法 8.19 2.77 互信息法 9.53 4.30 嵌入法 9.55 2.70 包装法 11.18 2.79 包装法+自选 7.18 2.61
下载: 导出CSV
表 7 4种模型的相对误差统计
Table 7 Statistical relative error in four models
预测模型 最大相对误差% 平均相对误差% 随机森林模型 12.59 4.05 支持向量机模型 12.72 4.17 神经网络模型 8.11 3.84 GBDT模型 7.18 2.61
下载: 导出CSV
-
