基于暂态电流导数的煤矿直流配电线路无通道保护

魏朝阳 段建东

魏朝阳,段建东. 基于暂态电流导数的煤矿直流配电线路无通道保护[J]. 工矿自动化,2023,49(10):26-34.  doi: 10.13272/j.issn.1671-251x.2022120024
引用本文: 魏朝阳,段建东. 基于暂态电流导数的煤矿直流配电线路无通道保护[J]. 工矿自动化,2023,49(10):26-34.  doi: 10.13272/j.issn.1671-251x.2022120024
WEI Zhaoyang, DUAN Jiandong. Non-communication protection of coal mine DC distribution lines based on transient current derivation[J]. Journal of Mine Automation,2023,49(10):26-34.  doi: 10.13272/j.issn.1671-251x.2022120024
Citation: WEI Zhaoyang, DUAN Jiandong. Non-communication protection of coal mine DC distribution lines based on transient current derivation[J]. Journal of Mine Automation,2023,49(10):26-34.  doi: 10.13272/j.issn.1671-251x.2022120024

基于暂态电流导数的煤矿直流配电线路无通道保护

doi: 10.13272/j.issn.1671-251x.2022120024
基金项目: 国家重点研发计划项目(2016YFB0900600); 国家自然科学基金项目(51507135);陕西省自然科学基础研究计划项目(2014JM7255)。
详细信息
    作者简介:

    魏朝阳 (1993—),男,陕西咸阳人,讲师,硕士,研究方向为煤矿直流配电系统继电保护,E-mail:354026289@qq.com

  • 中图分类号: TD61

Non-communication protection of coal mine DC distribution lines based on transient current derivation

  • 摘要: 煤矿直流供配电线路故障电流具有幅值大、上升率高的特征,是威胁供电系统安全稳定的重要因素。利用直流配电系统电气特征实现故障识别的方法较少考虑保护设备的实际情况,难以处理设备误差及扰动,不满足继电保护的可靠性要求;而基于电力电子变换器的主动保护方法则较少利用故障电气量信息,仅依靠设备动作特性实现故障切除,往往不能满足继电保护的速动性要求。针对上述问题,提出一种基于暂态电流导数的煤矿直流配电线路无通道保护方案。将直流侧并联电容放电电流的二阶导数作为保护加速判据,若满足加速判据则启动加速动作,若不满足加速判据则按照断路器既定延时动作。故障发生时,电流均指向故障点,则可利用功率流向的变化初步判断故障方向,构成无通道保护,使故障线路两端断路器加速跳开,从而缩短故障切除时间。仿真结果表明,在不同故障发生位置、过渡电阻及故障类型条件下,若加速动作能够有效启动,则基于暂态电流导数的煤矿直流配电线路无通道保护方案可快速切除故障,减少故障时间;若加速动作不能启动,保护方案也能按照既定延时配合实现故障类型和区段的确定并切除故障。

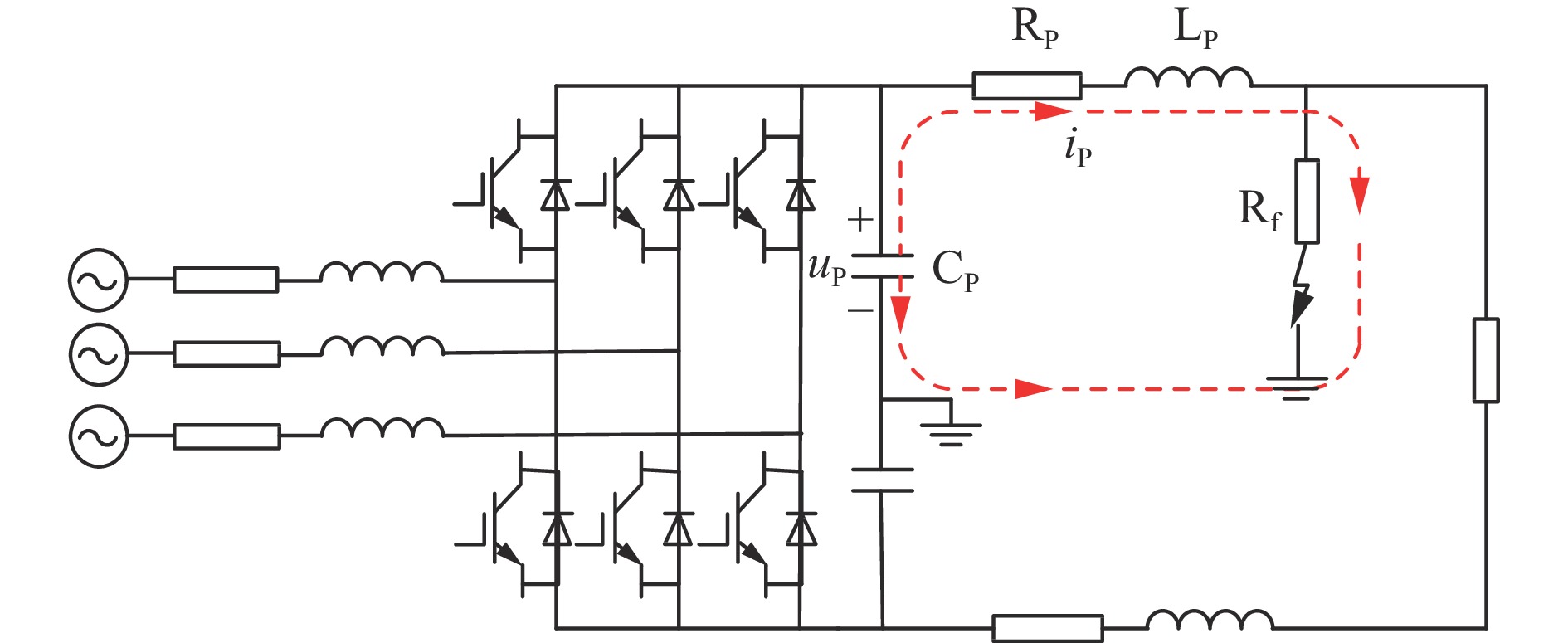

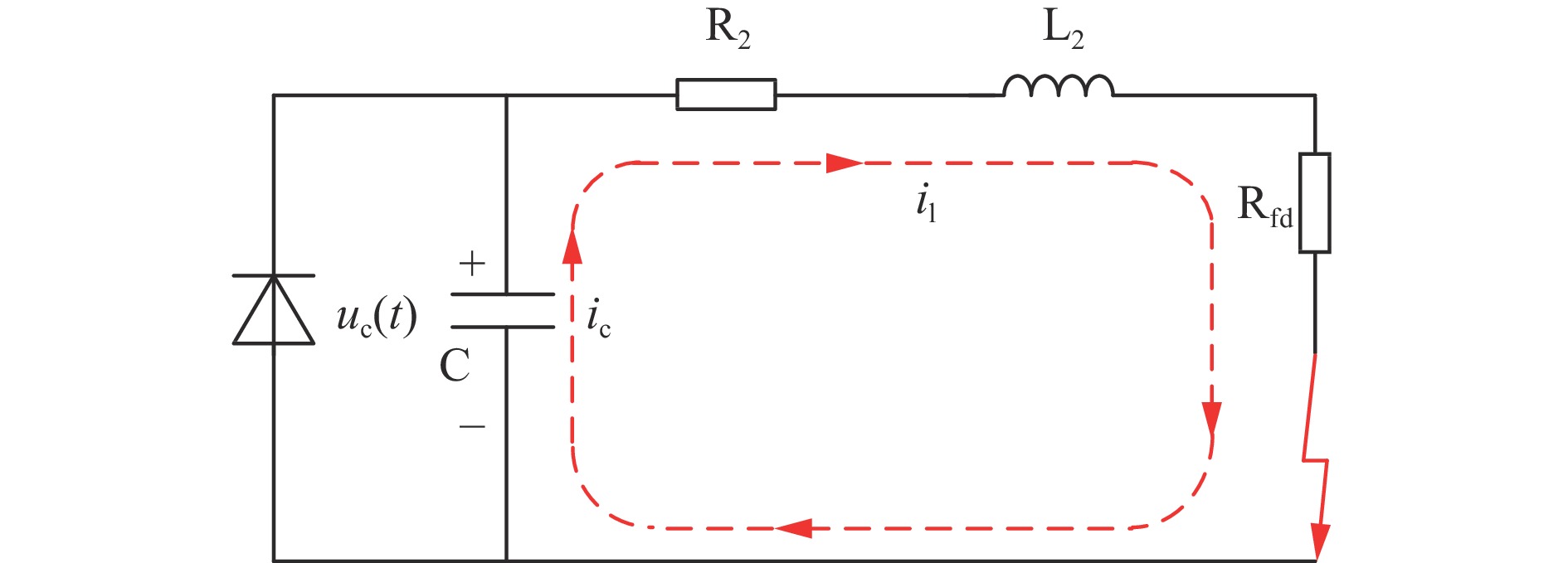

  • 图  1  直流配电系统单极接地故障时的等效电路

    Figure  1.  Equivalent circuit of DC distribution system with monopole to earth fault

    图  2  直流配电系统极间故障时的等效电路

    Figure  2.  Equivalent circuit of DC distribution system with pole to pole fault

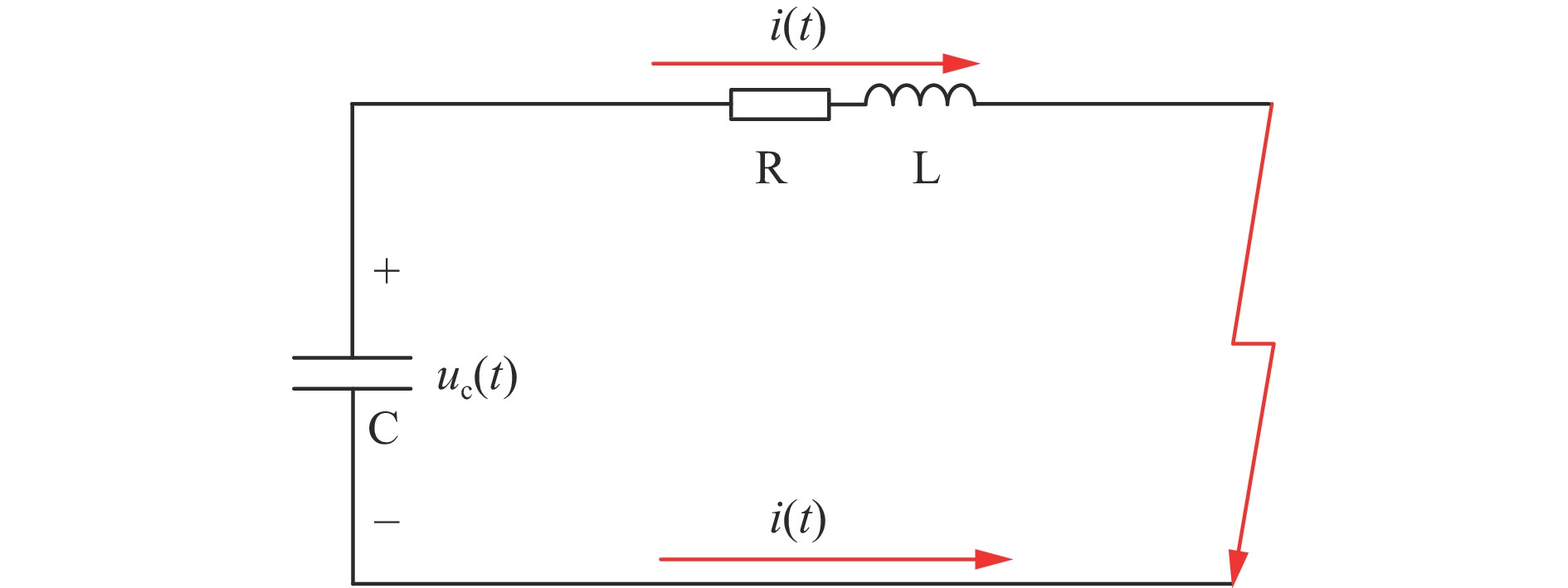

    图  3  直流配电系统简化电路

    Figure  3.  Simplified circuit of DC distribution system

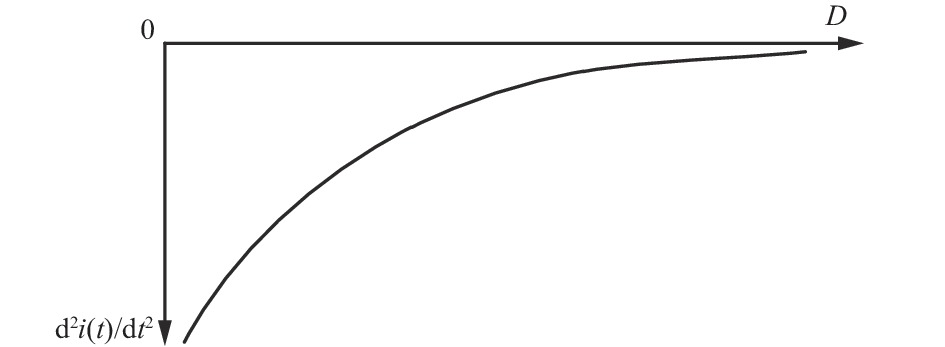

    图  4  故障位置与电容放电电流二阶导数的关系

    Figure  4.  Relationship between fault location and the second derivation of capacitance discharge current

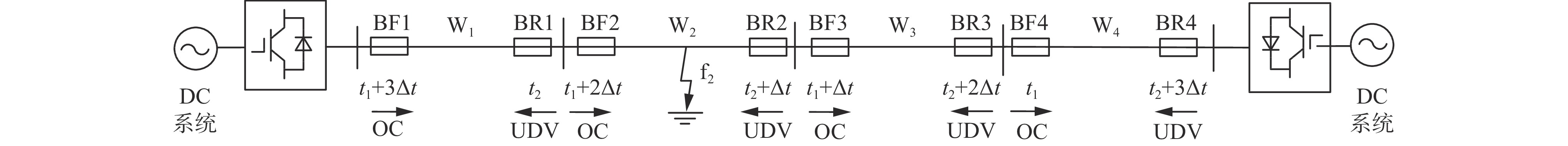

    图  5  双端供电型直流配电线路保护

    Figure  5.  Double end power supply type DC distribution line protection

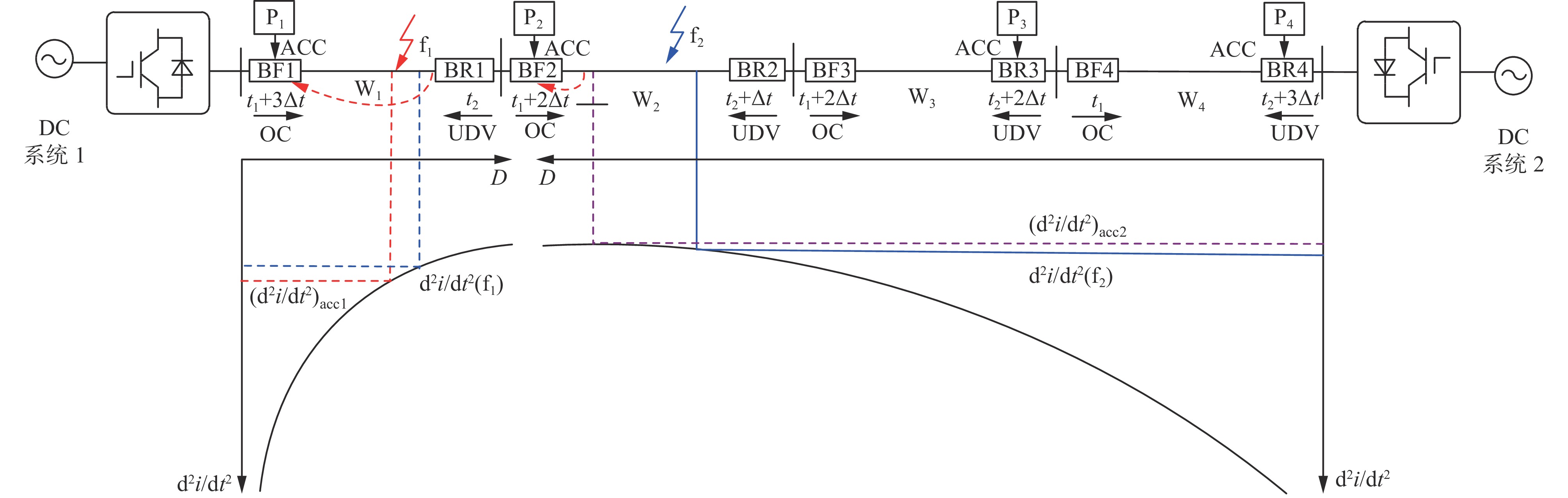

    图  6  双端直流配电线路无通道保护原理

    Figure  6.  The principle of non-communication protection in double end DC distribution network

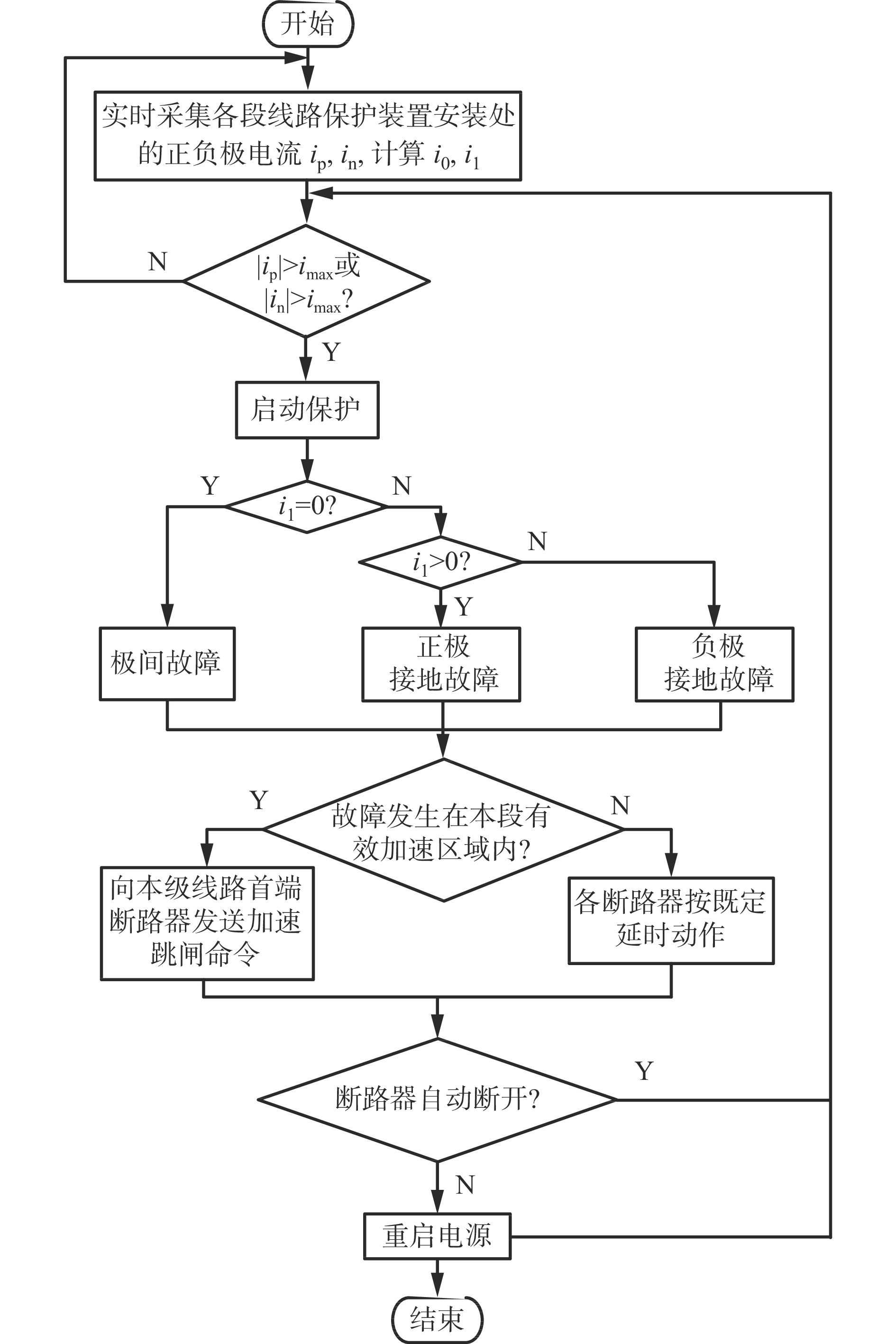

    图  7  直流配电线路无通道保护流程

    Figure  7.  Flow of non-communication protection of DC distribution line

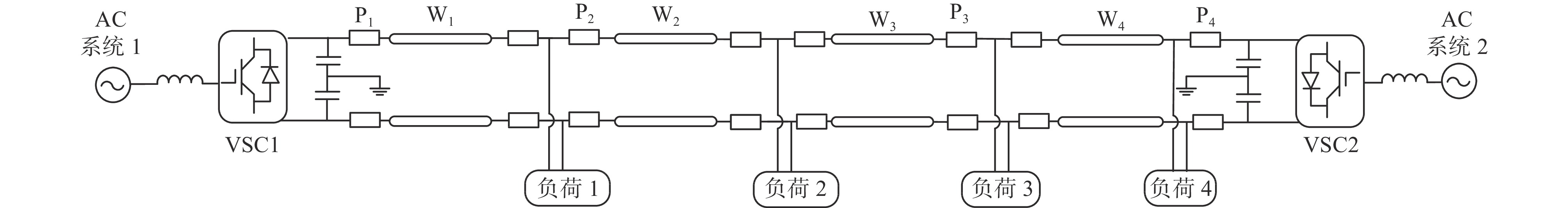

    图  8  双端±10 kV直流配电系统仿真模型

    Figure  8.  Simulation model of dual terminal ±10 kV DC distribution system

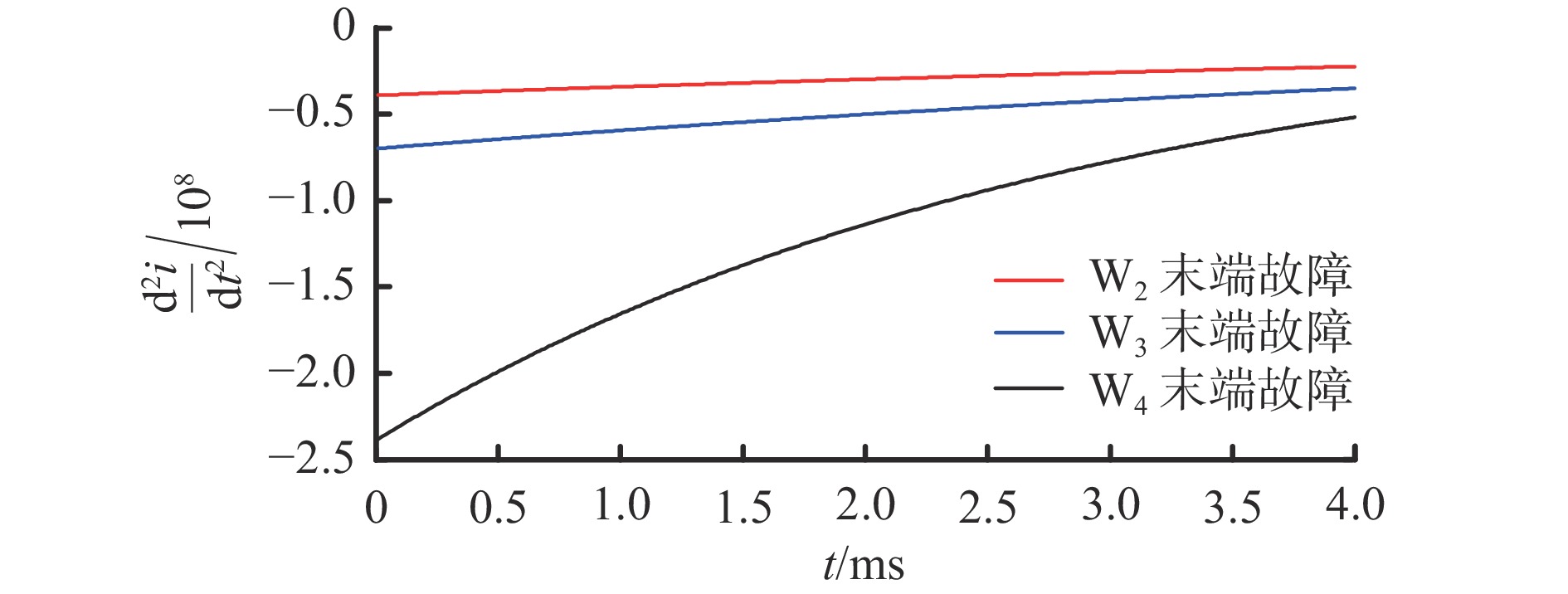

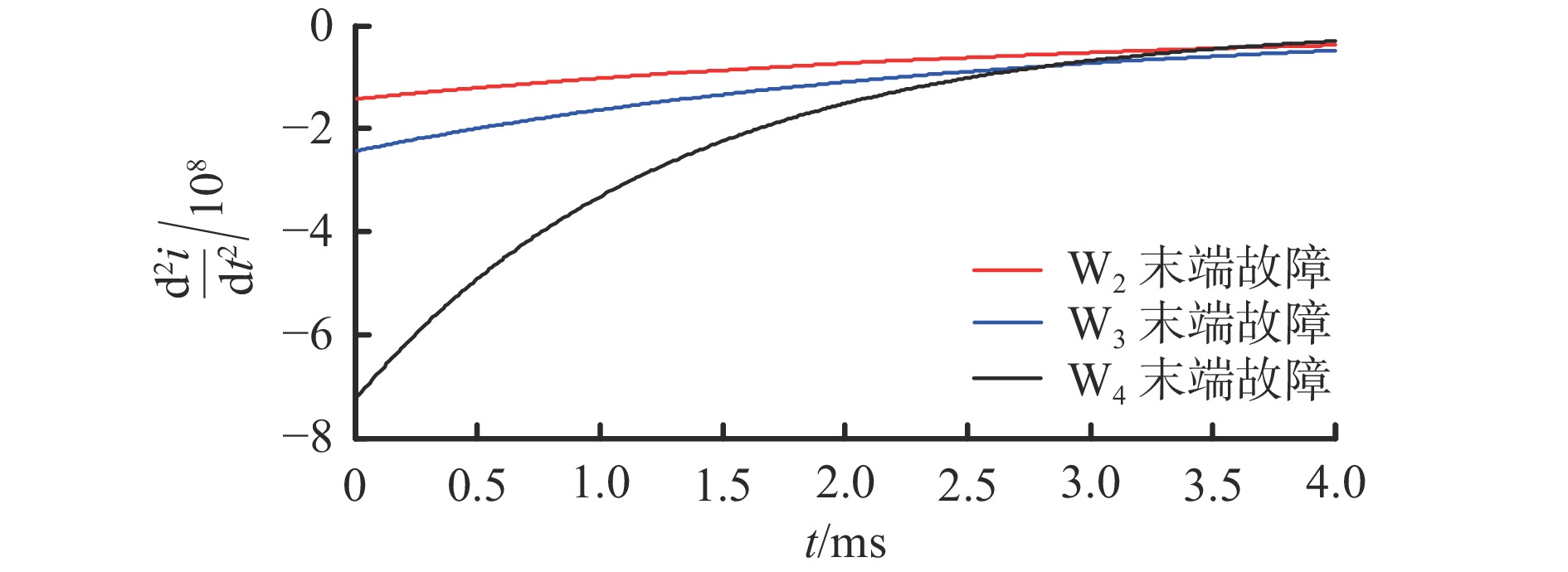

    图  9  线路末端极间故障时电容放电电流二阶导数变化曲线

    Figure  9.  Second derivative variation curves of capacitor discharge current during pole to pole fault at the line end

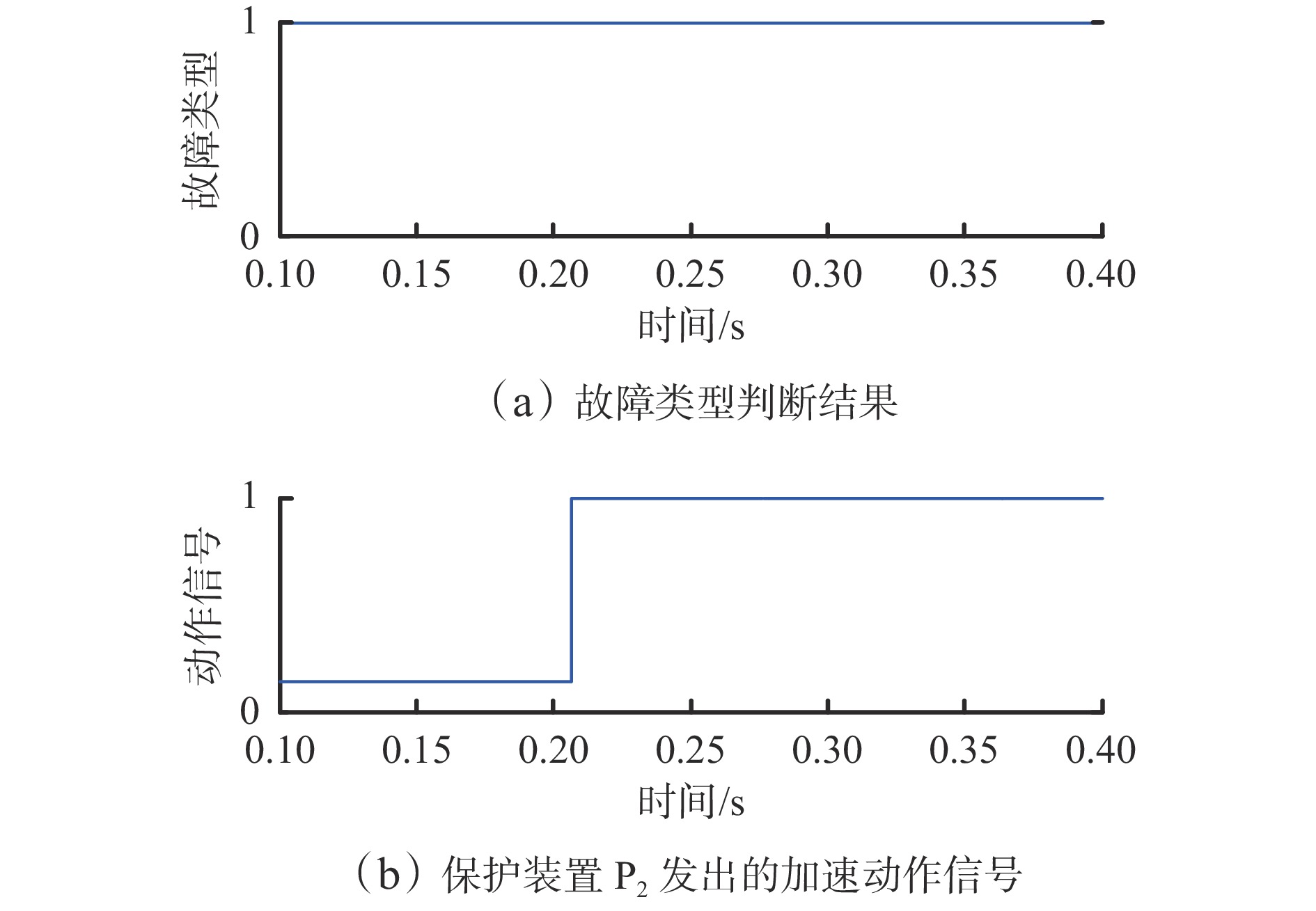

    图  10  极间故障仿真结果

    Figure  10.  Simulation results of pole to pole fault

    图  11  线路末端单极接地故障时电容电流二阶导数变化曲线

    Figure  11.  The second derivative variation curves of capacitor discharge current during monopole to earth fault at the line end

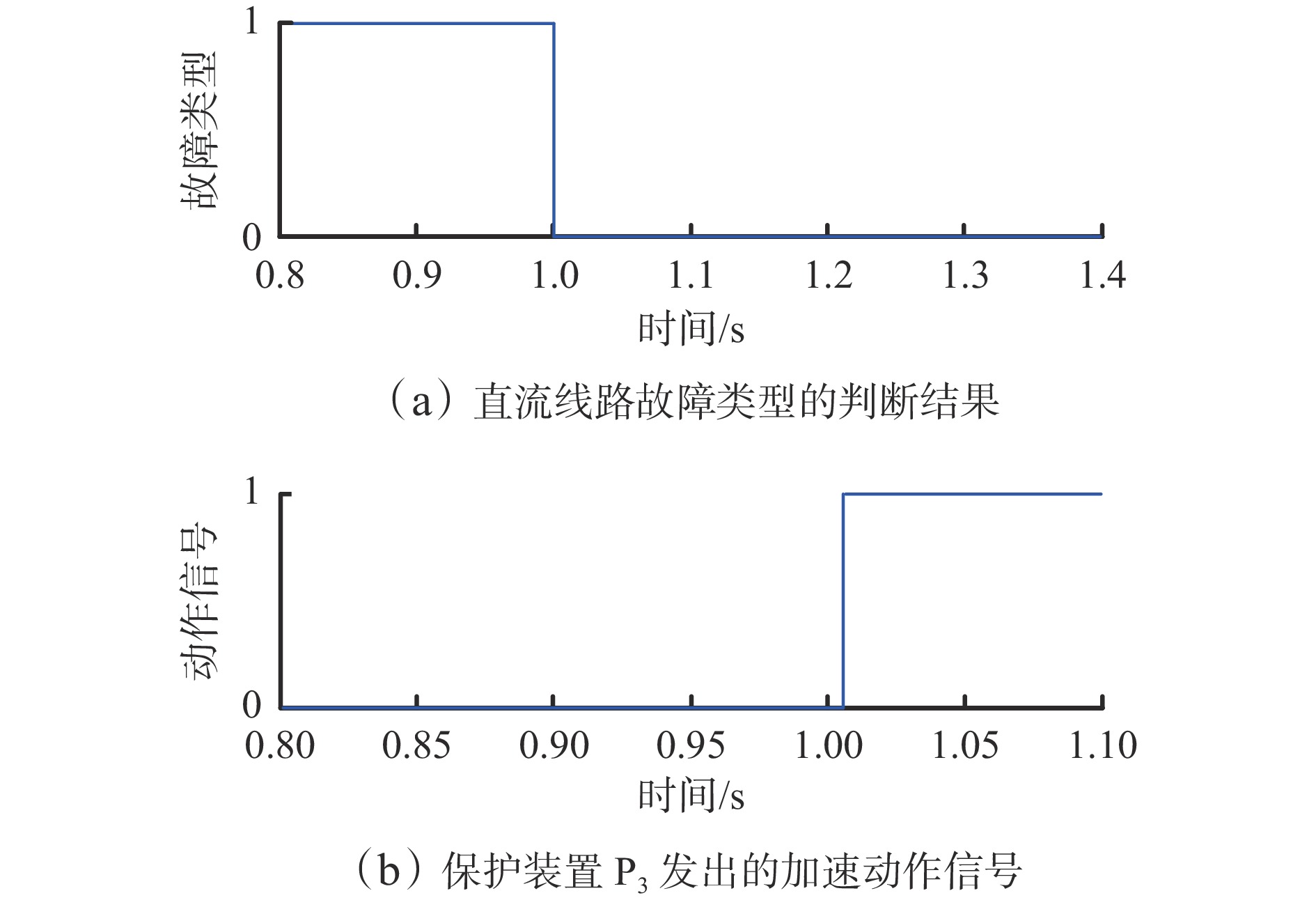

    图  12  单极接地故障仿真结果
